DCR-PC103E/PC104E/PC105/PC105E
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
COVER
COVER

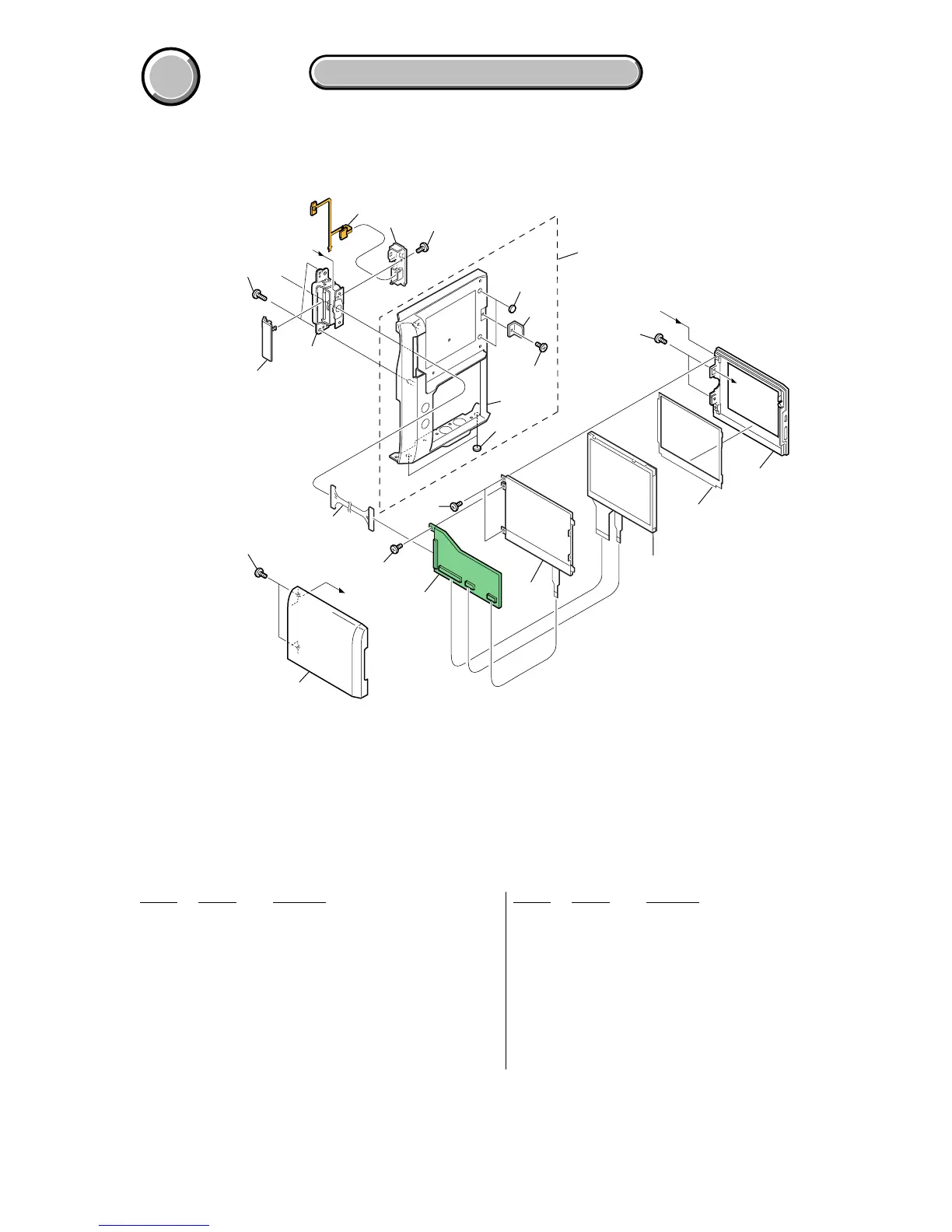

5-1-7. CABINET (R) SECTION-2
Ref. No. Part No. Description Ref. No. Part No. Description
301 3-082-532-11 CABINET (R), LCD (PC105E)
301 3-082-532-21 CABINET (R), LCD (PC105)
301 3-083-693-01 CABINET (R) (N), LCD (PC103E)
301 3-083-693-11 CABINET (R) (N), LCD (PC104E)
302 4-974-725-01 SCREW (M1.7), LOCK ACE, P2
303 A-7016-624-A PD-193 BOARD, COMPLETE
304 3-082-533-01 SHEET, PROTECTION, LCD PANEL
305 X-3953-358-1 CABINET (L) ASSY, LCD
306 X-3953-390-2 CABINET (R) ASSY
307 3-082-536-01 CLAW, PANEL LOCK
308 3-082-519-01 FOOT (R), RUBBER
309 3-969-387-01 FOOT, RUBBER
310 1-962-115-11 HARNESS (PB-052)
311 3-082-535-01 COVER (BACK), HINGE
312 X-3953-359-1 HINGE ASSY, LCD
313 3-082-534-01 COVER (FRONT), HINGE
314 3-989-735-31 SCREW (M1.7), LOCK ACE, P2
315 A-7016-626-A FP-697 BOARD, COMPLETE
LCD901 8-753-052-41 ACX500DMM-1
ND901 1-477-759-11 BLOCK LIGHT GUIDE PLATE (2.5)
PD-193
B
A
B
A
ND901
ns
LCD901
304
305
302
303
302
301
302
310
309
313
312
302
308
302
307
306
314
311
315
302
