DCR-PC103E/PC104E/PC105/PC105E
Control switch block
(FK4400)
Be careful not to
break the claw.
9 Control switch block
(FK4400)
3 Control switch block
(FK4400) (24P)
8 Loud
speaker
4 MS shield sheet
(PC105/PC105E)
7 Claw
6 Remove soldering
from the two points
2 Peel off the Noise protection
cushion (FK) sheet.
Be careful not to break
the flexible board.
MS shield sheet
(PC105/PC105E)
Noise protection
cushion (FK)
Caution
Caution
Caution
Control switch block
(FK4400)
Loud
speaker
5 Two claws
1 Four screws
(M1.7
× 2.5),
lock ace, p2
Remove soldering
from the two points

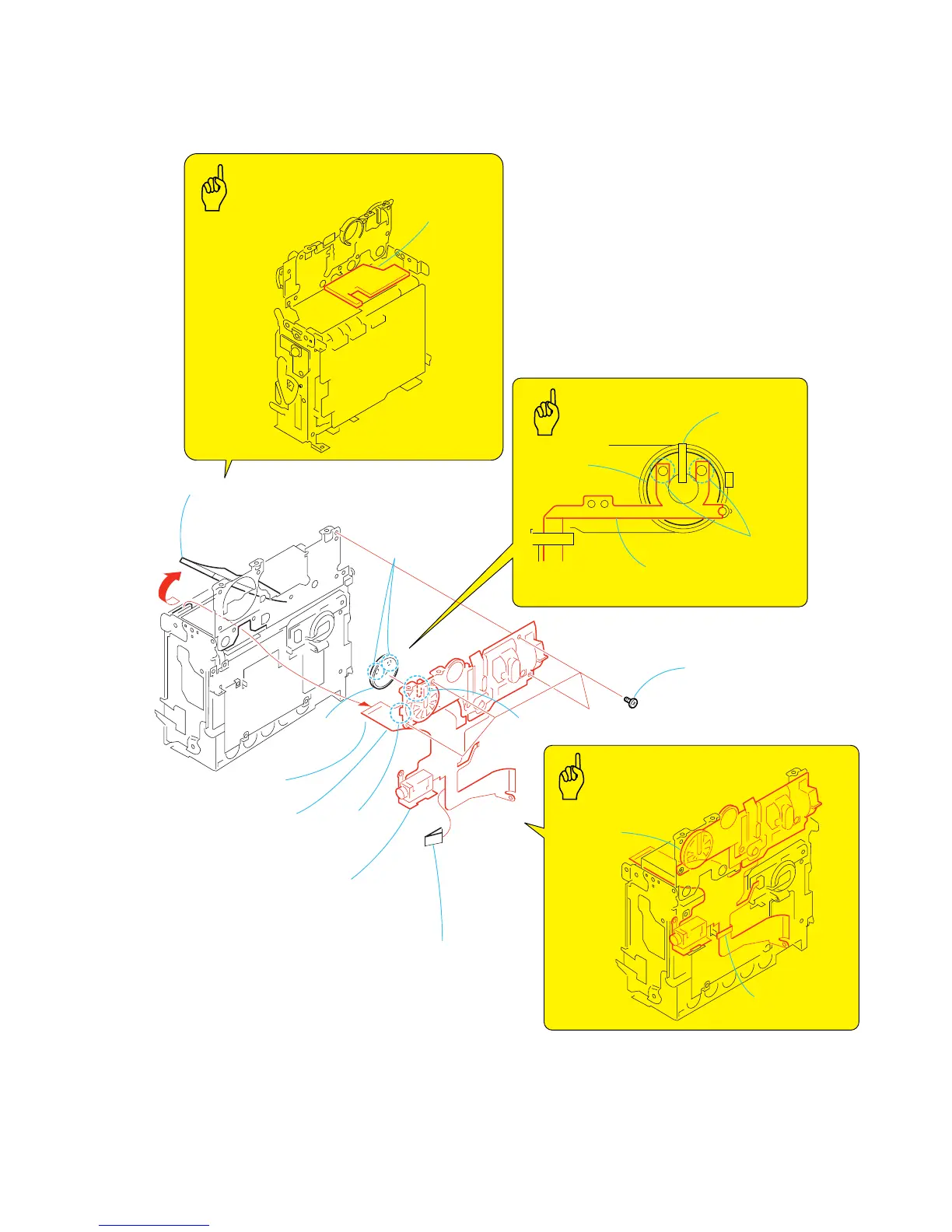

2-26. CONTROL SWITCH BLOCK (FK4400)
