Sony DCR-PC103E - Lens;Evf;St Section-1; Lens;Evf;St Section-2

2-13
DCR-PC103E/PC104E/PC105/PC105E

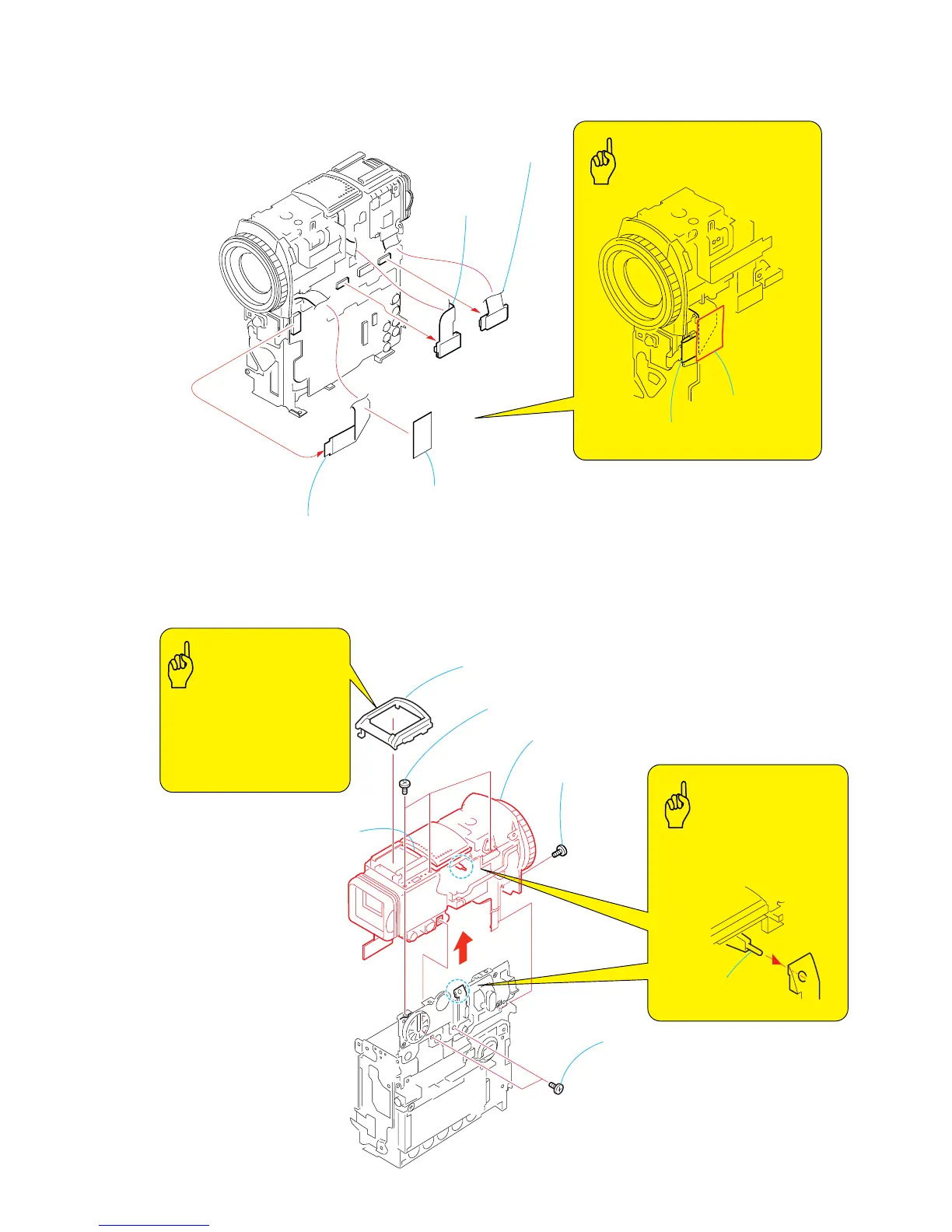

2-16. LENS/EVF/ST SECTION-1
Lens fixed sheet
4 VF-156 board
(60P)
3 CD-444 board
(40P)
1 Lens fixed sheet
2 flexible board
(from the Lens device)
Caution
flexible board
(from the Lens device)
2-17. LENS/EVF/ST SECTION-2
1 Screw
(M1.7
× 2.5),
lock ace, p2
Rubber of the
Mic unit
5 Lens/EVF/ST section
4 Three screws (M1.7 × 2.5),
lock ace, p2
2 Two screws
(M1.7
× 2.5),
lock ace, p2
Nightshot
switch
Caution
To attach the Lens/EVF/ST section,
align the nightshot switch position
as shown.
Caution
3 Cabinet (upper)
When installing the cabinet
(upper), insert the cabinet (upper)
in straight down so that the rubber
of the Mic Unit shoud not be
deformed.
