DCR-PC103E/PC104E/PC105/PC105E

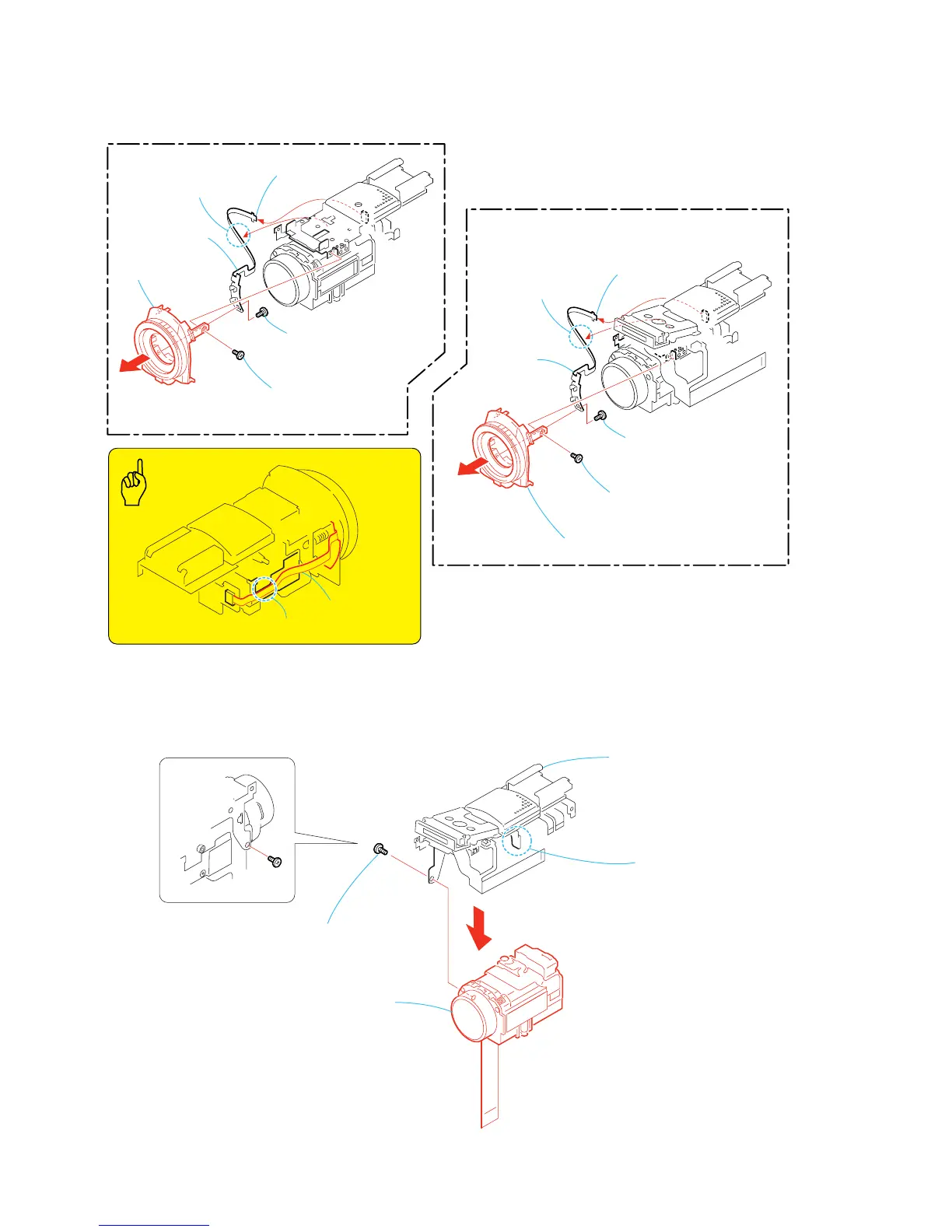

2-20. MF RING ASSEMBLY
2-21.LENS SECTION
5 FP-672 board
5 FP-672
board
3 Peel off the flexible
board that is attached
by adhesive agent.
Adhesive portion
2 FP-672 board
(6P)
FP-672 board
1 Screw
(M1.7
× 2.5),
lock ace, p2
4 Screw
(M1.7
× 2.5),
lock ace, p2
6 MF ring
assembly (N)
1 Screw
(M1.7
× 2.5),
lock ace, p2
4 Screw
(M1.7
× 2.5),
lock ace, p2
6 MF ring assembly
(PC103E/PC104E)
(PC105/PC105E)
2 FP-672 board
(6P)
3 Peel off the flexible
board that is attached
by adhesive agent.
Caution
2 Claw
4 Lens section
3 Stroboscope section
1 Tapping screw
(M1.7
× 4)
