DCR-PC103E/PC104E/PC105/PC105E
5-1. EXPLODED VIEWS
COVER
COVER
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST

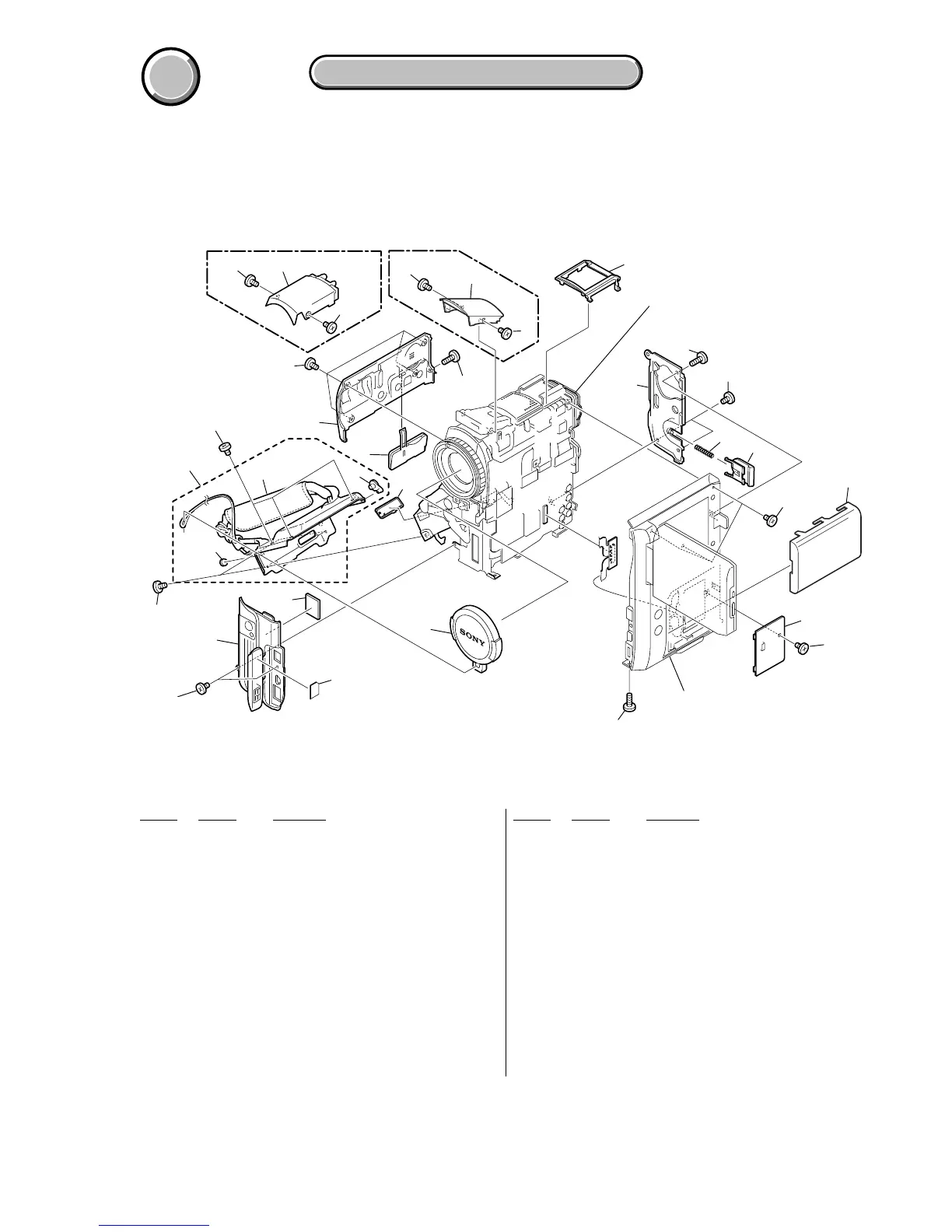

5-1-1. OVERALL SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
1 X-3953-477-1 CAP ASSY, LENS
2 4-974-725-01 SCREW (M1.7), LOCK ACE, P2
3 X-3953-361-1 CABINET (FRONT) ASSY (PC105/PC105E)
3 X-3953-399-1 CABINET (FRONT) ASSY (PC103E/PC104E)
4 X-3953-394-1 CABINET (G) ASSY (PC105/PC105E)
4 X-3953-400-1 CABINET (G) ASSY (PC103E/PC104E)
5 3-969-387-01 FOOT, RUBBER
6 3-082-504-01 COVER (HP), JACK
7 3-075-309-01 KNOB, EJECT
8 X-3953-392-1 COVER (L) ASSY, JACK
(PC104E/PC105/PC105E)
8 X-3953-398-1 COVER (L) ASSY, JACK (PC103E)
9 3-082-537-11 CABINET (L)
10 3-989-735-31 SCREW (M1.7), LOCK ACE, P2
11 3-082-522-01 CABINET (UPPER)
12 3-082-529-11 CABINET (REAR) (PC105/PC105E)
12 3-082-529-21 CABINET (REAR) (PC103E)
12 3-082-529-31 CABINET (REAR) (PC104E)
14 3-082-530-01 LOCK, BATTERY
15 3-082-552-01 COVER, BATTERY
16 3-082-525-01 LID, CPC
17 X-3953-487-1 CABINET (UPPER) ASSY, ST
(PC105:CND,E,HK,JE,KR/PC105E)
17 X-3953-578-1 CABINET (UPPER) ASSY, ST (PC105:US)
18 3-078-893-11 0 PLATE +P2 MAIN EG GRIP M1.7
(PC105/PC105E)
19 X-3953-488-1 CABINET (N) ASSY,ST (PC103E/PC104E)
20 3-082-923-01 LABEL, DV (PC104E/PC105/PC105E)
20 3-082-923-11 LABEL, DV (PC103E)
21 3-084-515-01 SHEET (FRONT), LIGHT PROTECTOR
2
2
4
5
6
7
2
9
8
10
10
10
12
2
14
15
2
16
2
11
2
3
21
20
1
18
18
17
19
Cabinet (R) section-1
(See page 5-8)
ns
ns
VTR complete section
(See page 5-4)
(PC105/PC105E)
(PC103E/PC104E)
2
2
