2-10
DCR-PC103E/PC104E/PC105/PC105E

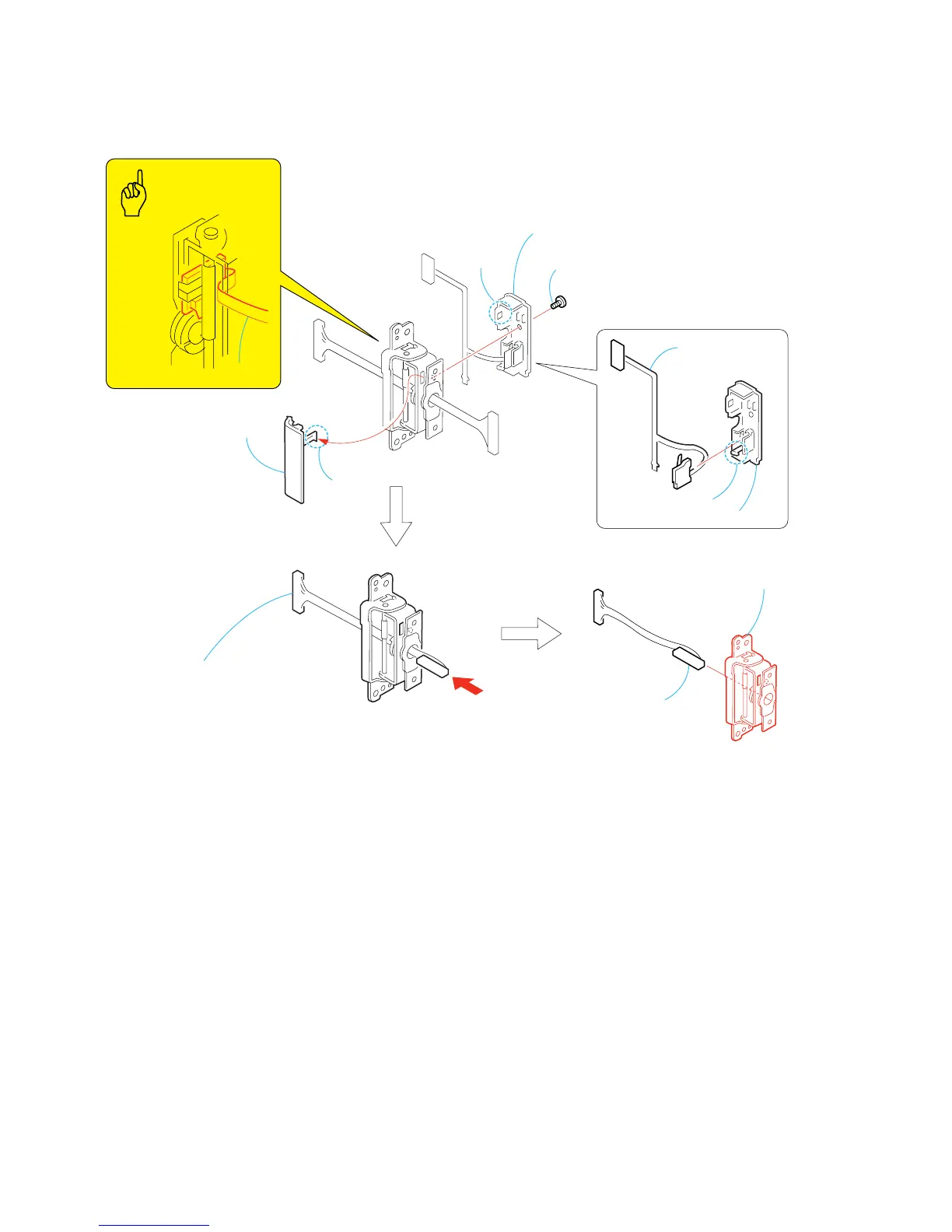

2-11. LCD HINGE ASSEMBLY
7
Hinge cover (back)
qa
LCD hinge
assembly
5
Hinge cover
(front)
3
Hinge cover (back),
FP-697 board
4
Claw
6
Claw
8
FP-697 board
0
Harness (PB-052)
Caution
FP-697 board
1
Screw
(M1.7
×
2.5),
lock ace, p2
9
Remove the harness (PB-052)
in the direction of the arrow.
2
Claw
