DCR-PC103E/PC104E/PC105/PC105E
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
COVER
COVER

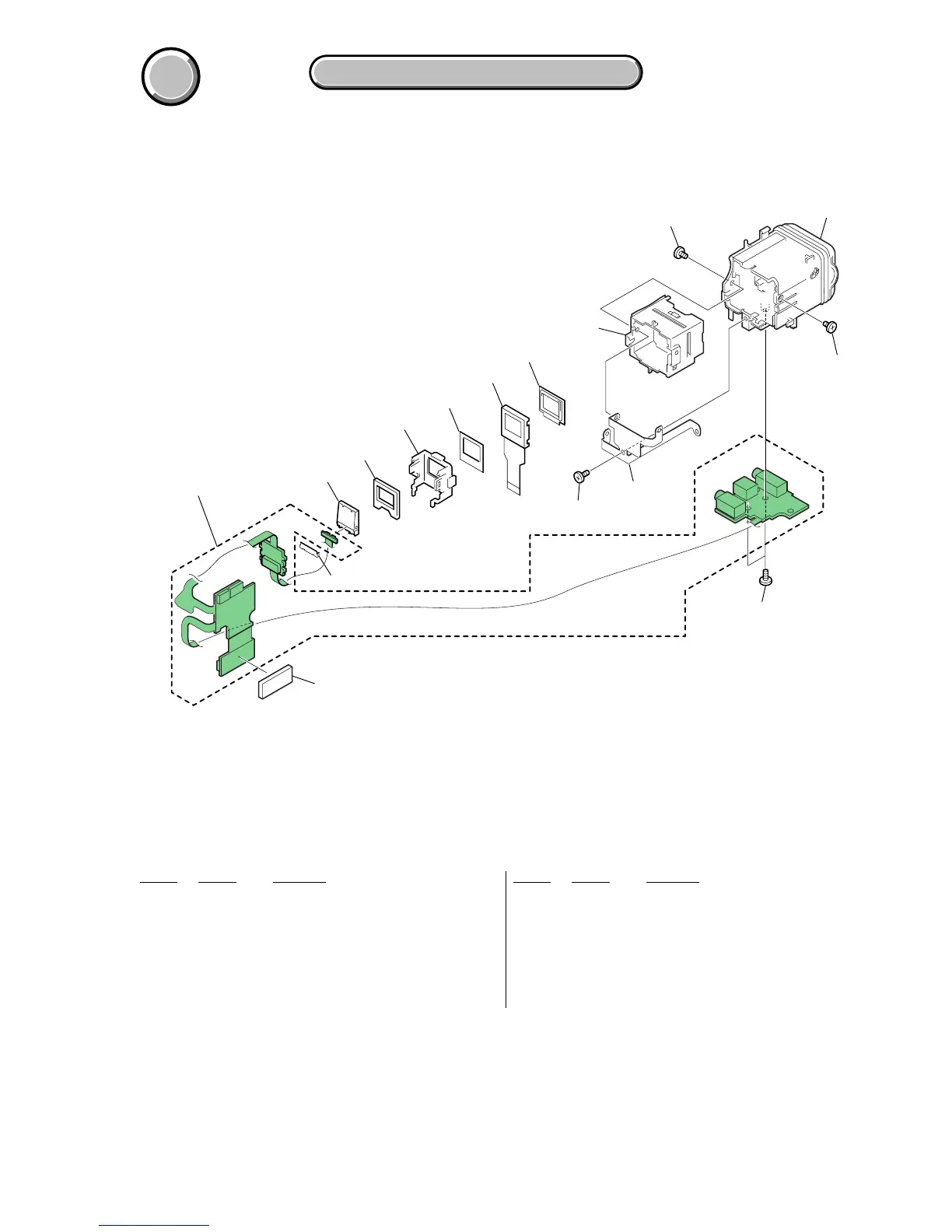

5-1-5. EVF SECTION
201 3-082-559-01 CUSHION, CONNECTOR RETAINER
202 A-7016-614-A VF-156 BOARD, COMPLETE
203 3-069-940-01 SHEET METAL, BL RETAINER
204 3-062-205-11 CUSHION (B), BL
205 3-075-319-01 BL UNIT
206 3-068-772-01 CUSHION (L), BL
* 207 3-062-767-01 CUSHION, LCD
208 3-713-791-71 SCREW (M1.7X4)
209 3-082-547-01 PLATE, FIXED, VF
210 X-3953-366-1 GUIDE ASSY, VF SLEEVE
211 4-974-725-01 SCREW (M1.7), LOCK ACE, P2
212 X-3953-365-2 VF ASSY
213 1-476-810-11 BLOCK(0.44), LIGHT GUIDE PLATE
LCD902 8-753-028-47 LCX032AN-5
Ref. No. Part No. Description Ref. No. Part No. Description
204
213
202
201
203
206
205
207
208
209
211
212
211
210
208
LCD902
