2-25
DCR-PC103E/PC104E/PC105/PC105E

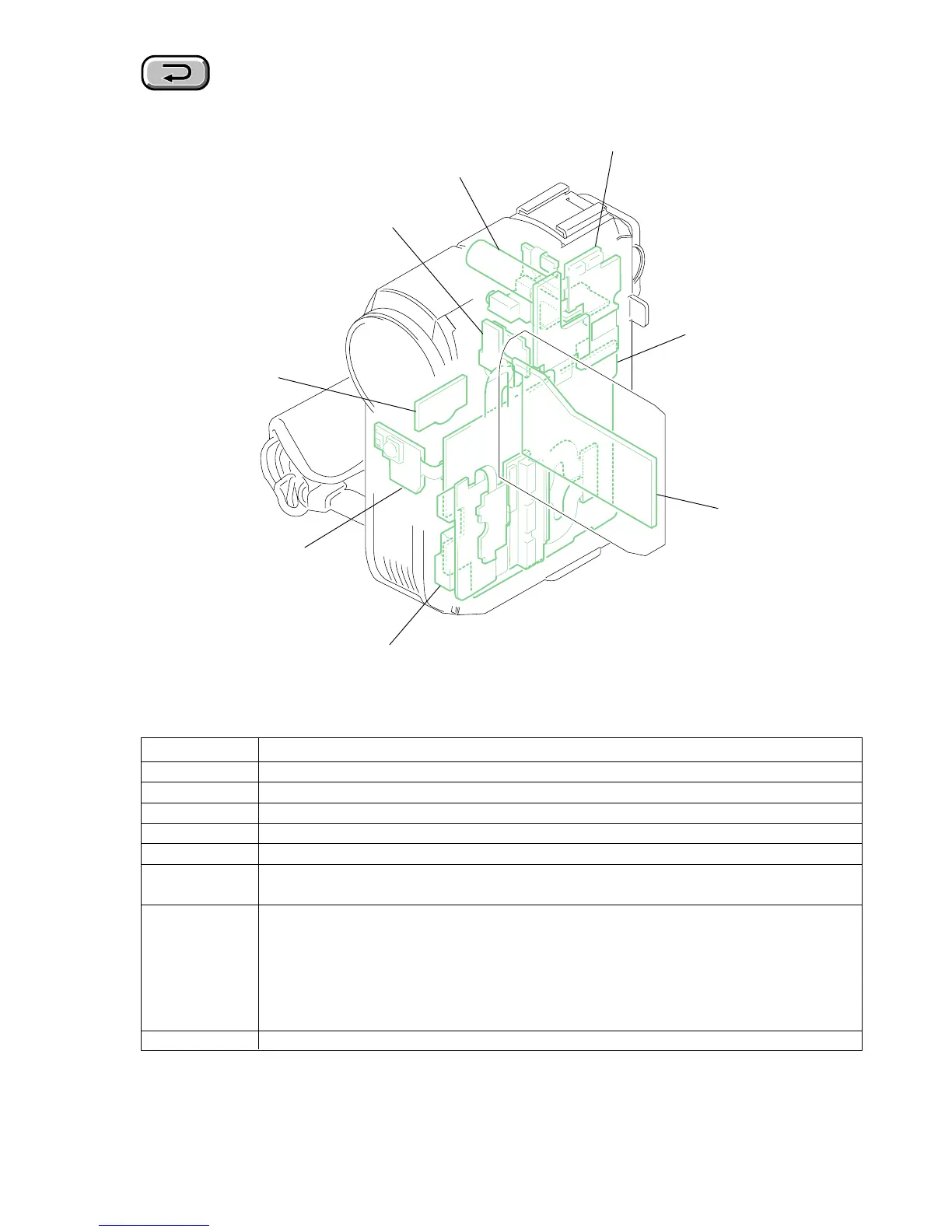

2-30. CIRCUIT BOARDS LOCATION
ST-084
(PC105/PC105E)
LI-070
NS-018
VC-319
VF-156
BJ-004
CD-444
PD-193
BJ-004
CD-444
LI-070
NS-018
PD-193
ST-084
(PC105/PC105E)
VC-319
VF-156
NAME FUNCTION
JACK
CCD IMAGER
BATTERY
SIRCS, NS
LCD RGB DRIVER
FLASH DRIVER
TIMING GENERATOR, S/H, AGC, A/D, CAMERA PROCESS, LENS DRIVE, MPEG MOVIE/
DV STILL/AUDIO DIGITAL STILL CONTROL, DIGITAL STILL CONTROL, HI CONTROL,
SDRAM/FLASH MEMORY, DV SIGNAL PROCESSOR, RF SIGNAL PROCESSOR, DV
INTERFACE, REC/PB AMP, VIDEO IN/OUT, AGC, CAPSTAN/DRUM/LD MOTOR DRIVE,
HI CONTROL, MECHA CONTROL, CAMERA CONTROL, EVF RGB DRIVER,TIMING
GENERATOR, AUDIO I/O,A/D,D/A CONVERTER, CHARGE SWITCH, DC/DC
CONVERTER, REGURATOR, CONNECTOR) PRINTED WIRING BOARD
MIC AMP, JACK
To Next Page
