5-4
DCR-PC103E/PC104E/PC105/PC105E
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
COVER
COVER

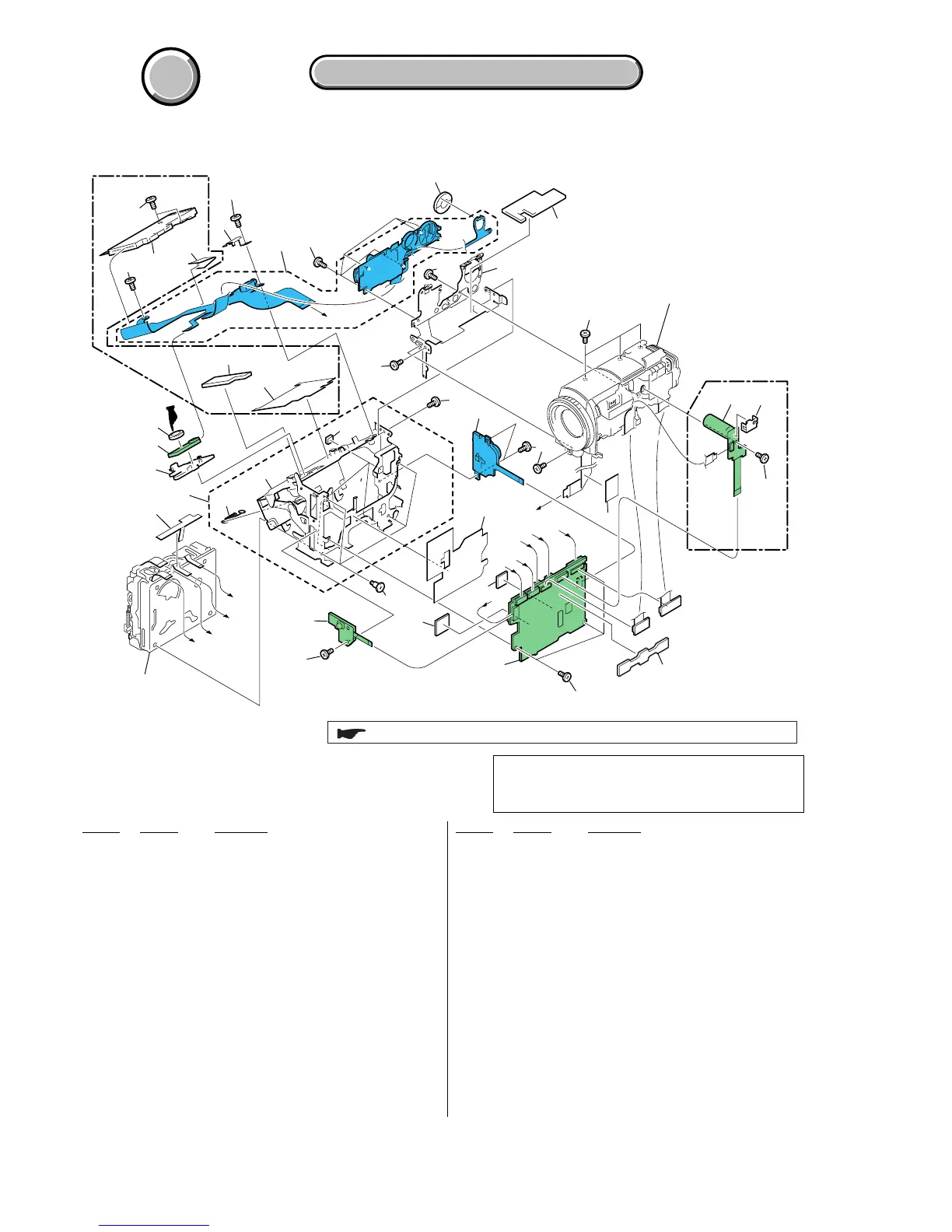

5-1-2. VTR COMPLETE SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
51 4-974-725-01 SCREW (M1.7), LOCK ACE, P2
52 1-477-820-11 SWITCH BLOCK, CONTROL (FK4400)
(PC105/PC105E)
52 1-477-820-21 SWITCH BLOCK, CONTROL (FK4400)
(PC103E/PC104E)
53 1-816-271-21 CONNECTOR, MEMORY STICK 10P
(PC105/PC105E)
55 A-7016-632-A LI-070 BOARD, COMPLETE
56 3-082-538-01 HOLDER, LI
57 X-3953-354-1 FRAME ASSY, G
58 3-954-730-01 SPRING, TENSION
59 3-975-921-01 SHEET, VIBRATION PROOF
60 A-7016-623-A NS-018 BOARD, COMPLETE
61 3-062-214-01 SCREW (M1.4X1.5)
62 3-082-580-01 SHEET, VC HEAT INSULATION
63 3-082-583-01 SPACER, VC
64 A-7016-987-A VC-319A BOARD, COMPLETE (PC105) (SERVICE)
64 A-7016-988-A VC-319B BOARD, COMPLETE (PC104E/PC105E)
(SERVICE)
64 A-7016-989-A VC-319C BOARD, COMPLETE (PC103E)
(SERVICE)
65 3-082-545-01 HOLDER, CONDENSER (PC105/PC105E)
66 A-7016-619-A ST-084 BOARD, COMPLETE (PC105/PC105E)
67 1-477-821-11 SWITCH BLOCK, CONTROL (PS4400)
(PC105/PC105E)
67 1-477-821-21 SWITCH BLOCK, CONTROL (PS4400)
(PC103E/PC104E)
68 X-3953-373-1 FRAME ASSY, FK
69 X-3953-460-1 HP RETAINER ASSY
70 3-083-938-01 SHEET, SHIELD, MS (PC105/PC105E)
71 3-083-908-01 CUSHION, MS (PC105/PC105E)
72 3-083-864-01 TAPE (Z), DF
SP901 1-825-261-11 LOUD SPEAKER (1.6CM)
CAUTION :
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
VC-
319
(PC105/PC105E)
(PC105/PC105E
)
LENS/EVF/ST section
(See page 5-5)
Mechanism deck
(See pages 5-10 to 5-12)
: BT6401 (Lithium battery) LI-070 board on the mount position. (See page 4-65)
SP901
ns
BT6401
ns
ns
59
61
51
62
63
64
67
60
51
51
51
65
51
51
66
51
51
53
55
71
56
58
51
57
72
52
51
51
51
68
69
70
A
B
C
D
A
B
C
D
E
F
F
E
ns
ns
ns
