Sony DCR-PC103E - External Connector (Hot Shoe)

2-18
DCR-PC103E/PC104E/PC105/PC105E

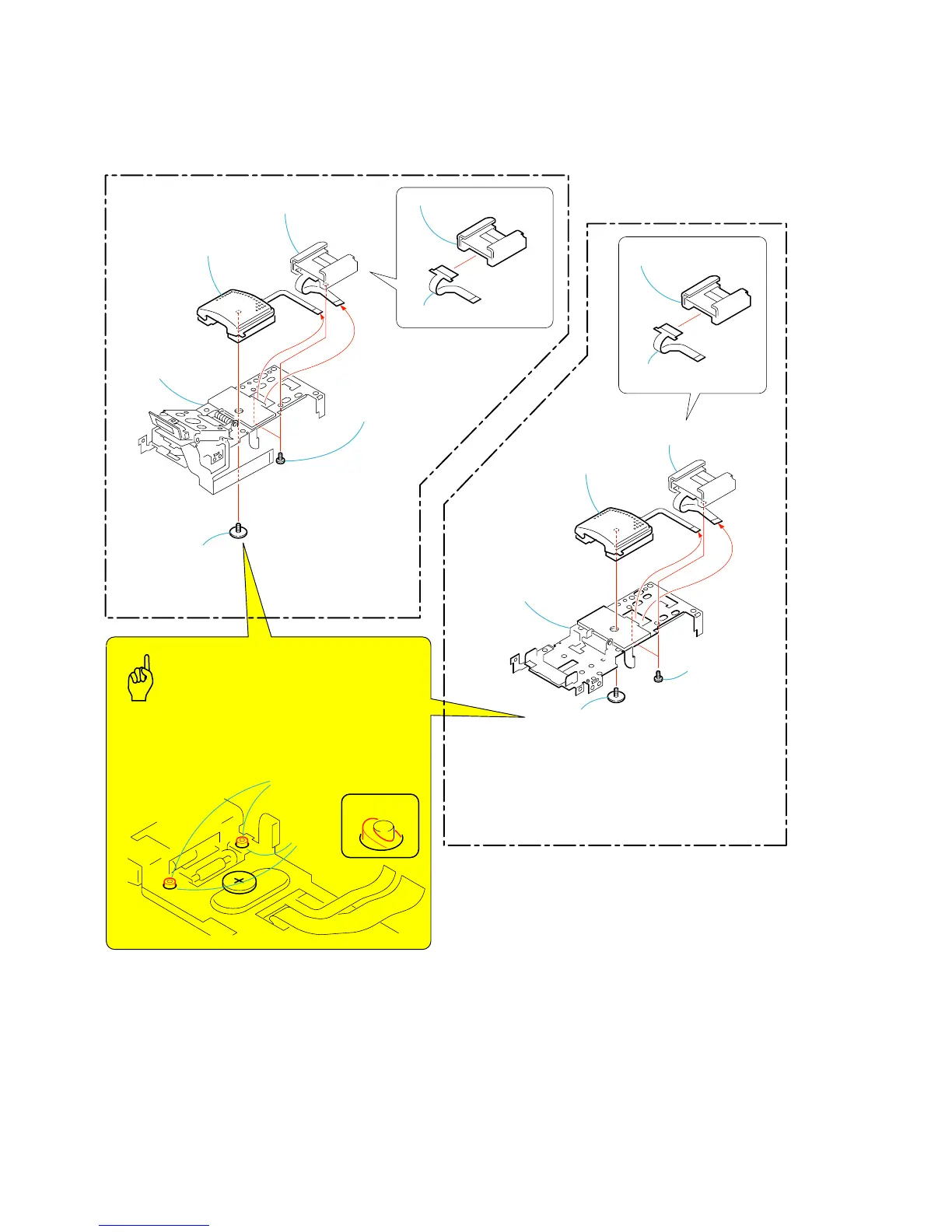

2-23. EXTERNAL CONNECTOR (HOT SHOE)
Caution
Hole of the
FK frame
assembly
3 Special tapping
screw
(M1.7
× 5.5)
5 Stroboscope
section, ST frame
assembly
5 ST frame
assembly
NG
2 External connector (hot shoe),
FP-671 flexible board
7 External connector
(hot shoe)
6 FP-671 flexible board
4 Mic unit
1 Two screws
(M1.7
× 2.5),
lock ace, p2 (black)
3 Special tapping
screw
(M1.7
× 5.5)
2 External connector (hot shoe),
FP-671 flexible board
7 External connector
(hot shoe)
6 FP-671 flexible board
4 Mic unit
1 Two screws
(M1.7
× 2.5),
lock ace, p2
(black)
(PC103E/PC104E)
(PC105/PC105E)
When installing the Mic unit, align and insert the rubber
protrusions of the Mic unit into the hole of the FK frame
assembly so that the Mic unit made of rubber should
not be deformed.
Rubber protrusions
of the Mic unit
