Sony MVS-3000 System User Manual

85
Basic Procedure for Wipe Settings
Chapter 5 Wipes
When Pattern is selected
a) “Wipe Pattern List” (1 p. 264).
You can also select the pattern in the Matte Adjust
menu by pressing [Mix Pattern Select] and selecting
the pattern in the Mix Ptn Select menu (1154.2).
Press the desired pattern (1 to 24) to select it, and set
the Size and Soft parameters.
5 If you selected Pattern in step 4, if required, the
following modifiers can be added.
If a wipe mix was set, skip to step 6.
When turning [Position] on and setting the pattern
position
a) 1 p. 85.
When turning [Multi] on and using replications of
the same pattern
a) 1 p. 87.
When turning [Aspect] on and setting the aspect
ratio of the pattern
a) 1 p. 86.
When turning [Angle] on in the <Rotation> group
and slanting the pattern
a) 1 p. 86.
When turning [Speed] on in the <Rotation> group
and rotating the pattern at a constant rate
a) 1 p. 86.
6 To adjust colors 1 and 2, turn on [Color1] or [Color2]
respectively, then adjust the following parameters.
7 To interchange color 1 and color 2, press the [Color
Invert] button, turning it on.

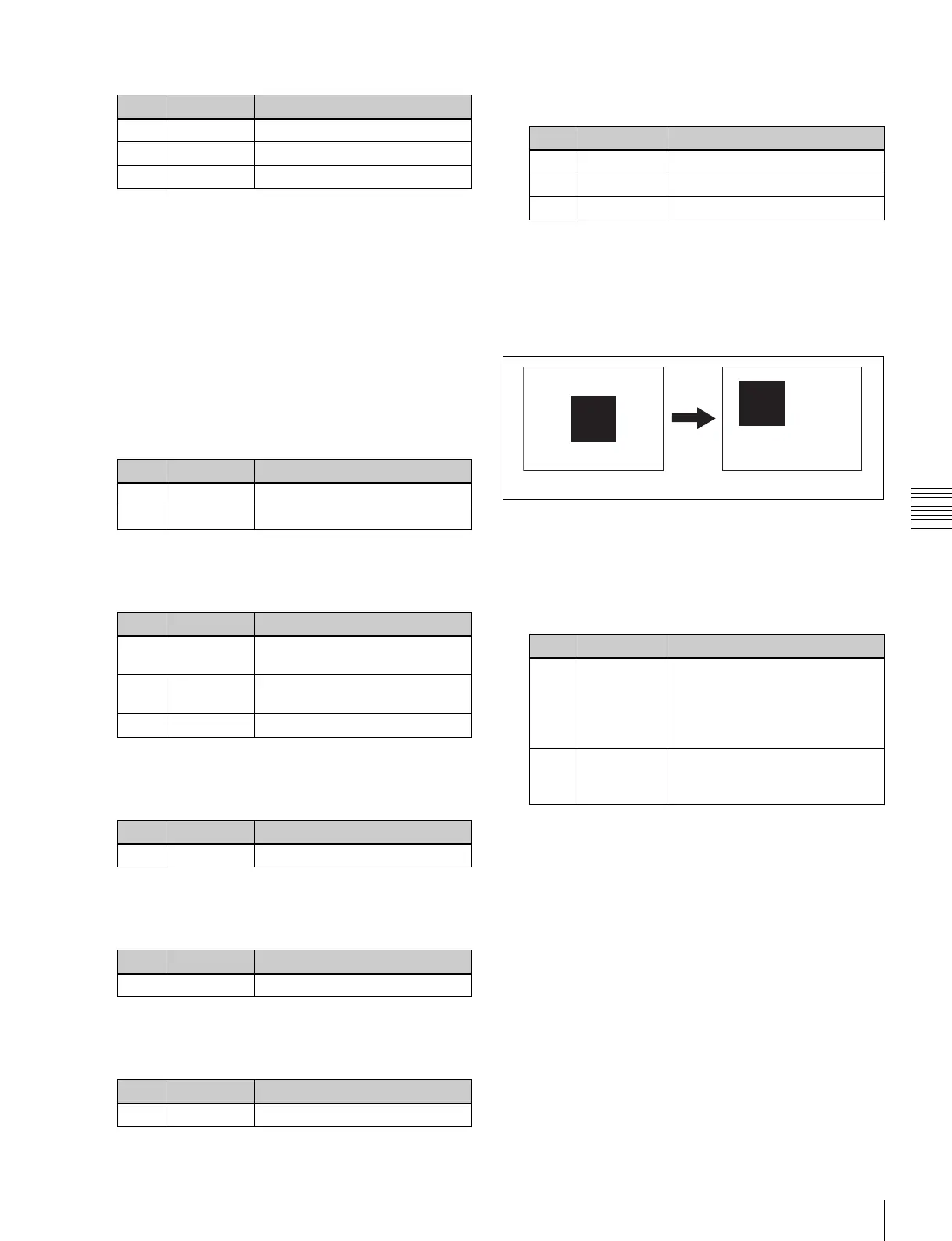

Setting the wipe position (Positioner)
Move the pattern to a desired position.
1 Open the M/E-1 >Wipe >Main Modify menu (1155).
2 Press [Position] in the <Position> group, turning it on.
3 Set the following parameters.
To return the pattern position to the center of the
screen
In the <Position> group, press [Center].
To move the pattern from its current position to
the center through the course of a transition
In the <Position> group, press [Auto Center], turning it on.
To set the wipe position using the trackball
You can also set the wipe position using the trackball in the
device control block.
1 Press the [M/E1] button in the device control block,
turning it on.
The buttons in the device control block are assigned to
the wipe position setting as follows.
No. Parameter Adjustment
1 Size Pattern size
2 Soft Edge softness
3 Pattern Pattern number
a)
No. Parameter Adjustment
1 Position H Horizontal position
a)
2 Position V Vertical position
a)
No. Parameter Adjustment
1 H Multi Number of repetitions of pattern
horizontally
2 V Multi Number of repetitions of pattern
vertically
3 Invert Type Replication layout
a)
No. Parameter Adjustment
1 Aspect Aspect ratio
a)
No. Parameter Adjustment
1 Angle Rotation angle of pattern
a)
No. Parameter Adjustment
1 Speed Rotation speed of pattern
a)
No. Parameter Adjustment
1 Luminance Luminance
2 Saturation Saturation
3Hue Hue
No. Parameter Adjustment
1 Position H Horizontal position
• Negative values move to the
left.
• Positive values move to the
right.
2 Position V Vertical position
• Negative values move down.
• Positive values move up.
Positioner Off Positioner On
