11

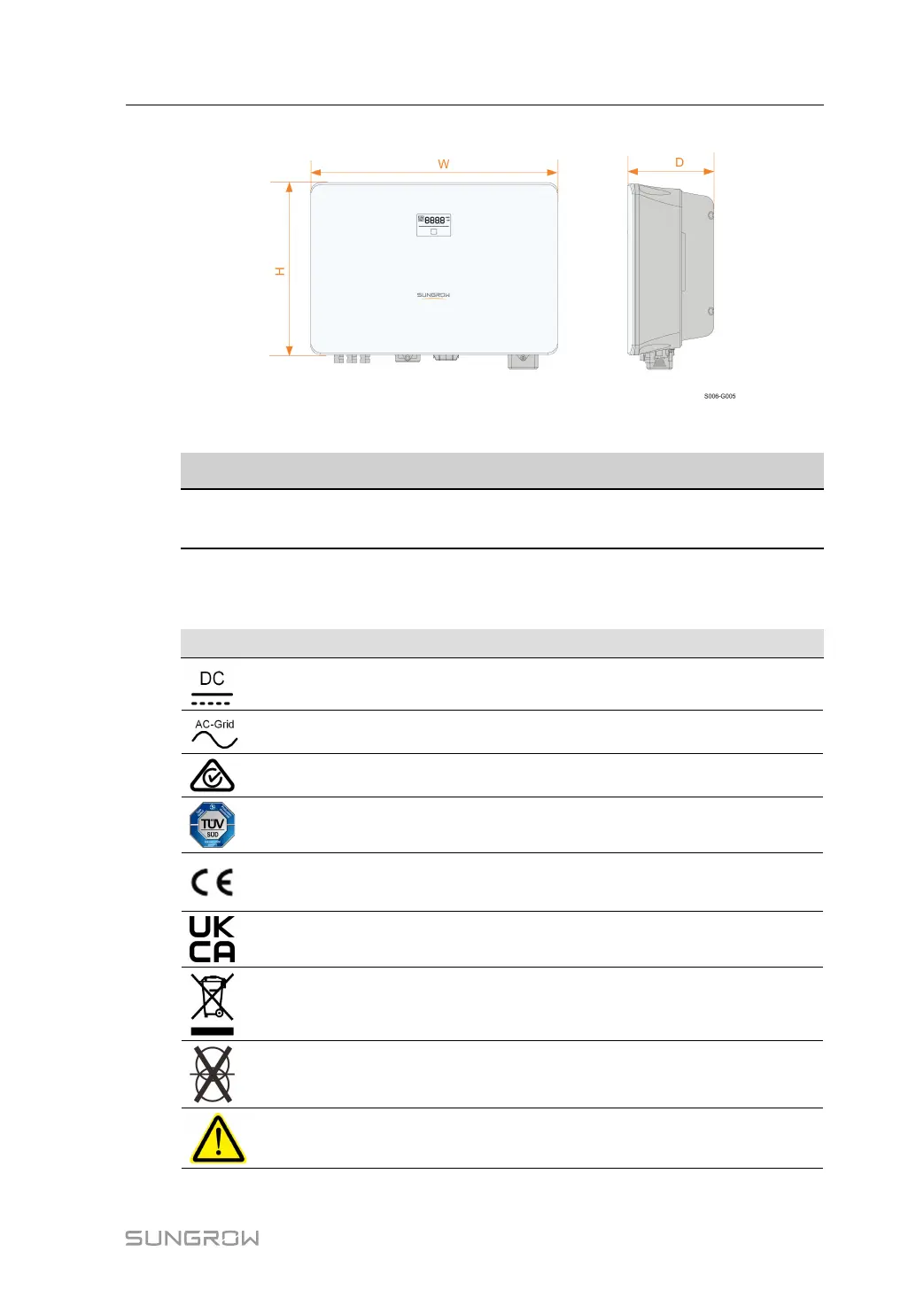

figure 2-3 Dimensions of the Inverter
Inverter Model W (mm) H (mm) D (mm)
SG5.0RS-ADA, SG8.0RS, SG9.0RS,
SG10RS
490 340 170
2.3 Symbols on Product
Symbol Explanation
Parameters on the DC side.
Parameters on the AC on-grid side.
Regulatory compliance mark.
TÜV mark of conformity.
CE mark of conformity.
EU/EEA Importer.
UKCA mark of conformity.
Do not dispose of the inverter together with household waste.
The inverter does not have a transformer.
Disconnect the inverter from all the external power sources be-
fore maintenance!
User Manual 2 Product Description
