49

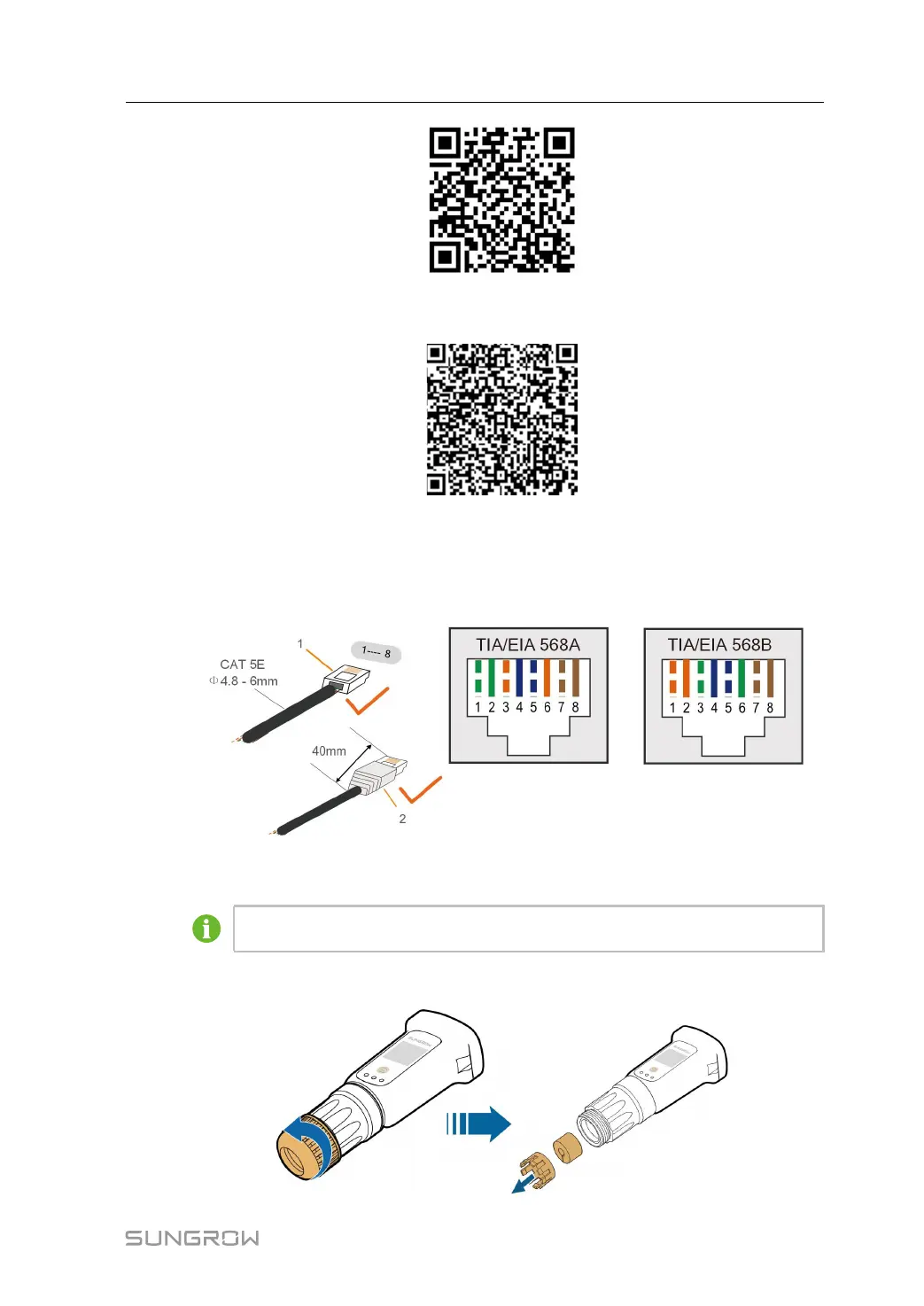

For more information about WiNet-S2, please scan the following QR code to view the quick
guide.
5.7.1 Ethernet Communication
step 1 (Optional) Strip the insulation layer of the communication cable with an Ethernet wire strip-
per, and lead the corresponding signal cables out. Insert the stripped communication cable
into the RJ45 plug in the correct order, and crimp it with a crimper.
1: RJ45 plug 2: Protective cap
Skip this step if a standard network cable with RJ45 plug is prepared.
step 2 Unscrew the swivel nut from the communication module and take out the inner sealing ring.
User Manual 5 Electrical Connection

Sungrow SG10RS Specifications

General

Rated Power	10 kW
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. Efficiency	98.6%
Protection Rating	IP65
Start Voltage	180 V
Rated AC Output Power	10 kW
Max. AC Output Power	11 kW
Rated Output Voltage	230 V
Operating Temperature Range	-25°C to 60°C
Topology	Transformerless
Cooling Method	Natural Convection
Maximum Power Output	11 kW
Maximum Input Current	25 A
MPPT Voltage Range	160-1000 V
Max. DC Input Power	15 kW
AC Voltage Range	180-280 V
Humidity Range	0-100%
Communication	RS485
