Sungrow SG10RS User Manual

37

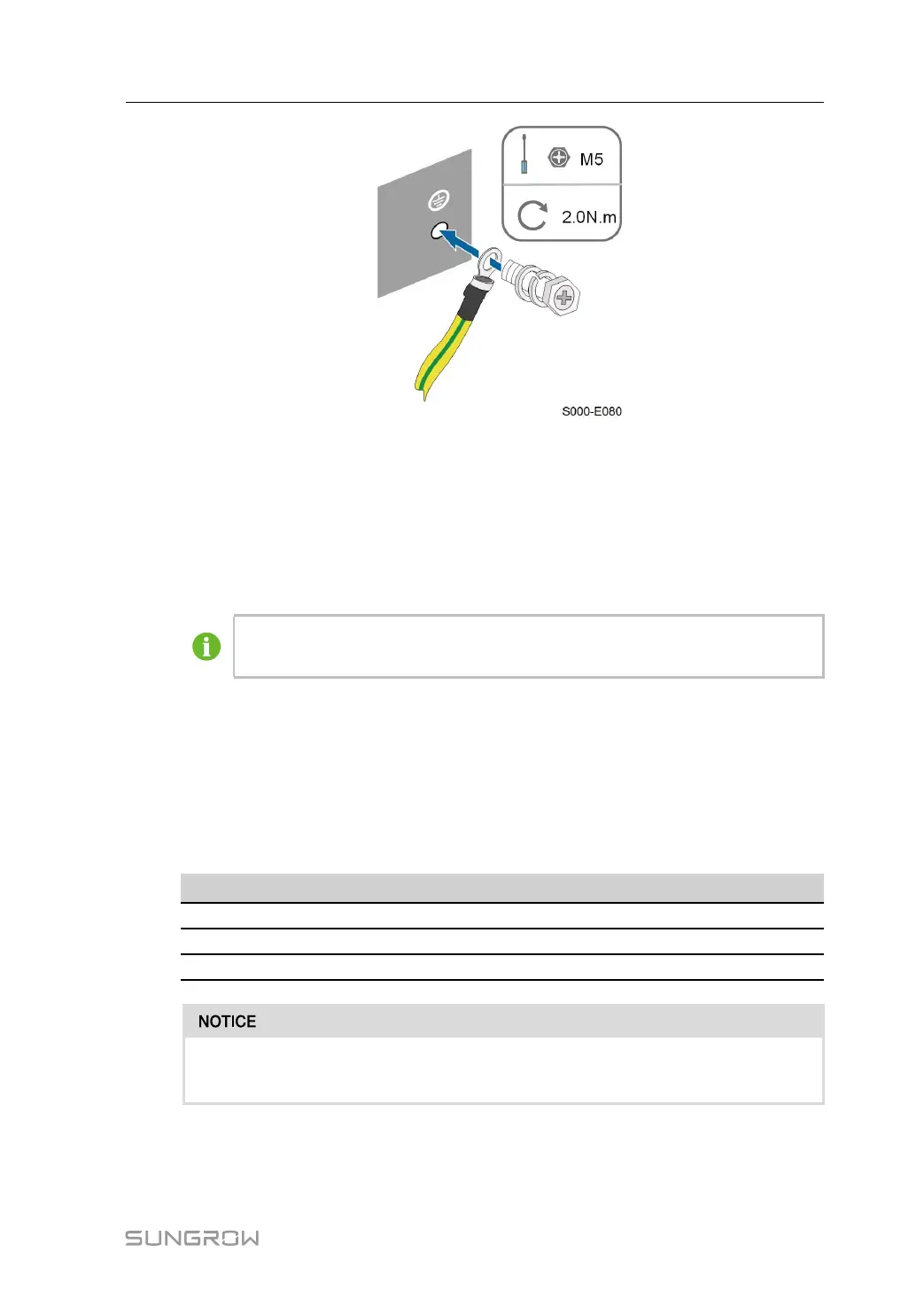

step 3 Apply paint to the grounding terminal to ensure corrosion resistance.
- - End
5.5 AC Cable Connection
5.5.1 AC Side Requirements
Only with the permission of the local grid department, the inverter can be con-
nected to the grid.
Before connecting the inverter to the grid, ensure the grid voltage and frequency comply with
requirements, for which, refer to "Technical Date". Otherwise, contact the electric power
company for help.
AC Circuit Breaker
An independent two-pole circuit breaker must be installed on the output side of the inverter
to ensure safe disconnection from the grid. The recommended specifications are as follows.
Inverter Model
Recommended Specification
SG5.0RS-ADA 32 A
SG8.0RS/SG9.0RS 50A
SG10RS 63 A
Testing to AS/NNZS 4777.2:2020 Section for multiple phase combinations has not
been conducted.
User Manual 5 Electrical Connection

Sungrow SG10RS Specifications

General

Rated Power	10 kW
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. Efficiency	98.6%
Protection Rating	IP65
Start Voltage	180 V
Rated AC Output Power	10 kW
Max. AC Output Power	11 kW
Rated Output Voltage	230 V
Operating Temperature Range	-25°C to 60°C
Topology	Transformerless
Cooling Method	Natural Convection
Maximum Power Output	11 kW
Maximum Input Current	25 A
MPPT Voltage Range	160-1000 V
Max. DC Input Power	15 kW
AC Voltage Range	180-280 V
Humidity Range	0-100%
Communication	RS485
