Sungrow SG10RS User Manual

86
7.10.1 System Parameters
Tap Settings→System Parameters to enter the corresponding interface, as shown in the
following figure.

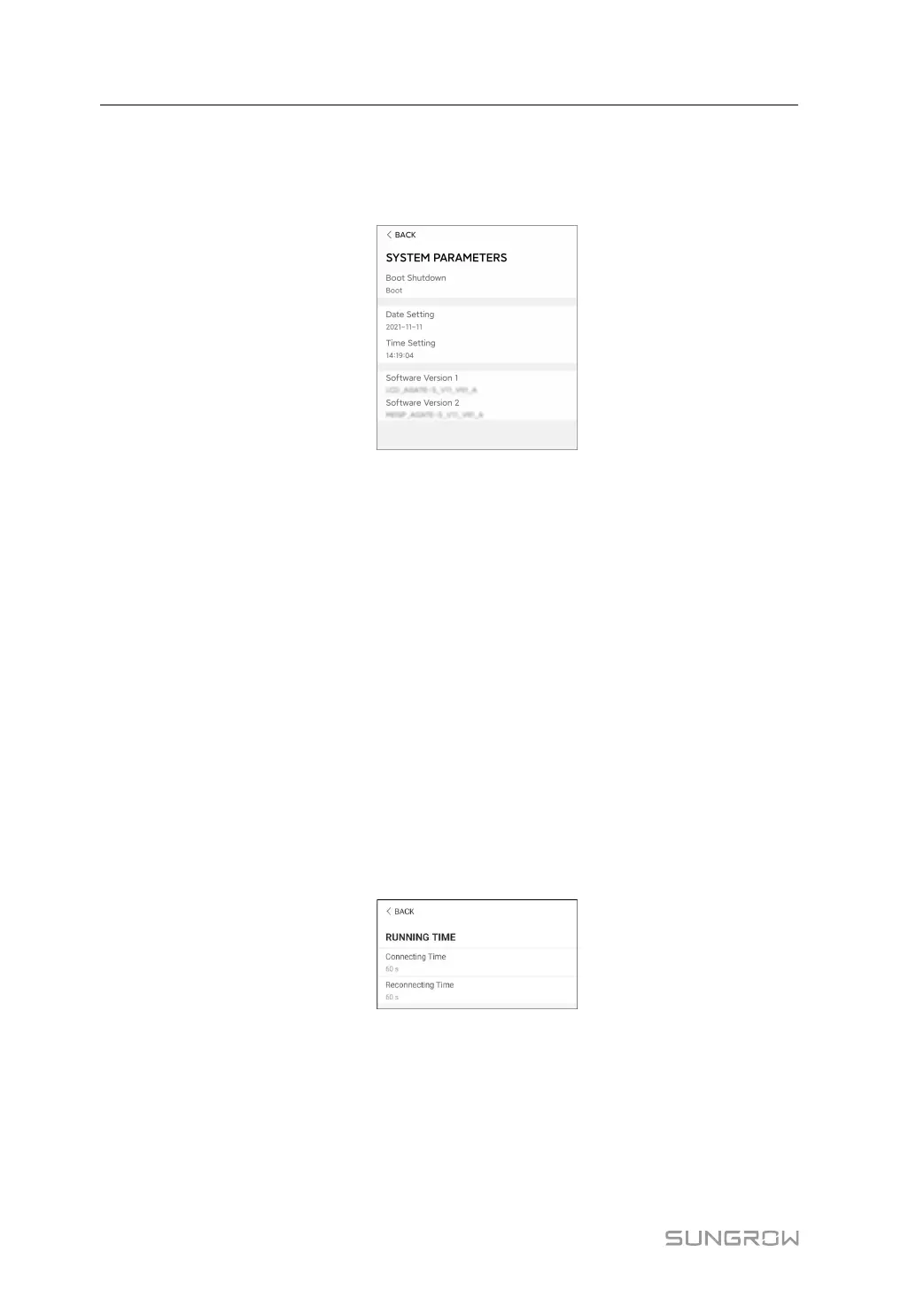

figure 7-12 System Parameters
* The image shown here is for reference only.
Boot/Shutdown
Tap Boot/Shutdown to send the boot/shutdown instruction to the inverter.
For Australia and New Zealand, when the DRM state is DRM0, the "Boot" option will be
prohibited.
Date Setting/Time Setting
The correct system time is very important. Wrong system time will directly affect the data
logging and power generation value. The clock is in 24-hour format.
Software Version
Version information of the current firmware.
7.10.2 Operation Parameters
Running Time
Tap Settings→Operation Parameters→Running Time to enter the corresponding screen,
on which you can set "Connecting Time" and "Reconnecting Time".
figure 7-13 Running Time
PID Parameters
Tap Settings→Operation Parameters→PID Parameters to enter the corresponding
screen, on which you can set "PID Parameters".
7 iSolarCloud App User Manual

Sungrow SG10RS Specifications

General

Rated Power	10 kW
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. Efficiency	98.6%
Protection Rating	IP65
Start Voltage	180 V
Rated AC Output Power	10 kW
Max. AC Output Power	11 kW
Rated Output Voltage	230 V
Operating Temperature Range	-25°C to 60°C
Topology	Transformerless
Cooling Method	Natural Convection
Maximum Power Output	11 kW
Maximum Input Current	25 A
MPPT Voltage Range	160-1000 V
Max. DC Input Power	15 kW
AC Voltage Range	180-280 V
Humidity Range	0-100%
Communication	RS485
