The cable colors in figures in this manual are for reference only. Please select ca-
bles according to local cable standards.
5.2 Terminal Description
All electrical terminals are located at the bottom side of the inverter.

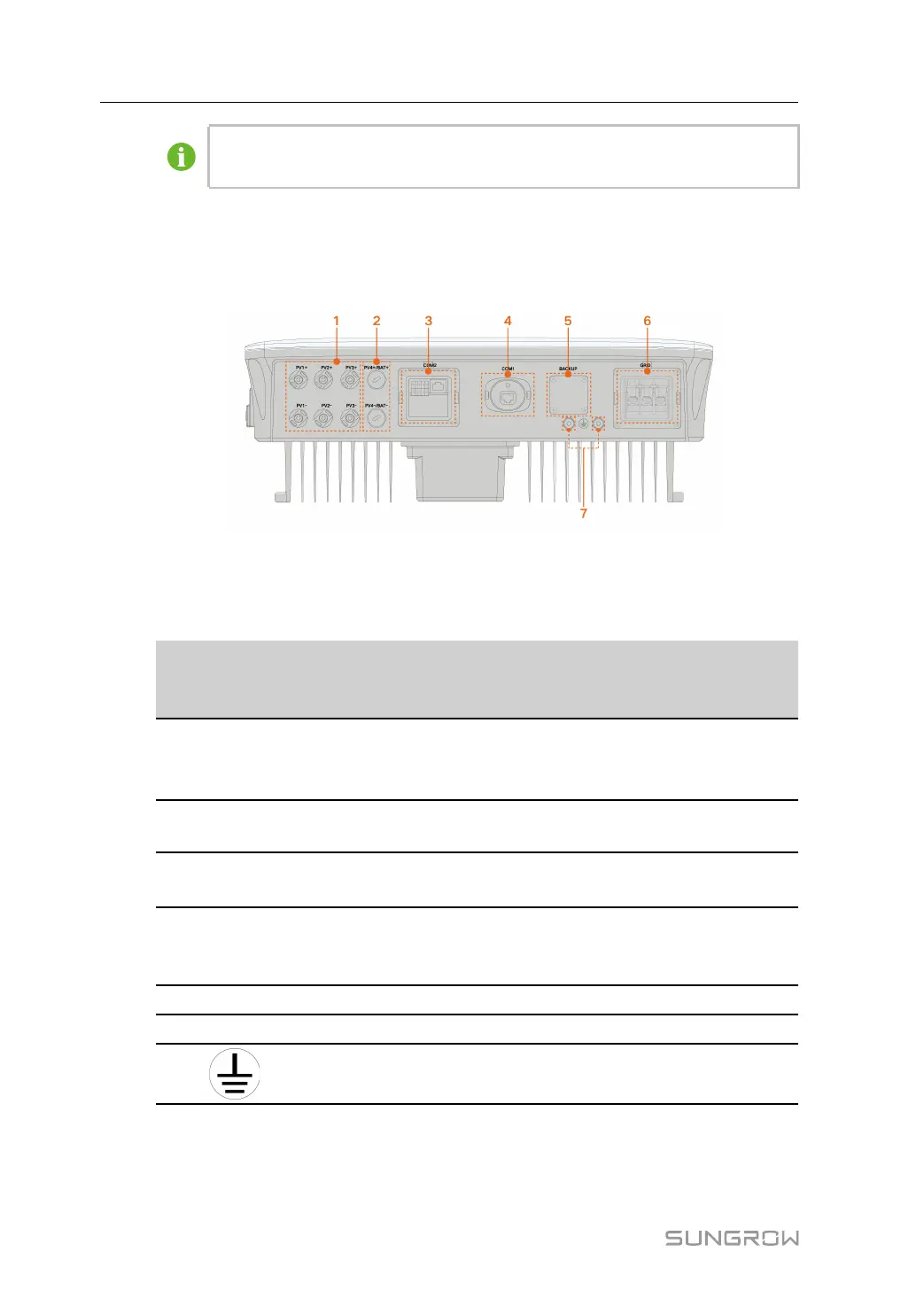

figure 5-1 Terminals
* The image shown here is for reference only. The actual product received may differ.
table 5-1 Terminal Description
No. Name
Description
Decisive Volt-
age
Classification
1
PV1+, PV1–, PV2+,
PV2–, PV3+, PV3–
MC4 terminals for PV input.
The terminal number depends on in-
verter model.
DVC-C
2
PV4+/BAT+, PV4–/
BAT-
Reserved.
Not applicable
3 COM2
Communication connection for RSD,
DRM and smart energy meter.
DVC-A
4 COM1
Communication accessory port to be
connected to WiNet-S/WiNet-S2
communication module.
DVC-A
5 BACKUP Reserved.
Not applicable
6 GRID
AC terminal to connect to the grid.
DVC-C
7
External grounding terminal. Not applicable
The pin definition of COM2 terminal is shown in the following label.
5 Electrical Connection User Manual

Sungrow SG10RS Specifications

General

Rated Power	10 kW
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. Efficiency	98.6%
Protection Rating	IP65
Start Voltage	180 V
Rated AC Output Power	10 kW
Max. AC Output Power	11 kW
Rated Output Voltage	230 V
Operating Temperature Range	-25°C to 60°C
Topology	Transformerless
Cooling Method	Natural Convection
Maximum Power Output	11 kW
Maximum Input Current	25 A
MPPT Voltage Range	160-1000 V
Max. DC Input Power	15 kW
AC Voltage Range	180-280 V
Humidity Range	0-100%
Communication	RS485
