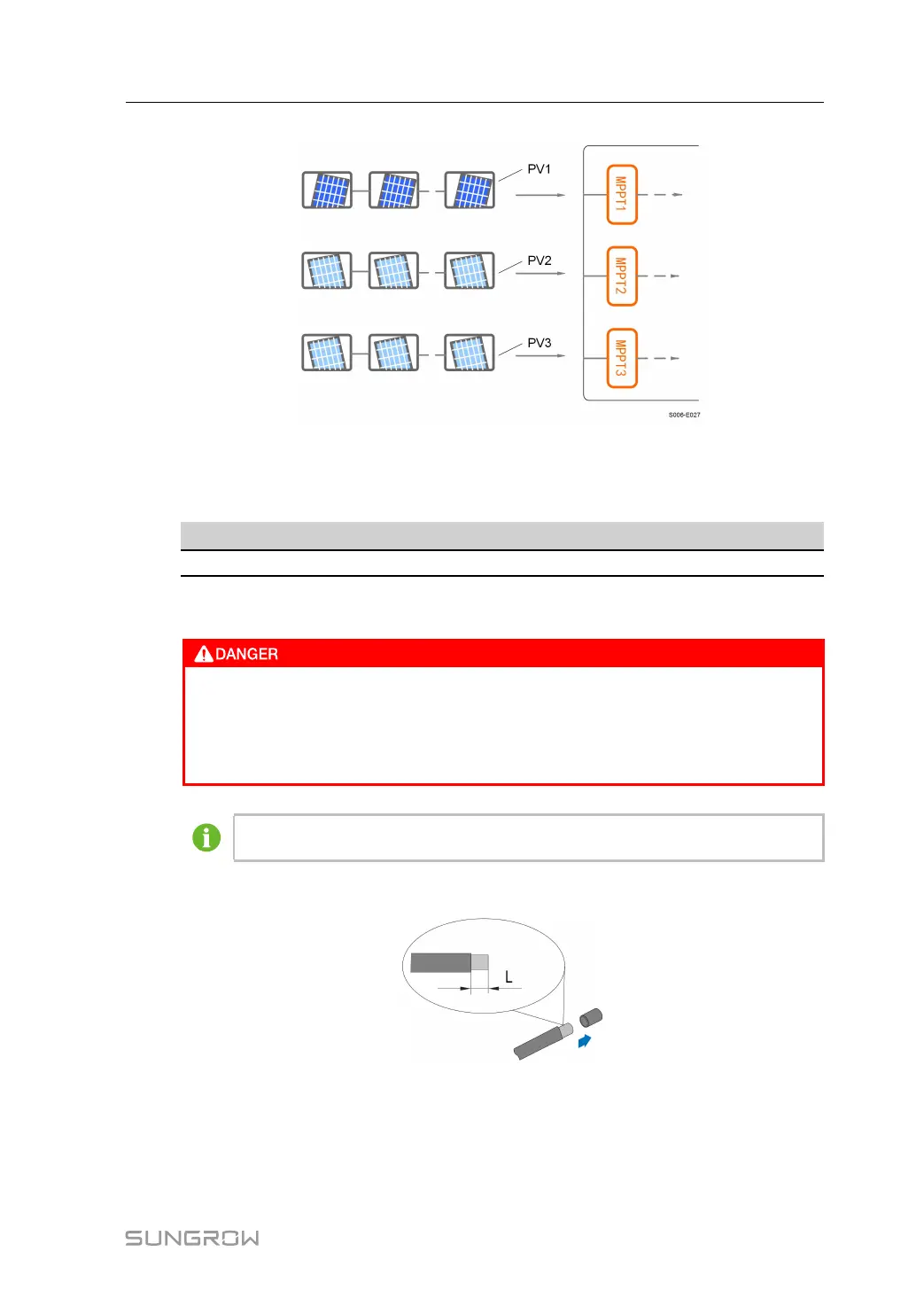

figure 5-3 PV Input Configuration
Prior to connecting the inverter to PV inputs, the specifications in the following table should
be met:
Inverter Model
Open-circuit Voltage Limit Max. current for input connector
All models
600 V 20 A
5.6.2 Assembling the PV Connectors
High voltage may be present in the inverter!
• Ensure all cables are voltage-free before performing electrical operations.
• Do not connect the DC switch and AC circuit breaker before finishing electrical
connection.
To ensure IP65 protection, use only the supplied connector.
step 1 Strip the insulation from each DC cable by 7 mm–8 mm.
step 2 Assemble the cable ends with the crimping pliers.
User Manual 5 Electrical Connection

Sungrow SG10RS Specifications

General

Rated Power	10 kW
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. Efficiency	98.6%
Protection Rating	IP65
Start Voltage	180 V
Rated AC Output Power	10 kW
Max. AC Output Power	11 kW
Rated Output Voltage	230 V
Operating Temperature Range	-25°C to 60°C
Topology	Transformerless
Cooling Method	Natural Convection
Maximum Power Output	11 kW
Maximum Input Current	25 A
MPPT Voltage Range	160-1000 V
Max. DC Input Power	15 kW
AC Voltage Range	180-280 V
Humidity Range	0-100%
Communication	RS485
