Sungrow SG10RS User Manual

52
5.8 Smart Meter Connection
The inverter can provide export control but will require the use of a external smart meter.
The export control functionality has not been tested to AS/NZS 4777.2:2020.

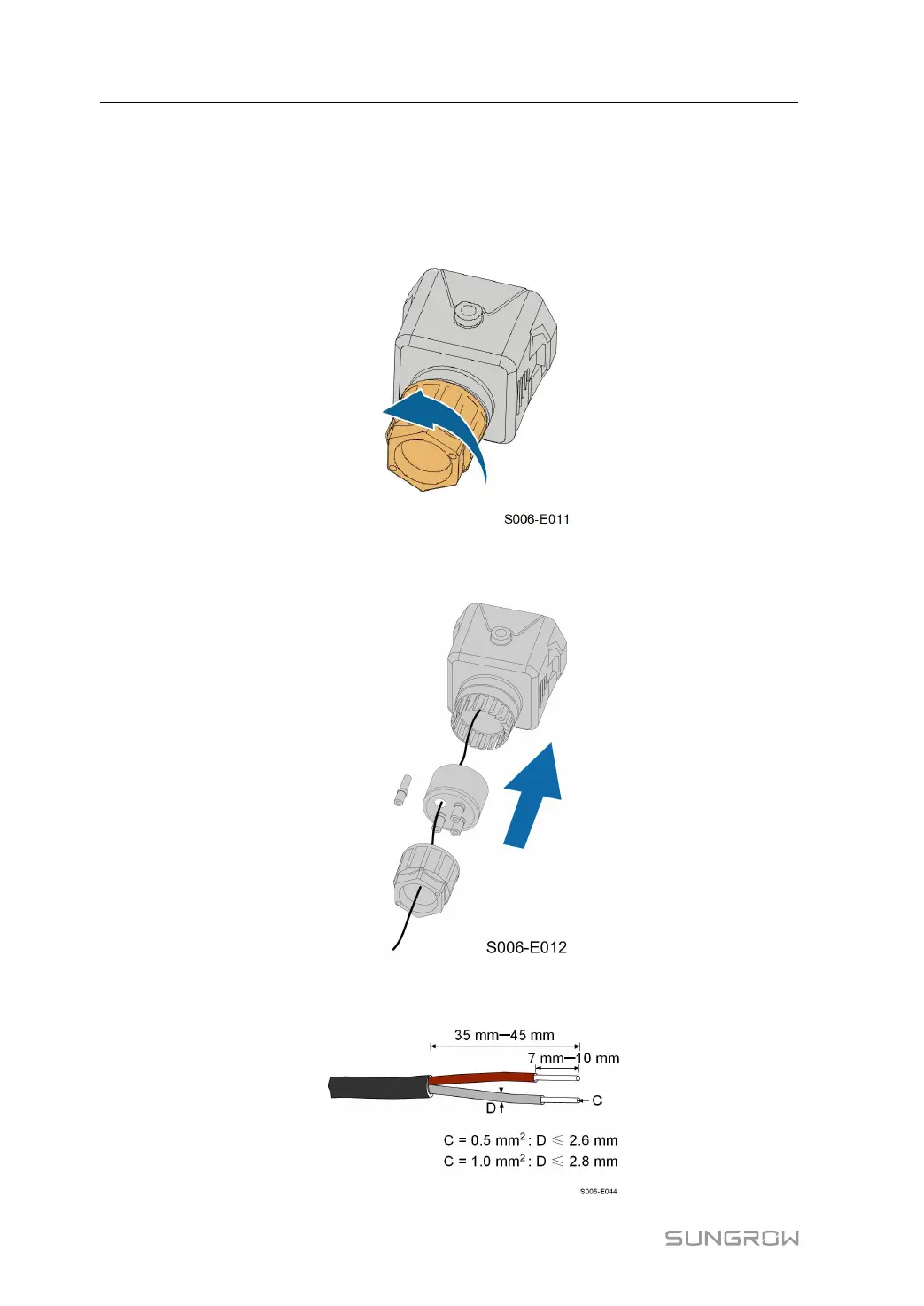

step 1 Unscrew the swivel nut from the connector.
step 2 Remove the seal and route the cable into the opening of the sealing.
step 3 Remove the cable jacket and strip the wire insulation.
5 Electrical Connection User Manual

Sungrow SG10RS Specifications

General

Rated Power	10 kW
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. Efficiency	98.6%
Protection Rating	IP65
Start Voltage	180 V
Rated AC Output Power	10 kW
Max. AC Output Power	11 kW
Rated Output Voltage	230 V
Operating Temperature Range	-25°C to 60°C
Topology	Transformerless
Cooling Method	Natural Convection
Maximum Power Output	11 kW
Maximum Input Current	25 A
MPPT Voltage Range	160-1000 V
Max. DC Input Power	15 kW
AC Voltage Range	180-280 V
Humidity Range	0-100%
Communication	RS485
