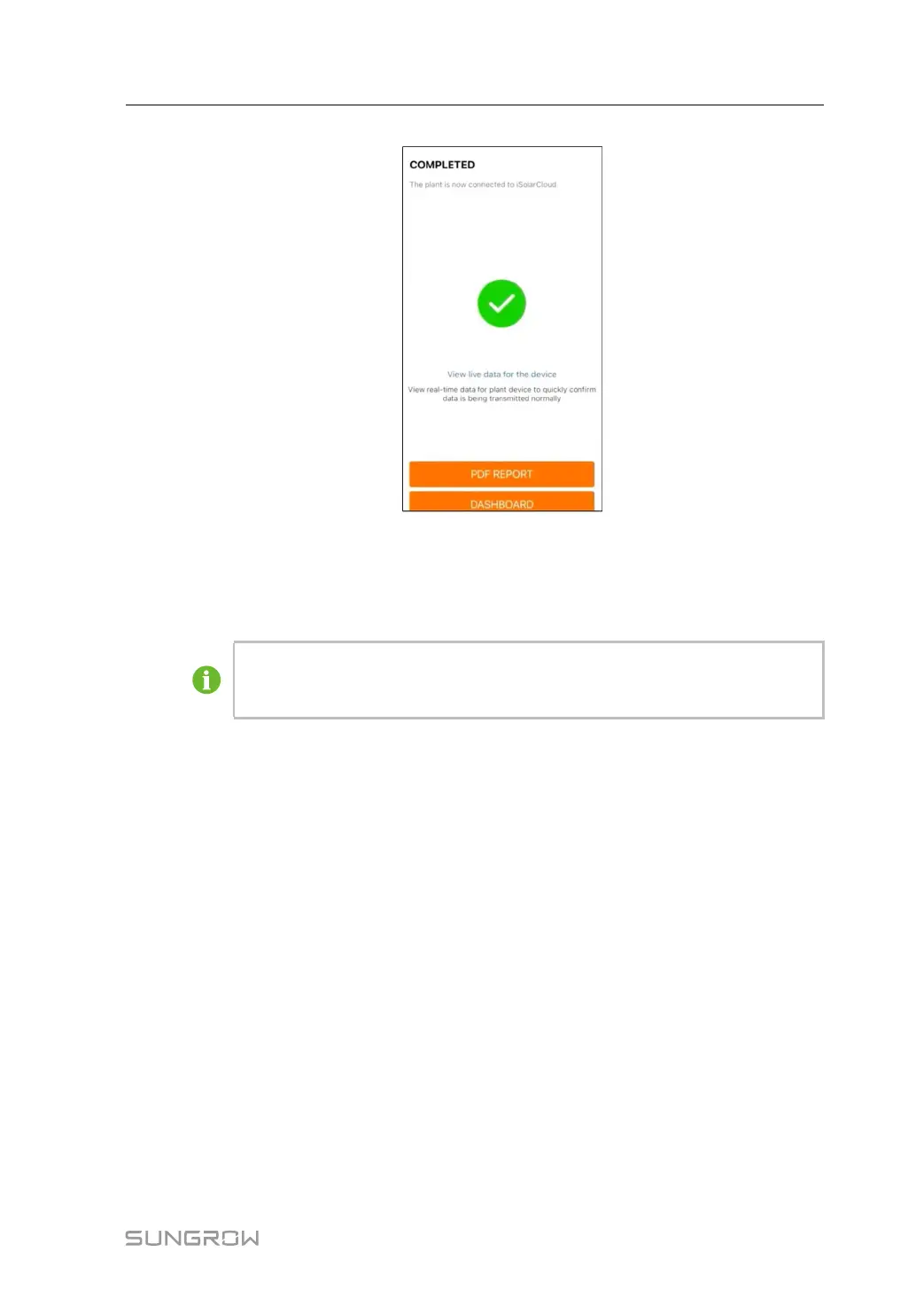

figure 6-10 Configuration Completed
step 6 (Optional) Tab View live data for the device, tick Inverter or Total Plant Devices and tab
ALL PLANTS OPEN. The clock symble indicates that the live data view function is success-
fully enabled. Tab the inverter to view the live data about voltage, current, power or curve.
Contact Sungrow service to enable live data function of devices. Once enabled,
live data function is available for 3 hours per day by default. To make it available
for 24 hours, contact SUNGROW.
step 7 Tab BACK to the COMPLETED screen. Tab PDF REPORT to export the plant configuration
report.
step 8 Tab BACK to the COMPLETED screen. Tab DASHBOARD to return and manually refresh
the page until the newly created plant is displayed with status commissioned.
- - End
6.7 Optimizer Physical Layout (Optional)
• If PV modules are installed and optimizers are configured, check to ensure that all devi-
ces are reliably installed.
• Remove QR code labels from the optimizers and attach them to corresponding square
cells on the physical layout.
• Please refer to the optimizer user manual for details of the optimizer physical layout.
User Manual 6 Commissioning

Sungrow SG10RS Specifications

General

Rated Power	10 kW
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. Efficiency	98.6%
Protection Rating	IP65
Start Voltage	180 V
Rated AC Output Power	10 kW
Max. AC Output Power	11 kW
Rated Output Voltage	230 V
Operating Temperature Range	-25°C to 60°C
Topology	Transformerless
Cooling Method	Natural Convection
Maximum Power Output	11 kW
Maximum Input Current	25 A
MPPT Voltage Range	160-1000 V
Max. DC Input Power	15 kW
AC Voltage Range	180-280 V
Humidity Range	0-100%
Communication	RS485
