Sungrow SG10RS User Manual

48

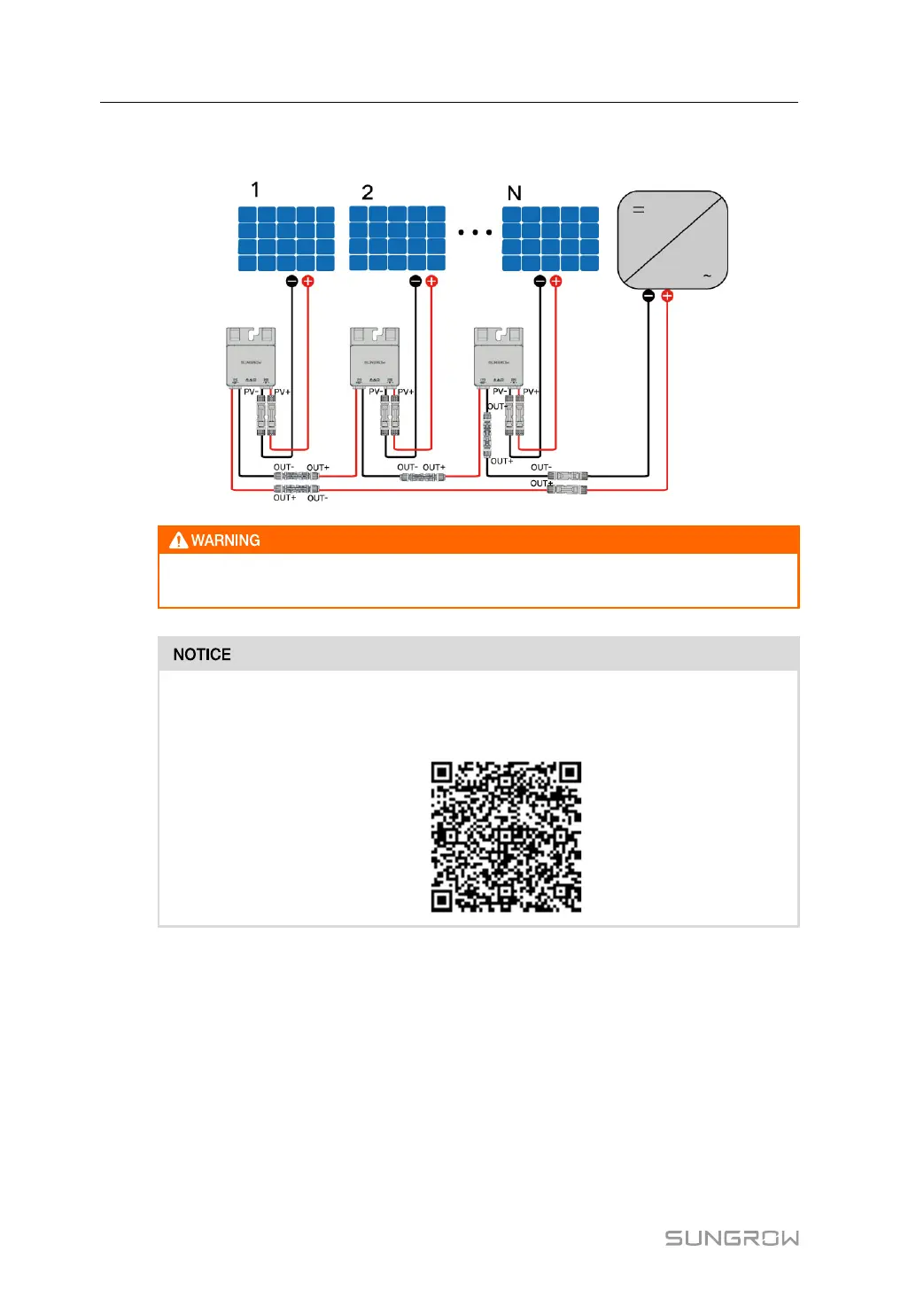

step 8 Connect OUT+ of the first optimizer and OUT- of the last optimizer to the PV input terminals
of the inverter.
If each PV module is equipped with an optimizer, the total power of PV modules in a PV input
shall not exceed the maximum input power of a single PV input of the inverter.
• Branch-connector connection on the input side of the inverter is not supported by the
optimizer.
• Please refer to the optimizer user manual for details.
- - End
5.7 WiNet-S / WiNet-S2 Connection
The WiNet-S/WiNet-S2 module supports Ethernet communication and WLAN communica-
tion. It is not recommended to use both communication methods at the same time.
SG5.0RS—ADA uses WiNet-S2 module, SG8.0–10RS uses WiNet-S module.
For details, see the quick guide for the WiNet-S module. Scan the following QR code for the
quick guide.
5 Electrical Connection User Manual

Sungrow SG10RS Specifications

General

Rated Power	10 kW
Max. DC Voltage	1100 V
Number of MPPTs	2
Max. Efficiency	98.6%
Protection Rating	IP65
Start Voltage	180 V
Rated AC Output Power	10 kW
Max. AC Output Power	11 kW
Rated Output Voltage	230 V
Operating Temperature Range	-25°C to 60°C
Topology	Transformerless
Cooling Method	Natural Convection
Maximum Power Output	11 kW
Maximum Input Current	25 A
MPPT Voltage Range	160-1000 V
Max. DC Input Power	15 kW
AC Voltage Range	180-280 V
Humidity Range	0-100%
Communication	RS485
