51
step 7 Slightly shake it by hand to determine whether it is installed firmly.
- - End
5.7.2 WLAN Communication

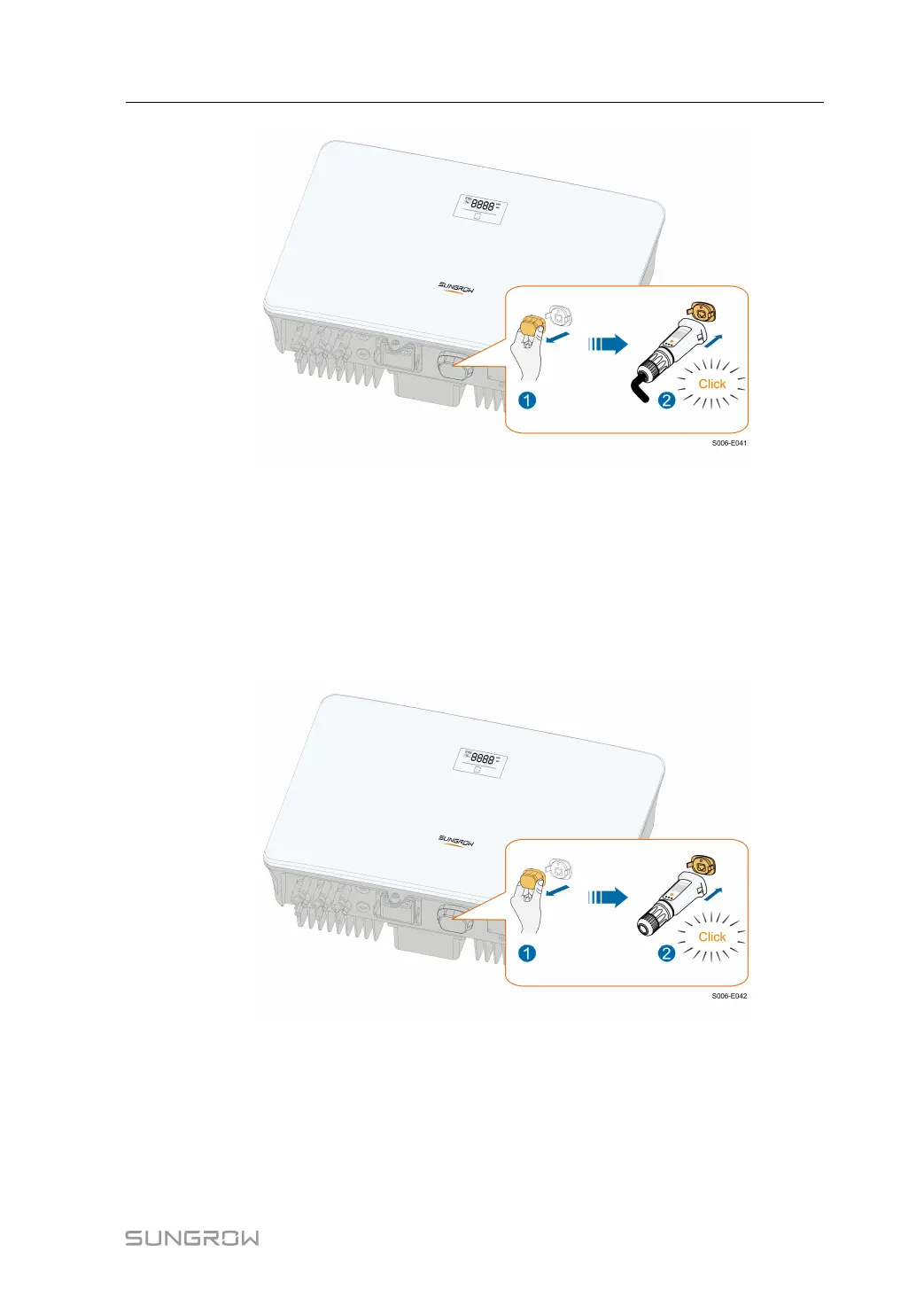

step 1 Remove the waterproof lid from the COM1 terminal.
step 2 Install the module. Slightly shake it by hand to determine whether it is installed firmly, as
shown below.
step 3 Refer to the guide delivered with the module for the set-up.
- - End
User Manual 5 Electrical Connection

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Sungrow SG10RS and is the answer not in the manual?

Sungrow SG10RS Specifications

General IconGeneral
Rated Power10 kW
Max. DC Voltage1100 V
Number of MPPTs2
Max. Efficiency98.6%
Protection RatingIP65
Start Voltage180 V
Rated AC Output Power10 kW
Max. AC Output Power11 kW
Rated Output Voltage230 V
Operating Temperature Range-25°C to 60°C
TopologyTransformerless
Cooling MethodNatural Convection
Maximum Power Output11 kW
Maximum Input Current25 A
MPPT Voltage Range160-1000 V
Max. DC Input Power15 kW
AC Voltage Range180-280 V
Humidity Range0-100%
CommunicationRS485
