9. Final Driving Mechanism
9-5

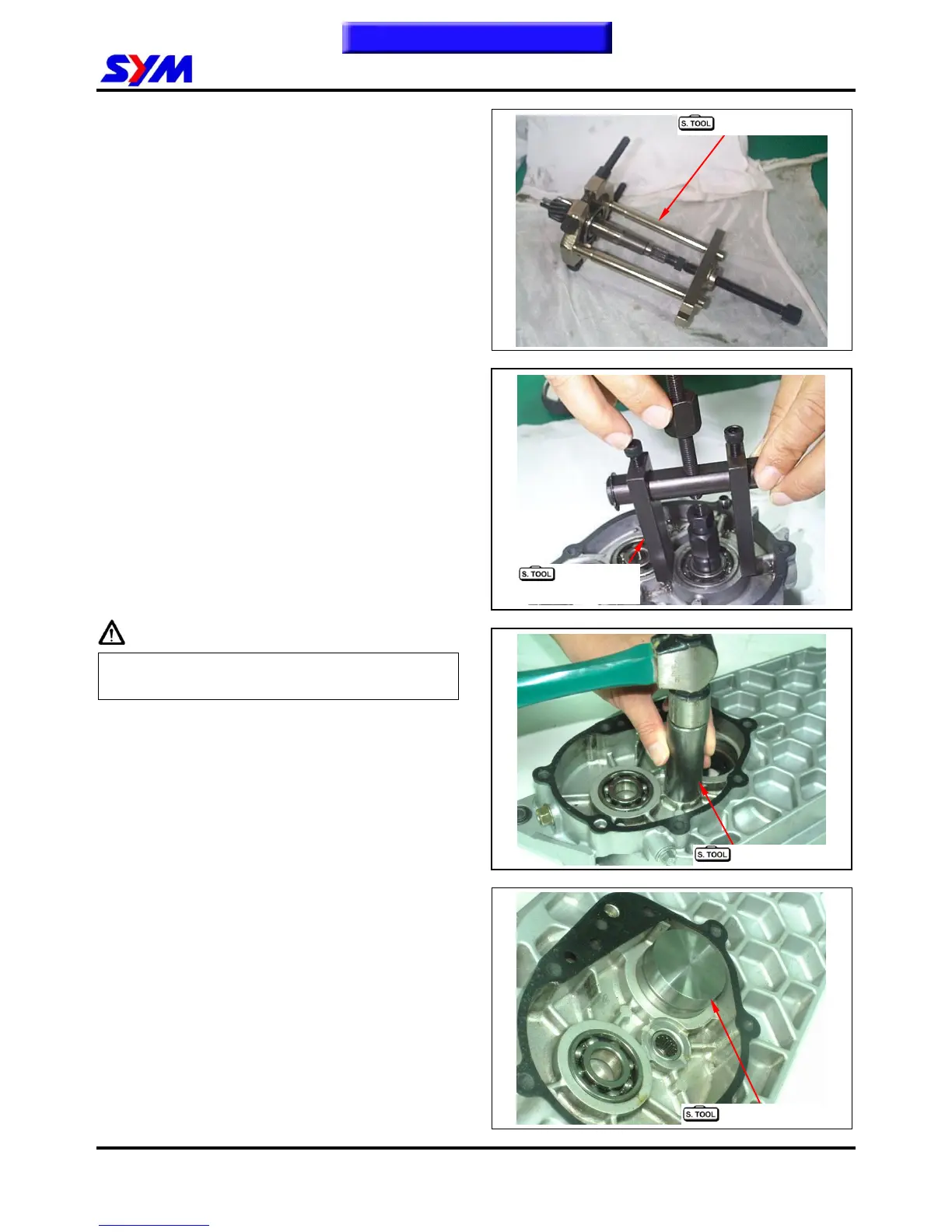

Bearing Replacement
Left crankcase side
If the drive shaft is pulled out with its bearing, then
remove the bearing with bearing puller and shaft
protector.
Special tool:
Multi-functional bearing puller or Outer bearing
puller SYM-6204001
Shaft protector SYM-6204010
Remove final shaft bearing and counter shaft
bearing from left crankcase using following tools.
Special tool:
Inner bearing puller SYM-6204020 or
SYM-6204021
Caution
Never install used bearings. Once bearing
removed, it has to be replaced with new one.
Install new final shaft bearing and counter shaft
bearing into left crankcase.
Special tool:
Bearing driver 6205 SYM-9615000-6205
Bearing driver HK1516 SYM-9100200-HK1516
Install new drive shaft bearing and bearing puller
onto left crankcase.
Special tool:
Bearing puller 6205 SYM-9100400-6205
