10. Alternator / Starting Clutch
10-9

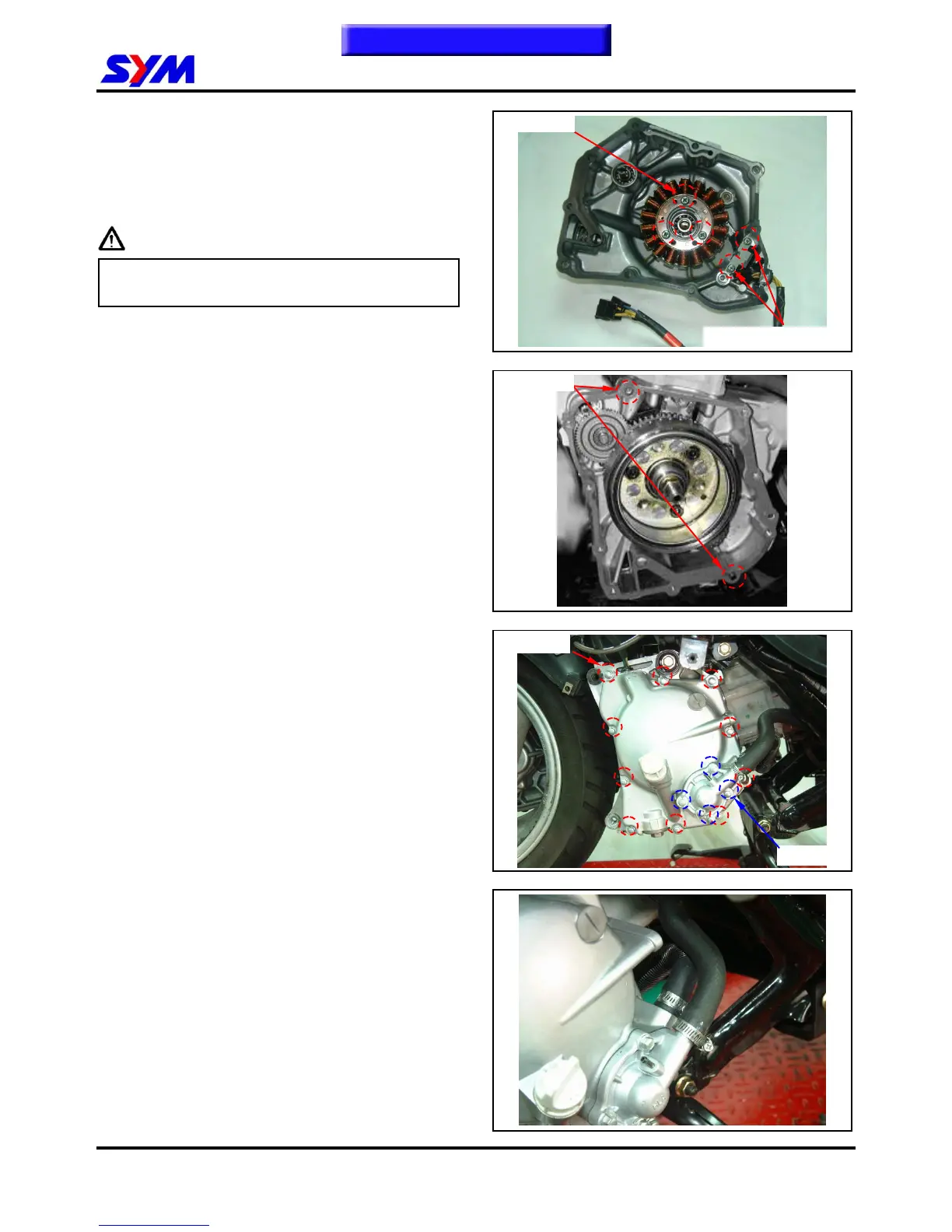

AC.G. Set Installation
Install the AC.G. coil set onto right crankcase
cover (3 screws).
Install pulse generator (2 screws).
Tie the wire harness securely onto the indent of
crankcase.
Caution
Make sure that the wire harness is placed under
pulse generator.
Right Crankcase Cover Installation
Install dowel pins and new gasket.
Remove water pump cover.
Install right crankcase cover onto the crankcase.
Note: Align the water pump shaft indent with the oil
pump shaft.
Install right crankcase cover (10 screws).
Install the dowel pin, new gasket and water pump
cover onto crankcase cover.
Connect coolant hoses onto the right crankcase
cover.
Add engine oil and coolant.
To this chapter contents
Pulse generator screws
3 screws
10 bolts
4 bolts
Dowel pins
