14. Brake System
14-8

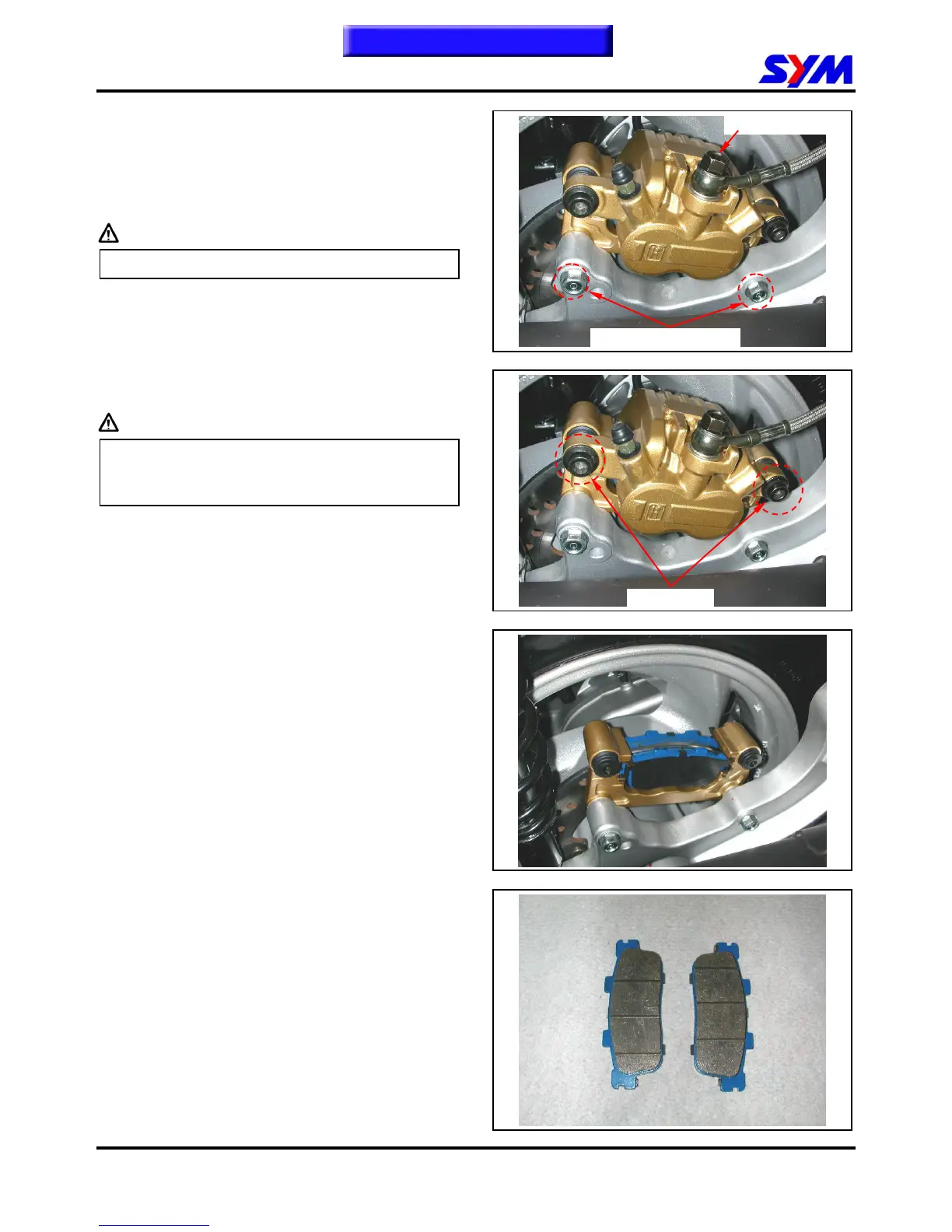

Rear Brake Caliper
Removal
Place a container under the brake caliper, and
loosen the brake hose bolt and finally remove the
brake hose.
Caution
Do not spill brake fluid on painted surfaces.
Remove two caliper mounting bolts and the
caliper.
Installation
Install the brake caliper and tighten the mounting
bolts.
Torque: 2.9~3.5kgf-m
Caution
Use M8 x 35 mm flange bolt only.
Long bolt will impair the operation of brake
disk.
Use two seal washers and hose bolts to lock the
hoses and brake caliper in place.
Torque: 3.0~4.0kgf-m
Refill up the brake fluid to the reservoir and make
necessary air bleeding.
Brake pad replacement
Remove the brake caliper upper parts (2 socket
bolts).
Take out the brake pads.
Install the new brake pads onto brake caliper
bracket.
Install the brake caliper upper parts and tighten
the socket bolts.
