4. Fuel System
4-11

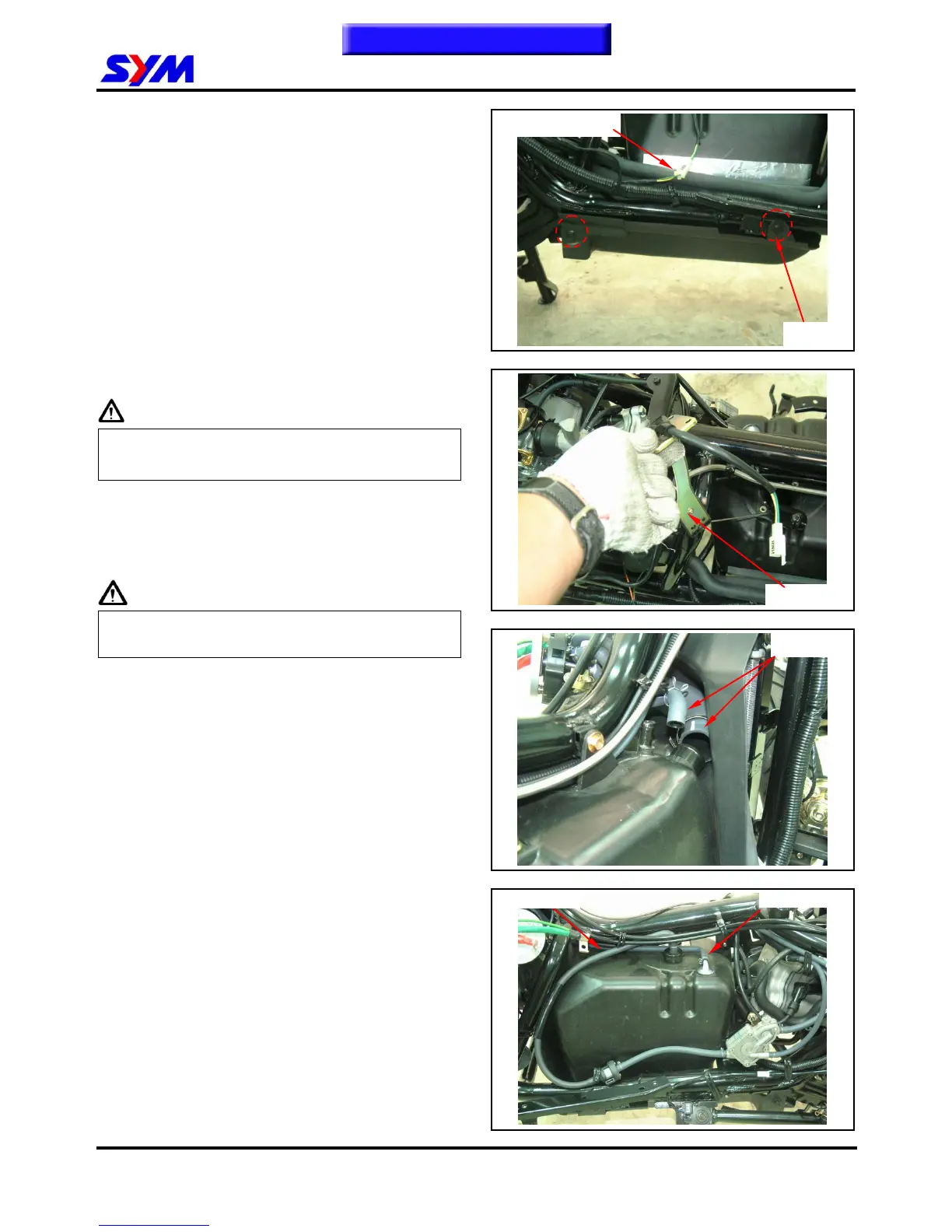

Fuel Tank
Fuel unit removal
Remove the left and right side covers.
Open seat and remove the luggage box.
Remove rear carrier.
Remove the left and right body covers.
Remove the foot pedal (please refer to chapter 13
for these components above.)
Remove fuel unit coupler, and then remove fuel
unit (4 screws).
Caution
˙Do not bend the float arm of fuel unit
˙Do not fill out too much fuel to fuel tank.
Fuel unit inspection (Refer to electrical equipment
chapter 17).
Fuel unit installation
Install the fuel unit in the reverse order of removal.
Caution
Do not forget to install the gasket of fuel unit or
damage it.
Fuel tank removal
Remove the left and right side covers.
Open seat and remove the luggage box.
Remove rear carrier.
Remove the left and right body covers.
Remove the foot pedal (please refer to chapter 13
for these components above.)
Remove under cover (4 bolts).
Disconnect fuel unit coupler.
Remove the fuel inlet tubes.
Remove the vapor tube, fuel outlet tube.
Remove fuel tank front and rear side 4 bolts, and
then remove fuel tank.
