6. Cylinder Head / Valve
6-1
Mechanism Diagram ······················· 6-1
Precautions in Operation ················· 6-2
Troubleshooting ····························· 6-3
Cylinder Head Removal ··················· 6-4
Cylinder Head Disassembly ············· 6-6
Cylinder Head Inspection ················· 6-8
Valve Stem Replacement ················ 6-10
Valve Seat Inspection and Service ··· 6-11
Cylinder Head Reassembly ············· 6-13
Cylinder Head Installation ·············· 6-14
Valve Clearance Adjustment ··········· 6-16

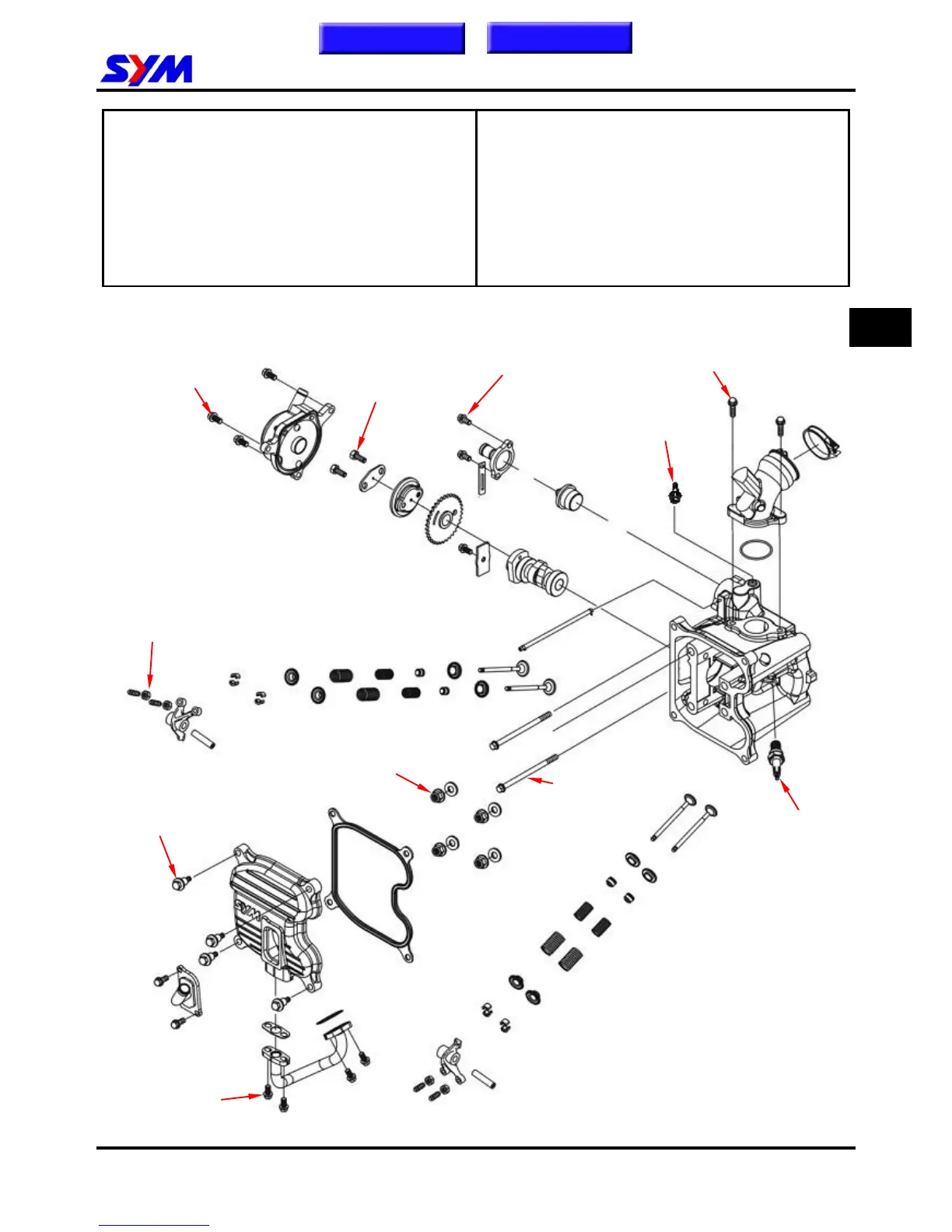

Mechanism Diagram
6
0.7~1.1kgf-m
1.0~1.4kgf-m
1.0~1.4kgf-m
1.0~1.2kgf-m
3.6~4.0kgf-m
Home page
Contents
2.4~3.0kgf-m
1.0~1.4kgf-m
1.0~1.4kgf-m
1.0~1.4kgf-m
1.0~1.2kgf-m
1.0~1.4kgf-m
