12. Cooling System
12-1
Mechanism Diagram ························ 12-1
General Information ························· 12-2
Trouble Diagnosis ··························· 12-2
Trouble Diagnosis for Cooling System
····················································· 12-3
Change of coolant ··························· 12-5
Radiator ········································· 12-6
Water Pump ···································· 12-8
Thermostat ····································· 12-12

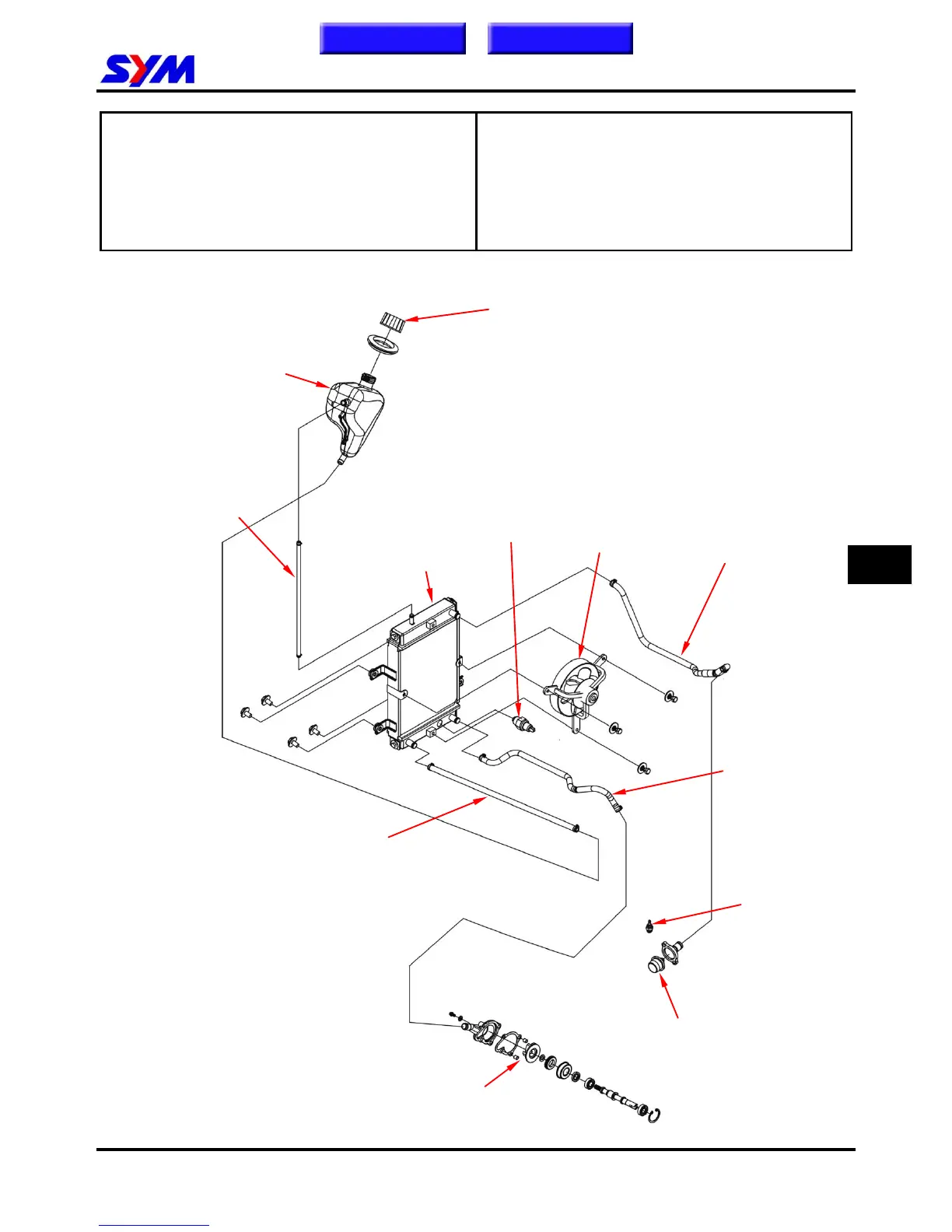

Mechanism Diagram
12
Home page
Contents
Radiator filler cap
Radiator
Thermo switch (fan)
Reserve tank outlet pipe
Thermo unit
(temp meter)
Water pump
Thermostat
Engine coolant outlet pipe
Reserve tank
Cooling fan
Engine coolant inlet
pipe
Reserve tank inlet pipe
