9. Final Driving Mechanism
9-8

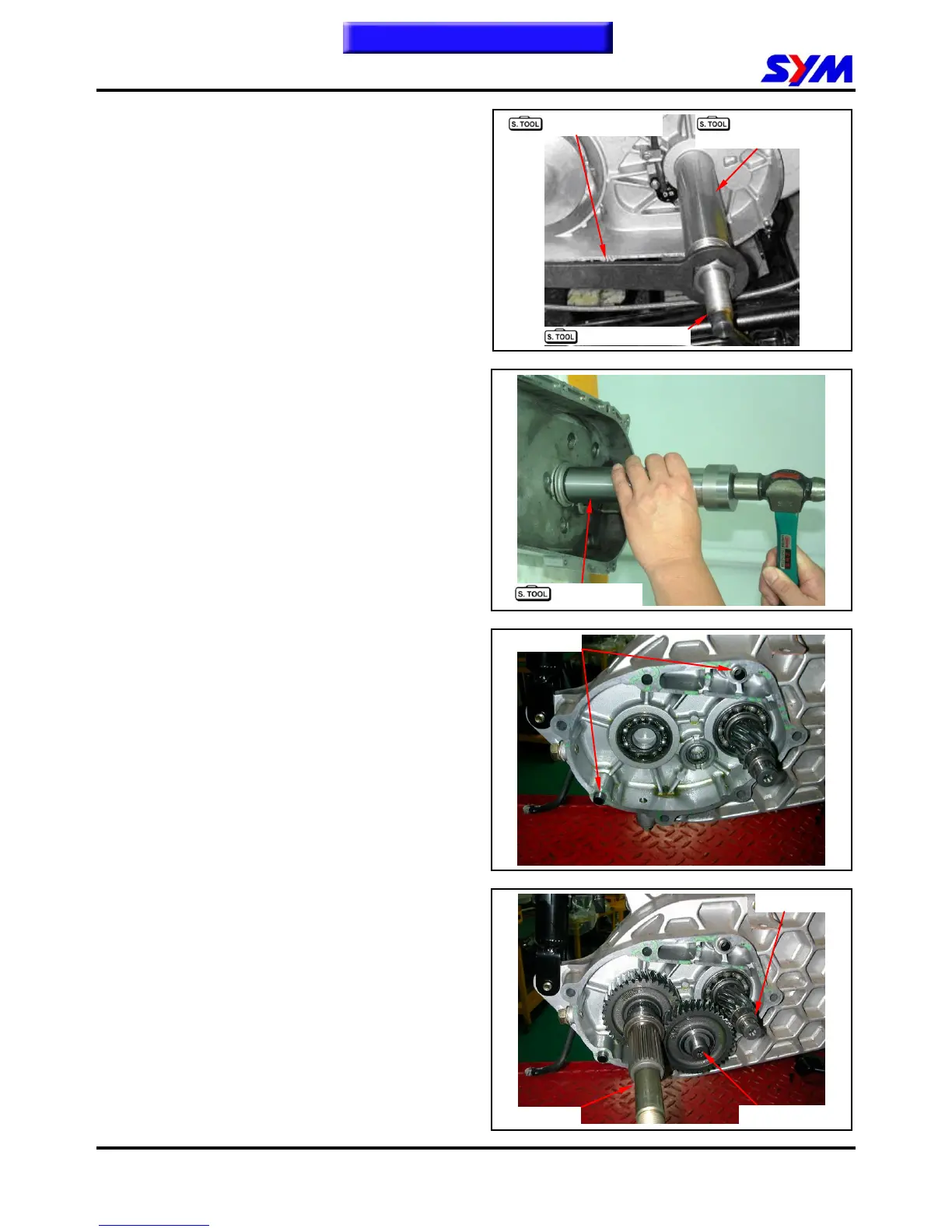

Re-Assembly of Final Driving
Mechanism
Install drive shaft.
Special tool:
Drive shaft puller SYM-2341110- HMA RB1
Drive shaft socket & oil seal driver (25*40*8)
SYM-9120200-HMA
Clutch nut wrench SYM-9020200
Apply with grease onto drive shaft oil seal.
Install the oil seal to left crankcase.
Special tool:
Drive shaft socket & oil seal driver (25*40*8)
SYM-9120200-HMA
Install 2 dowel pins & new gasket.
Install counter shaft and final shaft into the gear
box cover.
Install the gear box and tighten the bolts (7 bolts).
Torque value: 2.6~3.0kgf-m
Install driven pulley / clutch outer / belt.
Install movable drive face, drive face and left
crankcase cover.
Install rear wheel.
Add gear oil.
Gear oil quantity: 180c.c.
