12. Cooling System
12-8
Water Pump
Check water pump seal / cooling
system divulges inspection
 Disassembles the refrigerant drain bolt,
overflows little buckles the N actually fluid,
confirmed overflows the refrigerant whether has
the greasy dirt.
 Turns on lathe the engine oil gauge rule, the
inspection engine oil whether does have
bleaches situation of the emulsified.
If has the above two kind of interior to divulge the
phenomenon, possibly for the water pump inner
two seal damages, the engine cooling system
damages or the cylinder and the cylinder head
gasket damages, please first dismantles the right
crank case to say A confirms the replacement
water pump seal, if does not have the question to
take apart for overhaul cooling system of system
again the cylinder head, the cylinder.

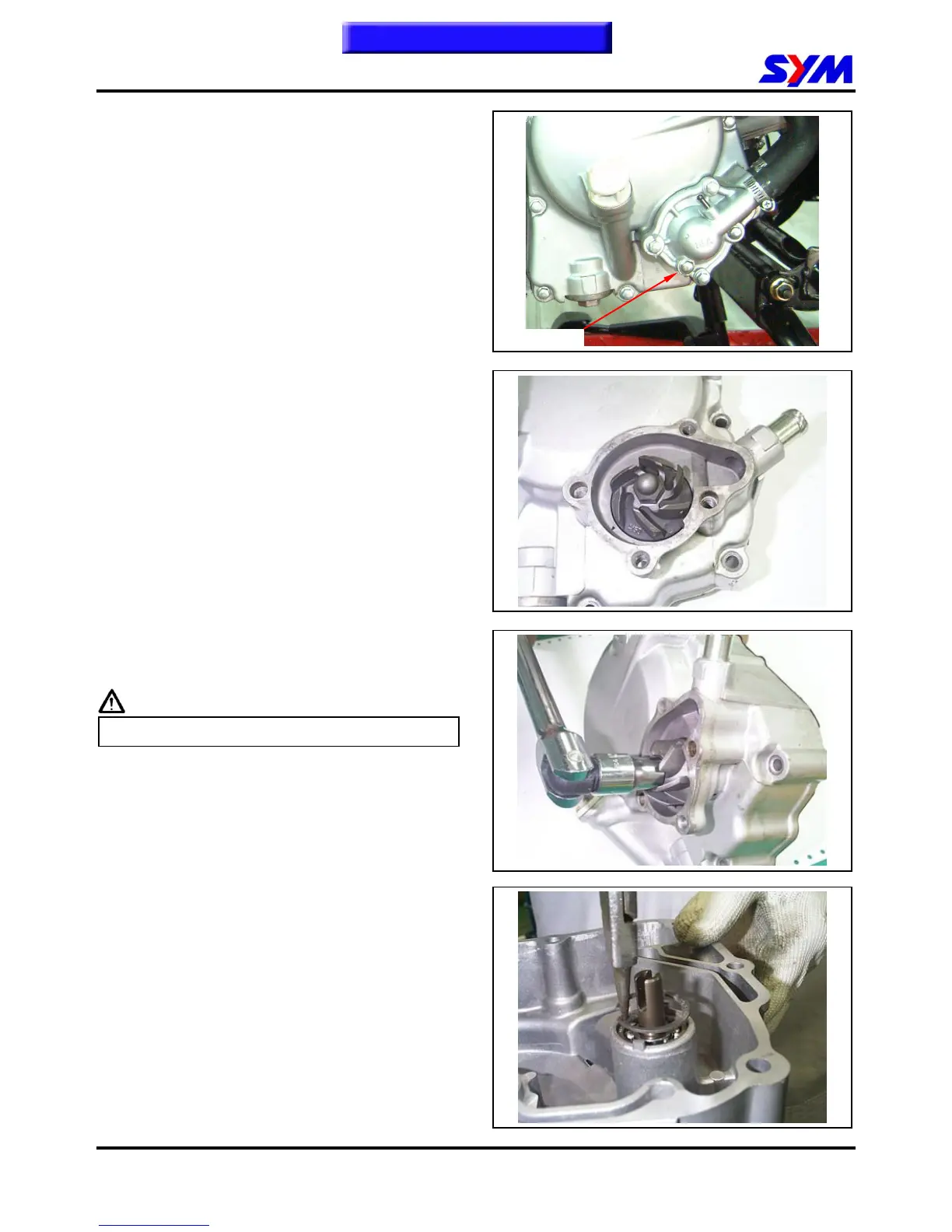

Removal of water pump
Loosen the drain bolt to drain out the coolant.
Remove the water hose.
Loosen 4 bolts and remove the pump cover.
Loosen 10 bolts and remove the engine right
cover.
Take off the gasket and dowel pins.
Turn pump rotor clockwise and remove.
Caution
 The rotor is provided with left turn thread.
Remove the cir clip from the right crankcase cover.
Remove the water pump shaft and the inner
bearing.
Remove the outside bearing by inner bearing
puller.
Rotate the inner ring of bearing, the bearing shall
move smoothly and quietly.
If the bearing does not rotate smoothly or
produces a noise, replace it with new one.
