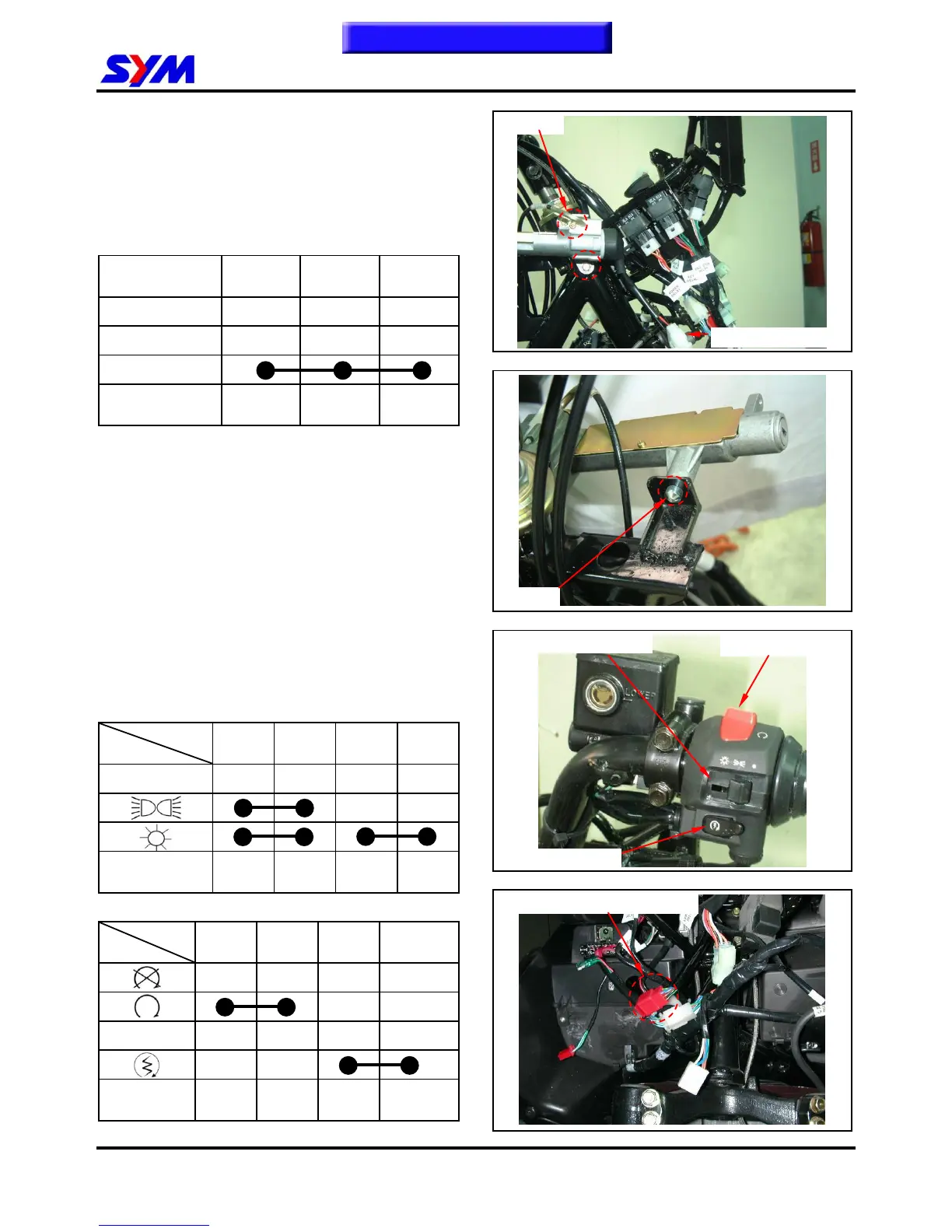

17. Electrical System
17-19
Switch / Horn
Main switch
Inspection
Remove the front cover.
Disconnect the main switch coupler.
Check the continuity between two points as
indicted below
Pin
Position
BAT
BAT1
BAT2
LOCK
OFF
ON
Wire Color
Red
Black
Blake
Replacement of main switch
Remove main switch cap.
Disconnect the coupler of the main switch and
loosen the mounting bolts (3 bolts).
Remove the main switch.
Install the new main switch and tighten the
mounting bolts.
Install the main switch coupler and cap.
Right handle switch
Remove the handle cover and front cover.
Disconnect the coupler of right handle switch.
Check the continuity between two points as
indicated in the table below
Headlight switch
Pin
Position
TL
CI
HL
CI
Wire Color
Brown
Black
Black
Blue
/White
Start and engine stop switch
Pin
Position
ST
E
ST
E
FREE
Wire Color
Black
Black
/Green
Yellow
/ Red
Sky blue/
Orange
1 blot
Start switch
2 blots
Headlight switch
Engine stop switch
Main switch coupler
Right handle switch coupler
