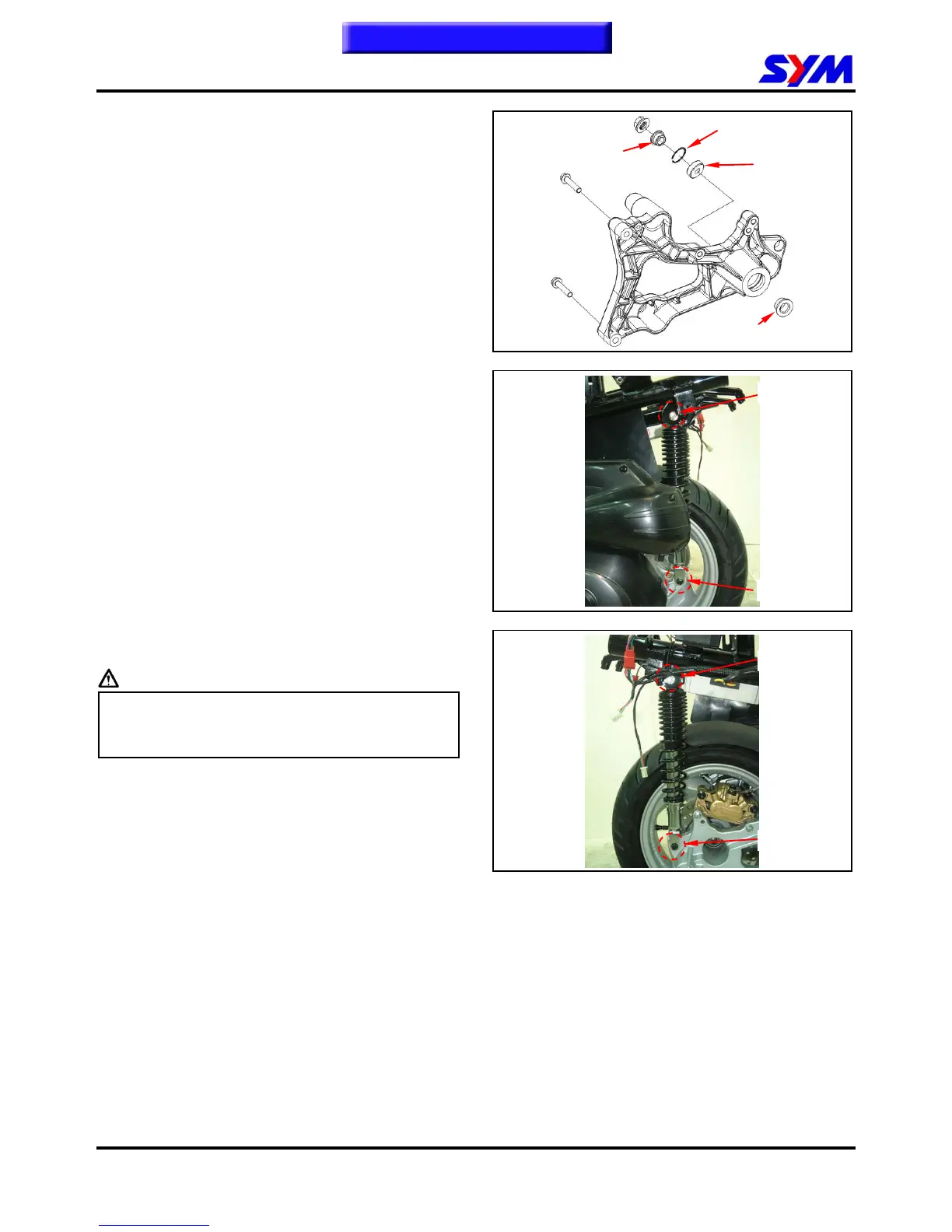

16. Rear Wheel / Rear Fork / Rear Cushion
16-6
Install the bearing lock cir clip.
Rear Cushion
Removal
Remove the luggage box, rear carrier and body
covers.
Loosen the mounting bolts of the air cleaner (2
bolts).
Remove the exhaust muffler (3 bolts, 2 nuts).
Remove the under bolts by left and right rear
cushions.
Remove the upper bolts by left and right rear
cushions, and then remove the cushion.
Installation
Install in reverse order of removal procedures.
Caution
 The rear cushion must be replaced as a unit.
Never disassemble the rear cushion as that
would damage the structure.
Torque Value
Rear cushion upper bolt: 3.5~4.5kgf-m
Rear cushion under bolt: 2.4~3.0kgf-m
Upper bolt
To this chapter contents
Left
Right
Under bolt
Upper bolt
Under bolt
Cir clip
Inside collar
Outside collar
Bearing
(6303UU)
