3. Lubrication System
3-4

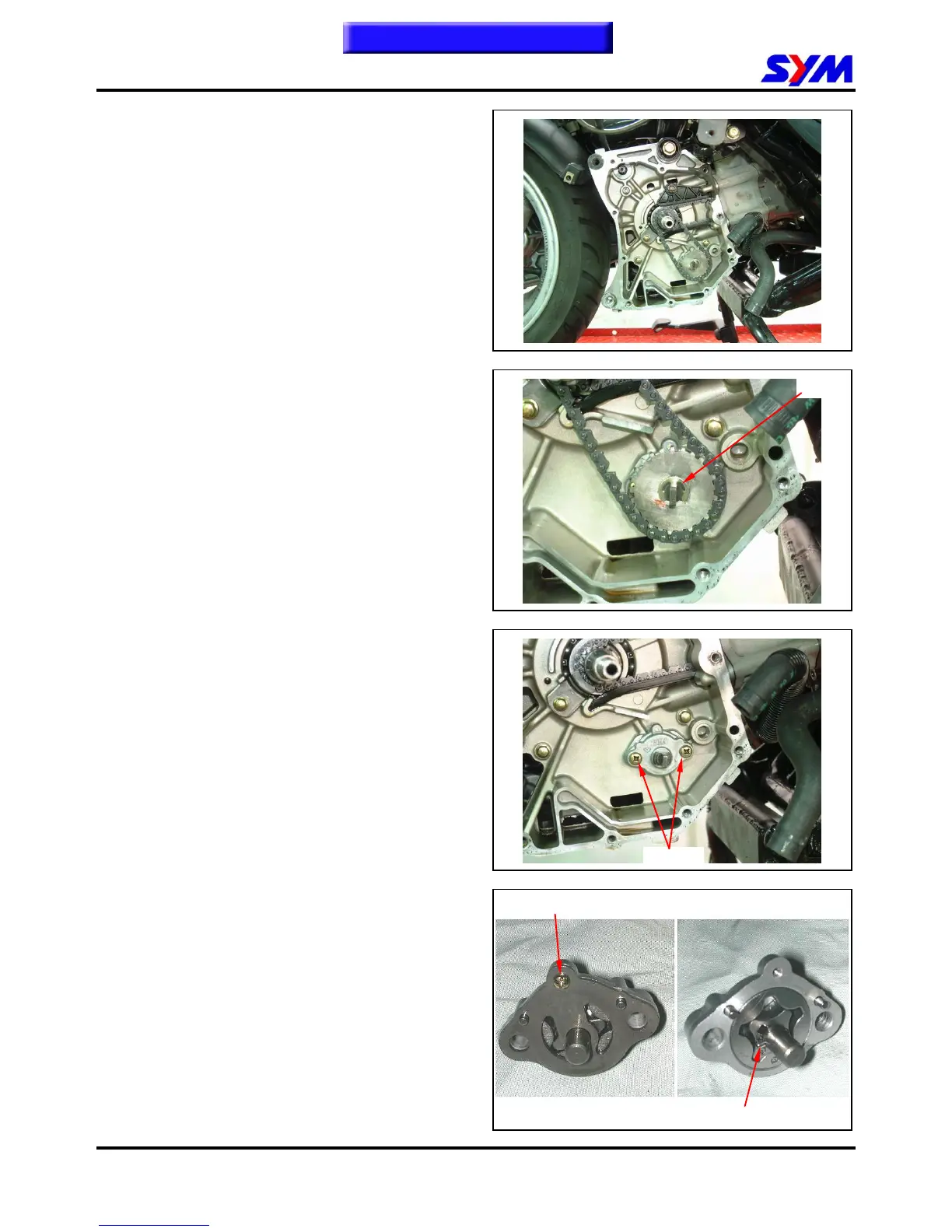

Oil Pump
Oil Pump Removal
Remove generator and starting gear. (Refer to
chapter 10) 。
Remove cir clip and take out oil pump driving
chain and sprocket.
Make sure that pump shaft can be rotated freely.
Remove 2 screws on the oil pump, and then
remove oil pump.
Oil Pump Disassembly
Remove the screws on oil pump cover and
remove the cover.
Remove oil pump shaft roller and shaft.
