15. Steering / Front Wheel / Front Cushion

15-3

Steering Handle

Remove

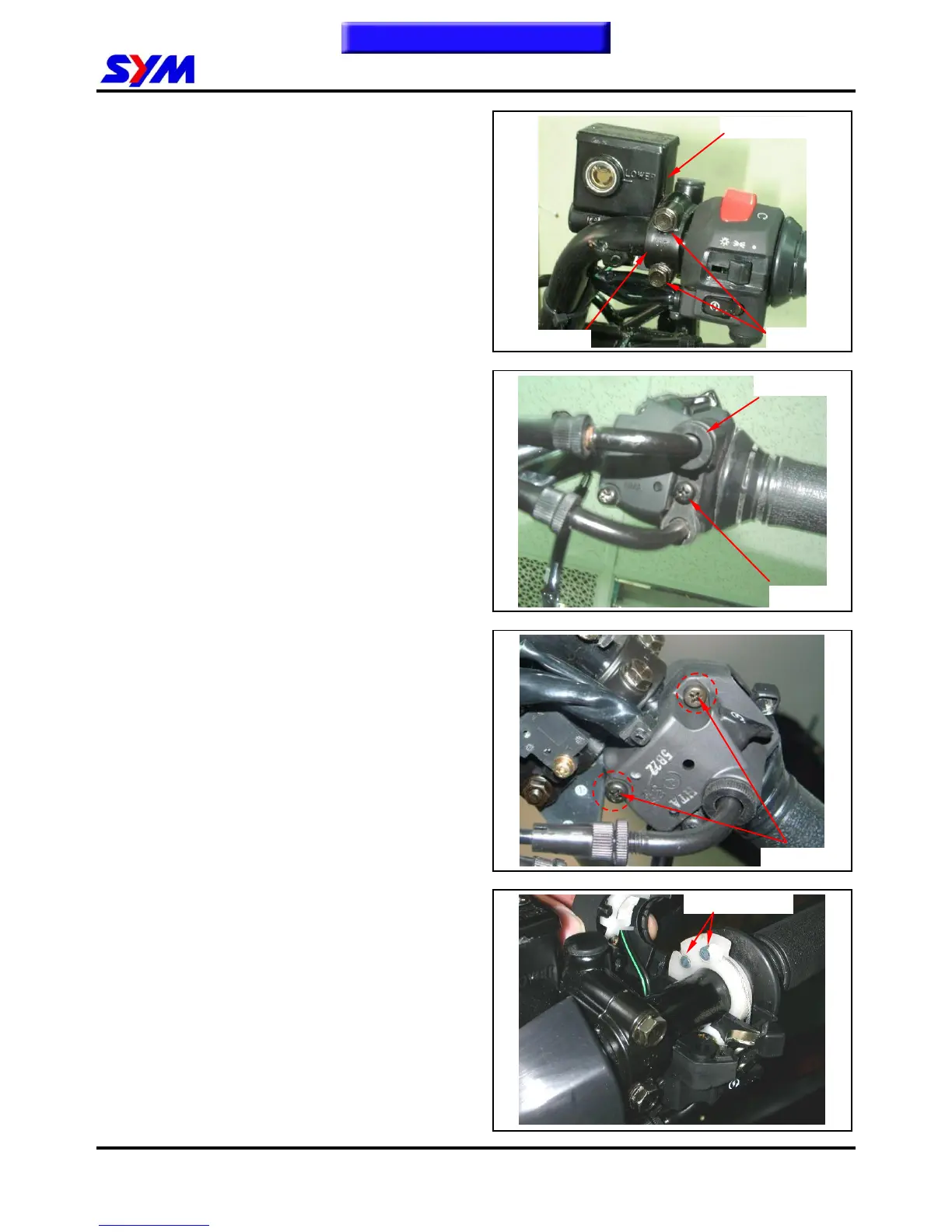

Remove the right and left handle side cover,

handle upper cover and front cover. (Refer to

chapter 13)

Loosen the lock bolts for the master cylinder of the

front brake.

Loosen the deceleration throttle cable fixing nut.

Loosen 1 screw from the acceleration throttle

fixing plate.

Loosen 2 screws from the throttle holder.

Remove throttle holder, handle switch, cables and

grip.

2 screws

2 bolts

Fixing nut

1 screw

Master cylinder

Holder

Throttle cables
