Sym JOYMAX 250 User Manual

10. Alternator / Starting Clutch
10-4

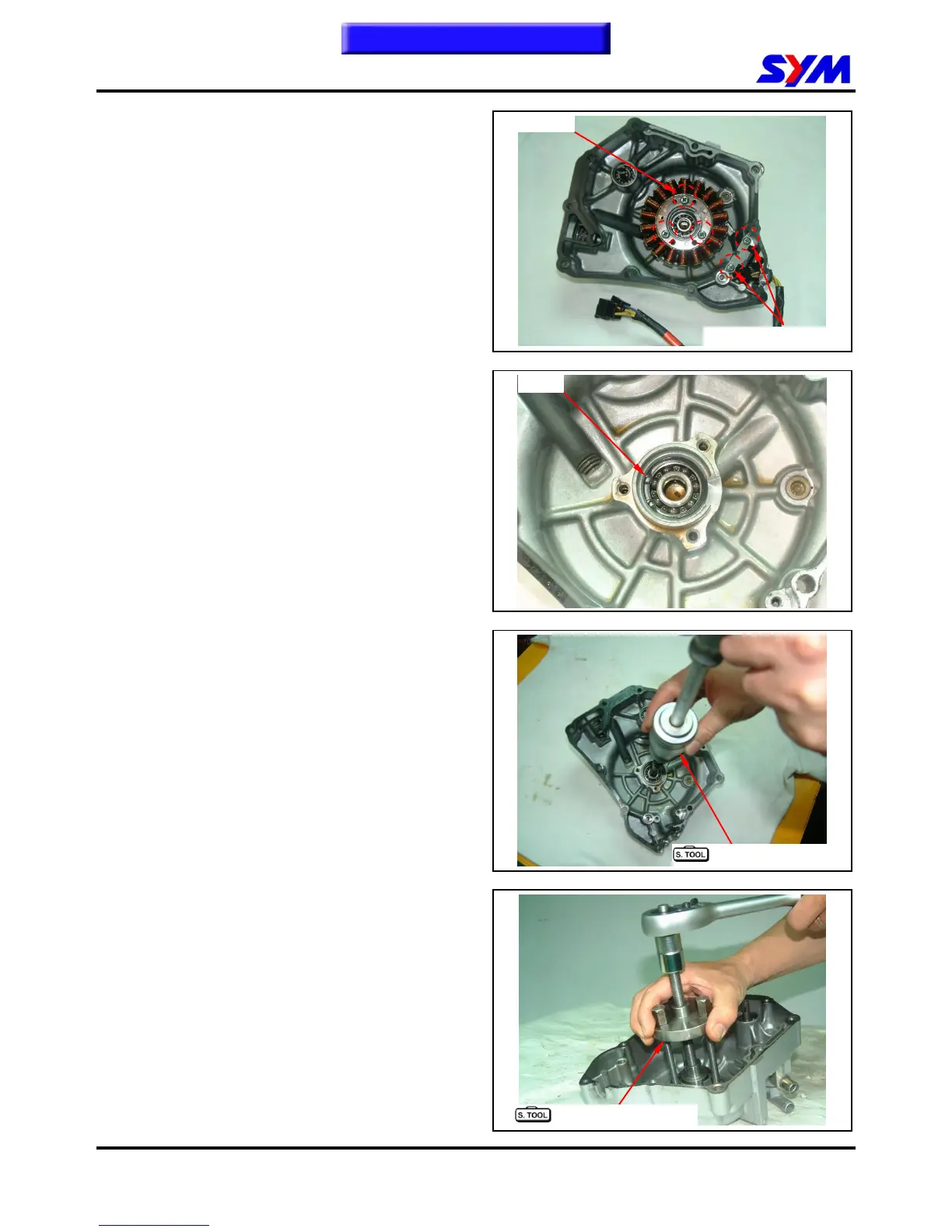

AC.G. Set Removal
Remove 2 mounting screws from pulse generator.
Remove 3 screws from right crankcase cover and
then remove generator coil set.
Right Cover Bearing
Rotate the bearing with finger to check if the
bearing rotation is in smooth and silent.
Check if the bearing outer parts are closed and
fixed. Replace it if necessary.
Remove the bearing 6201with inner bearing puller.
Special tool:
Inner bearing puller SYM-6204022
Install the bearing 6201 bearing with special tool.
Special tool:
Right crankcase cover bearing 6201 presser
SYM-9614000-HMA RB1 6201
To this chapter contents
Pulse generator screws
Cir clip
3 screws
Inner bearing puller
Inner bearing presser
