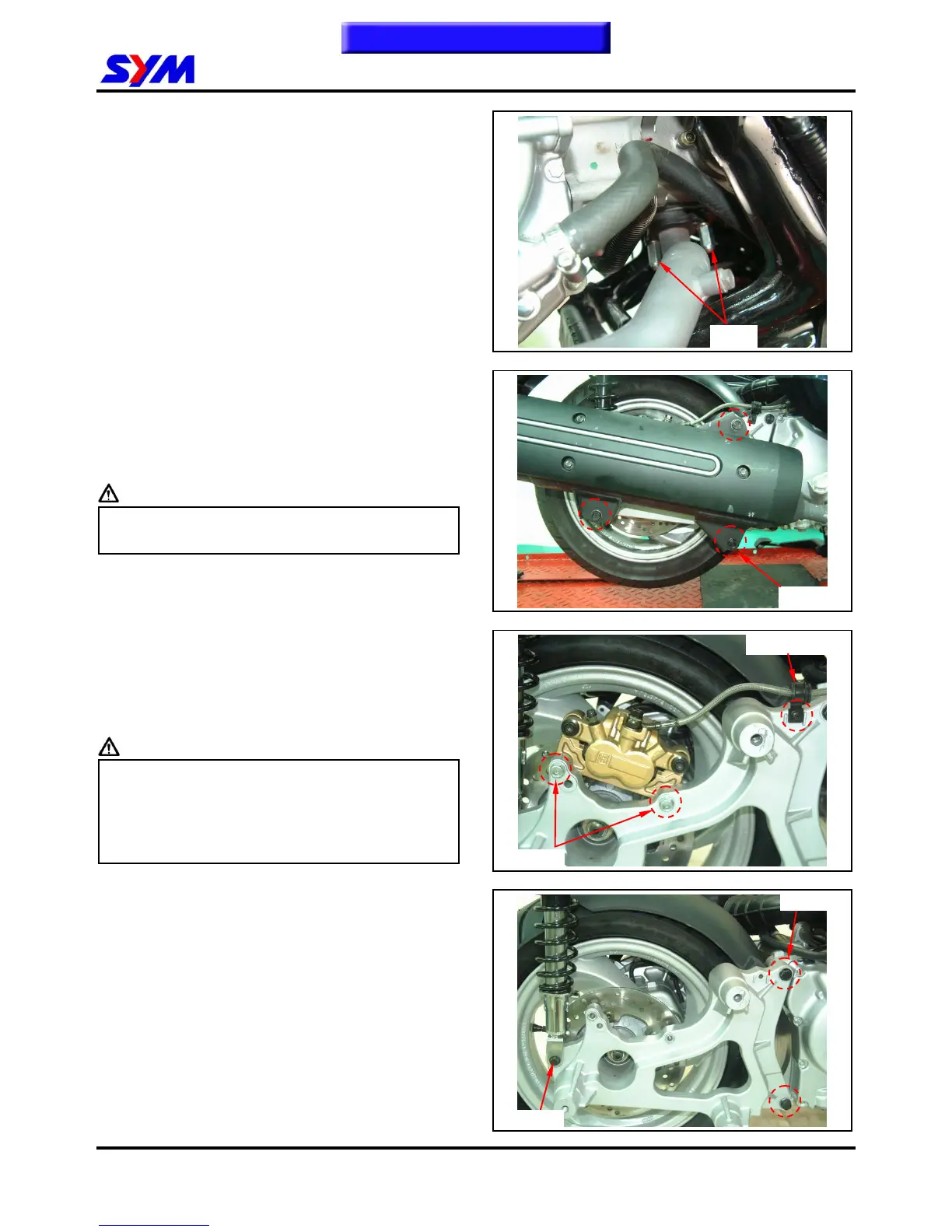

16. Rear Wheel / Rear Fork / Rear Cushion

16-3

Muffler

Removal

Loosen the 2 nuts from exhaust muffler front side.

Loosen the 3 mounting bolts by exhaust muffler

right side.

Remove exhaust muffler.

Installation

Install in reverse order of removal procedures.

Caution

 Replace the front side muffler pipe gasket if

worn or deformed.

Torque Value:

Muffler mounting bolt 3.2 ~ 3.8kgf-m

Muffler mounting nut 1.0 ~ 1.2kgf-m

Rear Wheel

Removal

Remove the exhaust muffler.

Remove the rear brake caliper (2 bolts) and brake

hose clamp (1 bolt).

Caution

 Care shall be taken not to push the brake

lever to avoid the brake pad being squeezed

out. In case that the brake pad is accidentally

squeezed out, use a screwdriver to force it

back to the place.

Remove the lower bolt of the right side rear

cushion.

Remove 2 bolts of the rear fork.

2 nuts

3 bolts

2 bolts

Hose clamp

To this chapter contents

2 bolts

1 bolt
