11. Crankcase / Crank
11-6

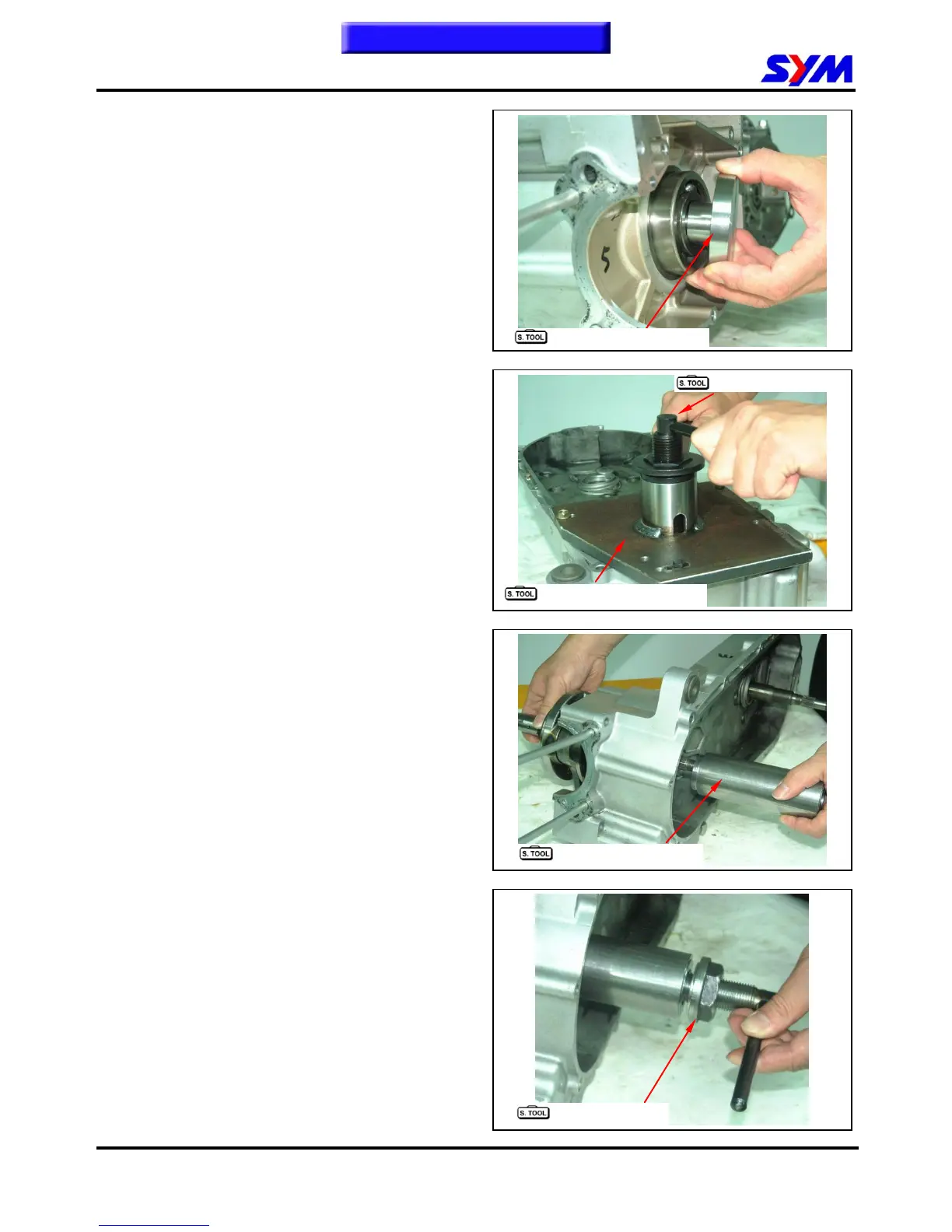

Assembly of Crankcase
Install new bearing and bearing puller onto left
crankcase bearing hole.
Special tool:
L. crank shaft bearing puller SYM-9100100
Install crank disassemble tool onto left crankcase.
Install left crank shaft puller into crank case
disassemble.
Hold left crank shaft puller, and turn the shaft
puller nut by clutch nut wrench to pull in crank
shaft bearing into left crankcase.
Special tool:
Crank case disassemble SYM-1120000-HMA
H9A
L. Crank shaft puller SYM-2341110-HMA
Clutch nut wrench SYM-9020200
Install crank shaft onto the left crankcase and
install crank shaft install socket.
Special tool:
Crank shaft install socket & oil seal driver
SYM-2341110- HMA RB1
Turn in the crank shaft puller spiral tooth to the left
crank shaft.
Special tool:
L. Crank shaft puller SYM-1130000-HMA H9A
