80 Installation TB9300 Installation and Operation Manual
© Tait International Limited April 2024
4.6.2 Connecting AC Power
The PMU is designed to accept a mains input of 88 to 264VAC at 45 to
65Hz. A standard 3-wire grounded socket outlet must be used to supply the
AC power. The socket outlet must be installed near the equipment and must
be easily accessible. This outlet should be connected to an AC power
supply capable of providing at least 600W. The requirements of two typical
AC supplies are given in the following table.
Your base station should come supplied
with a power supply cord to connect the
male IEC connector on the PMU to the

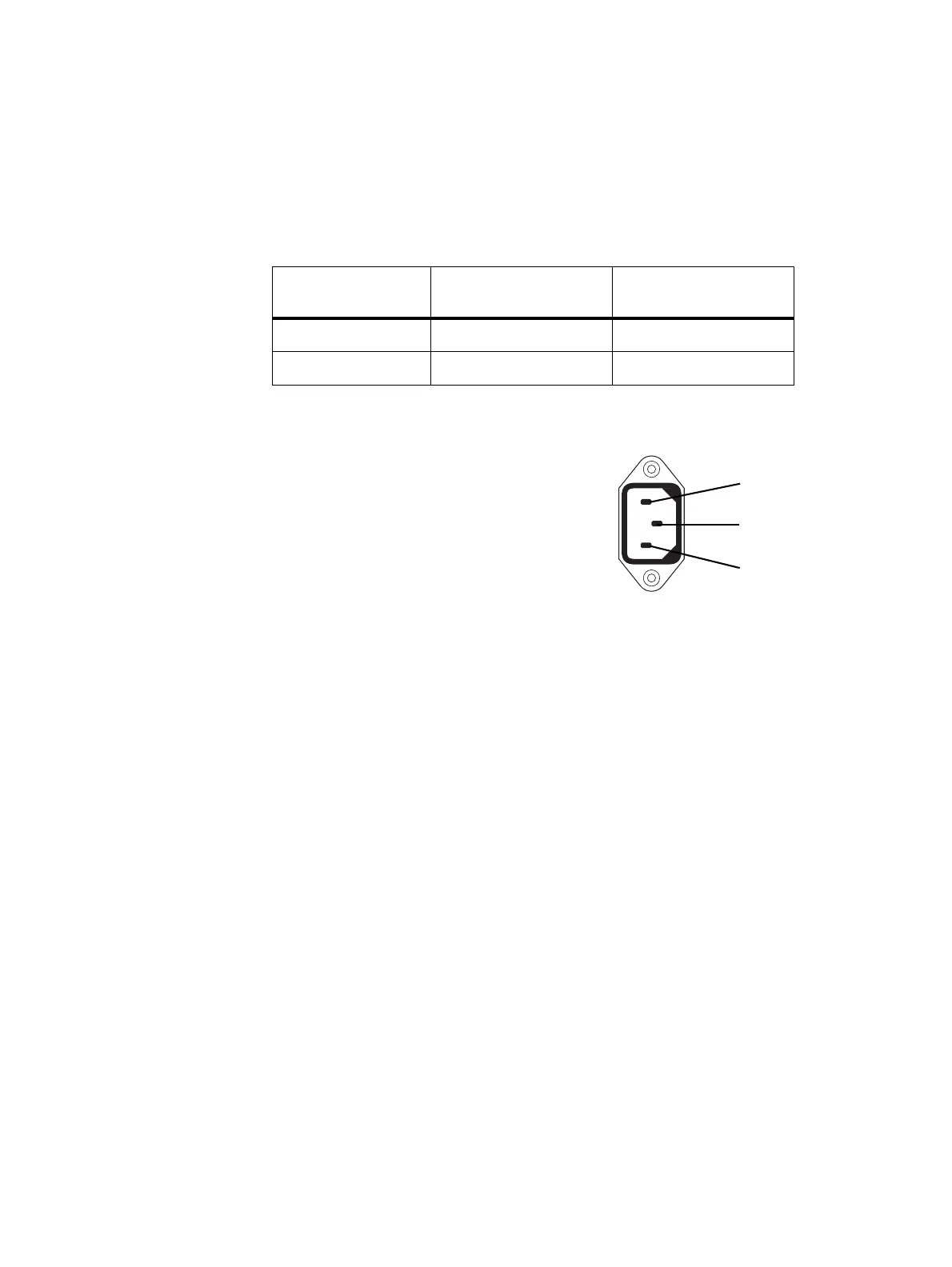

local AC supply. The pins of the IEC
connector on the PMU are identified at
right.
Nominal Supply Current Requirement
a
a. The actual current consumption of the base station will be lower than these re-
quirements (refer to the Specifications Manual for more information).
Circuit Breaker/Fuse
Rating
a
115 VAC 8 A 10 A
230VAC 4A 6A
ground
rear view
neutral
phase
