8 Gigabit Ethernet ports available on CGA4131 product are primarily used in conjunction
with Wi-Fi as primary SSID. In the case of router or bridge modes, all of these ports will be
set to router or bridge without independent control over ports. This feature provides the
customer with a flexibility to control and configure individual Gigabit Ethernet ports in either
bridge or router mode independent of each other. For example, a customer can have port 1
and port 2 in bridge mode while ports 3 to 8 are in router mode.
12.1 Procedure to configure Mixed mode
1. Set the rdkbRgIpMgmtLanMode.32 to Mixed mode (i.e. option 4)
2. There will 8 instances available for rdkbRgIpMgmtLanPortMode dedicated to 8
Ethernet ports. (By default all the port will be in router mode).
3. Set the rdkbRgIpMgmtLanPortMode.x (x means the Ethernet port i.e. 1, 2...8) to
4. Connect a LAN PC to that port and check for the IP. It should get the public DHCP
5. At the same time, all other ports except x should be in router mode.
12.2 SNMP provisioning for Mixed mode

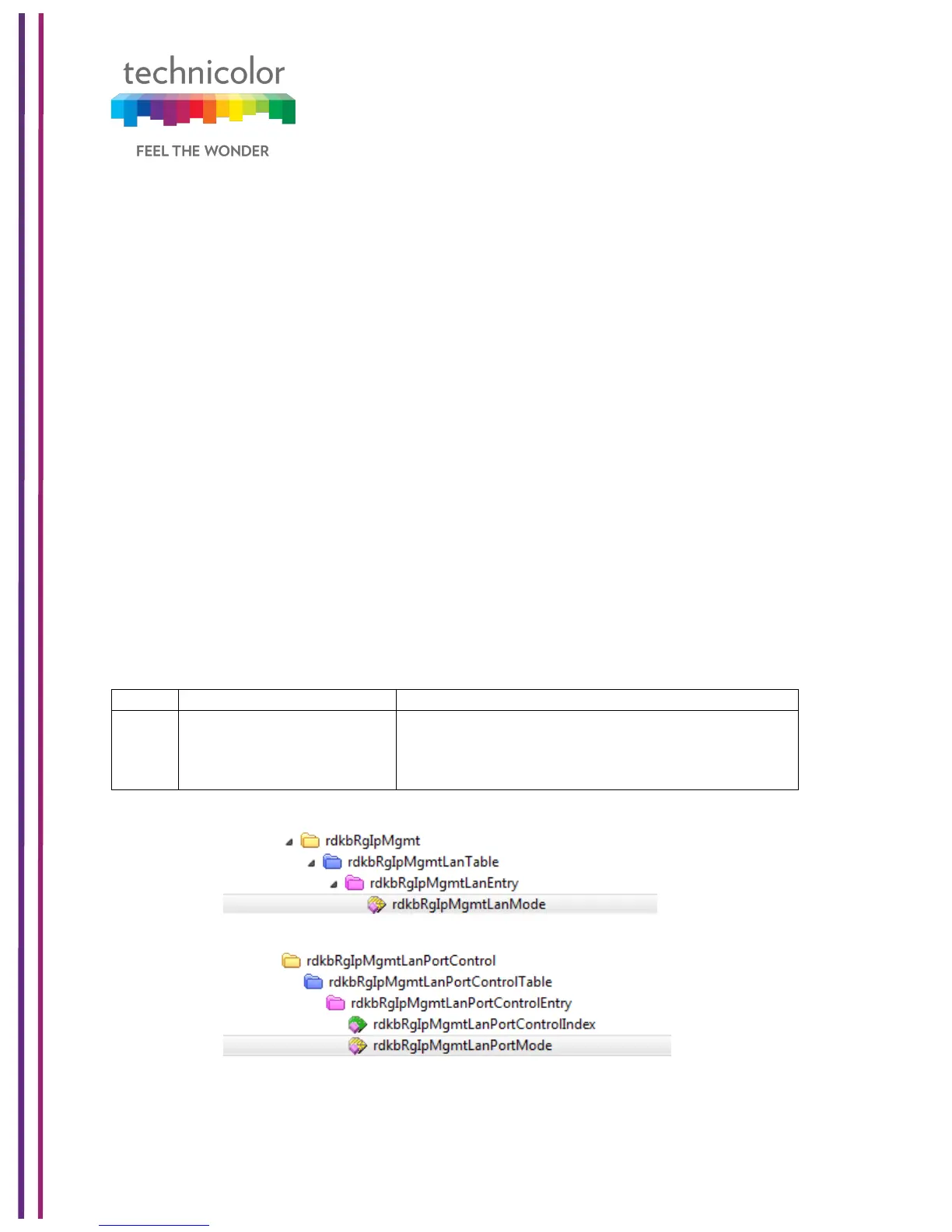

The following MIBs are used for Mixed mode configuration:
Each physical LAN port can either be controlled
as bridge or router. The
rdkbRgIpMgmtLanPortMode MIB only works
when RdkbRgIpMgmtLanMode.32=4(Mixed).
