Technicolor CGA4131 User Manual

3/6/2018 Proprietary and Confidential - Technicolor 36
6.3 WAN
6.3.1 User provisioning for WAN
Connection Tab / WAN
The page displays WAN configuration information. Click on the Connection tab then click on
the WAN tab. The page also allows the setting of WAN configuration - Working Mode (Router
Mode, Bridged Mode), Connection Mode (DHCP, Static IP), Host Name and Domain Name.

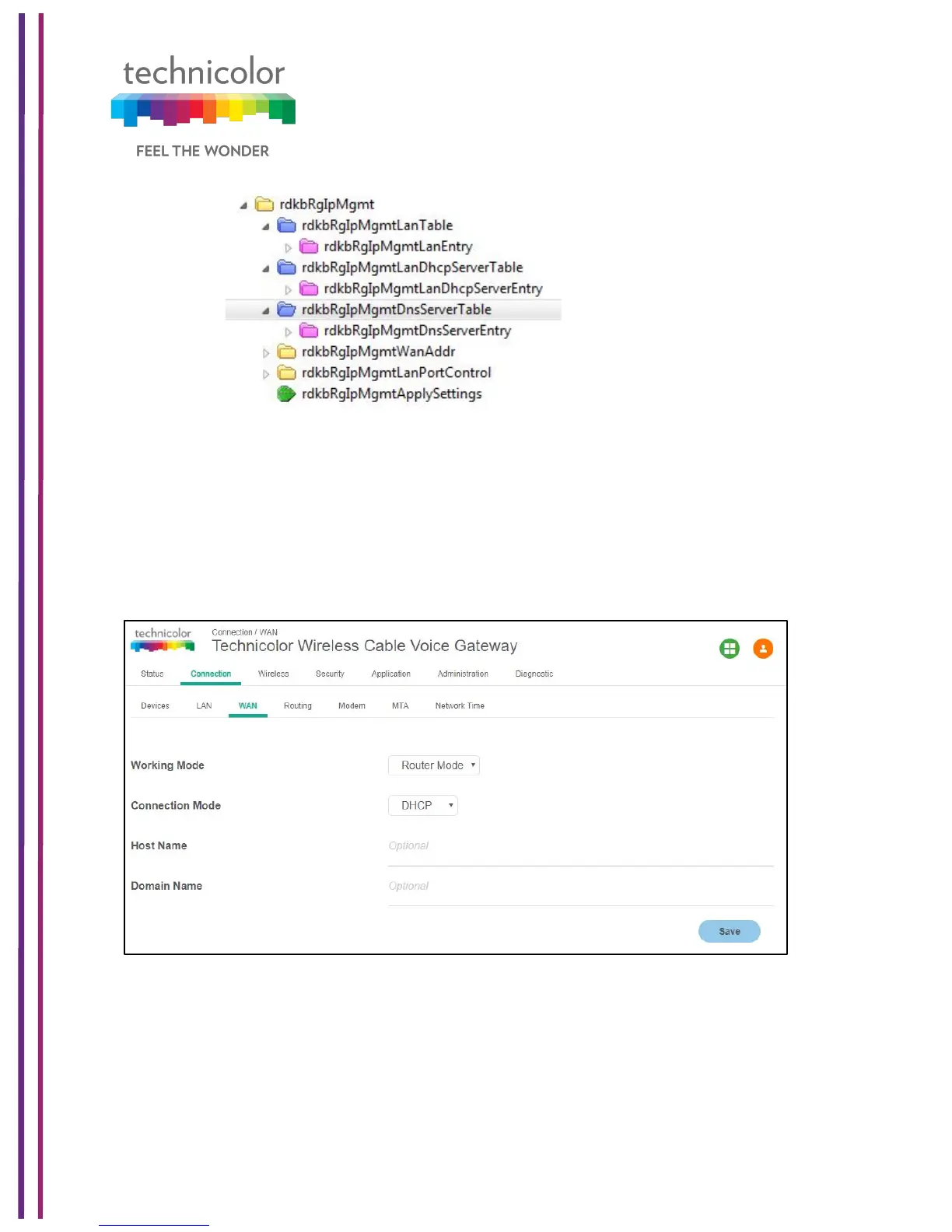

Figure 6.3
When the gateway WAN provisioning is enabled with DHCP, IPv4 and IPv6 DHCP client on
the gateway will initiate DHCP request to get the eRouter / WAN IP for the gateway. In case
of DHCP v6, the eRouter IP is got from the MSO network through IP Prefix delegation.

Technicolor CGA4131 Specifications

General

Brand	Technicolor
Model	CGA4131
Category	Gateway
Language	English
