Using cursors to take manual measurements

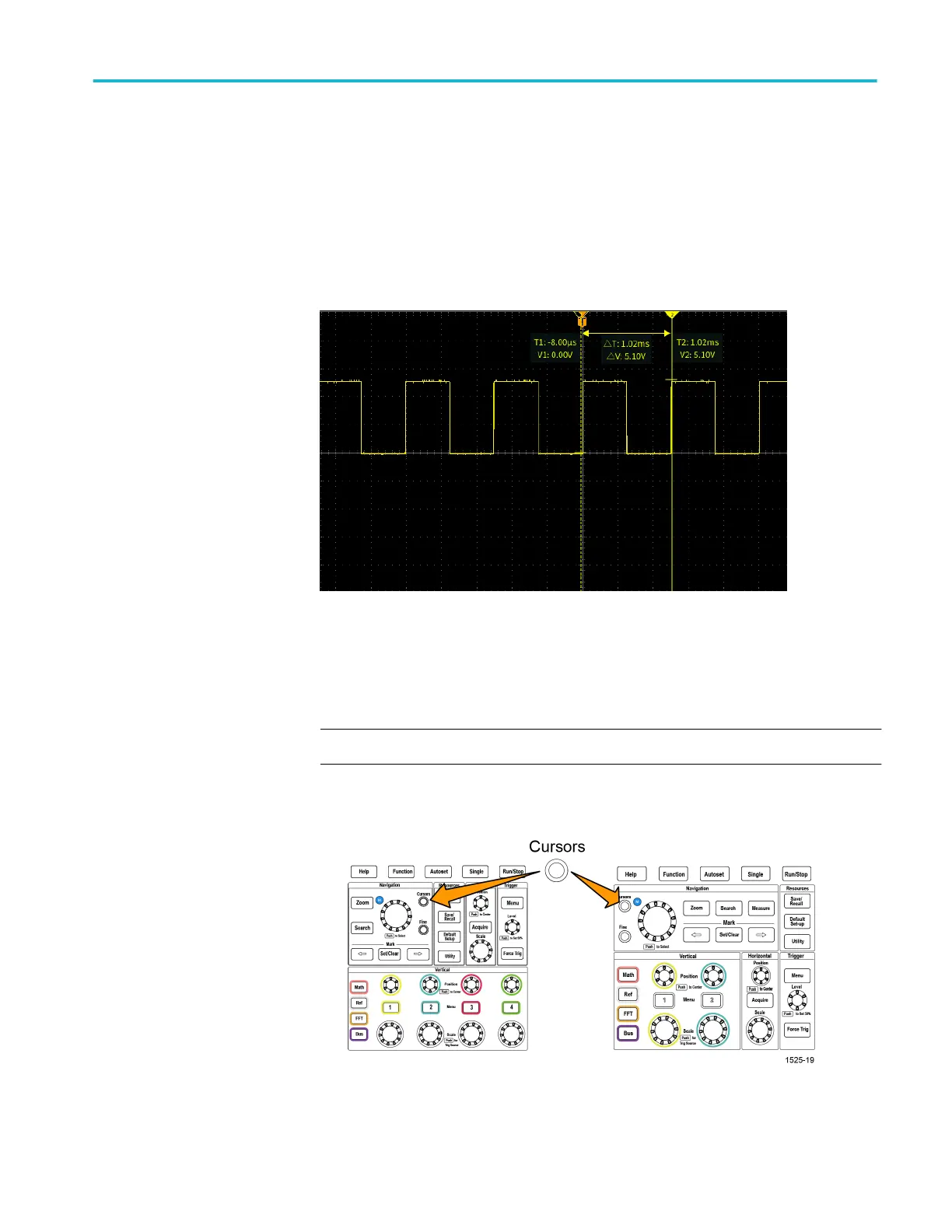

Cursors are on-screen vertical and horizontal lines that you position on a
waveform to take measurements. The cursors have readouts that show the value
at their position or where they cross a waveform. Cursors also show the absolute
difference measurement value (or delta) between two cursor positions.
Cursor readouts appear next to the cursors. The readouts show the signal values
at the current cursor positions. The readouts also show the difference (delta,
marked with a Δ symbol) between the cursor measurements. The oscilloscope
always shows the readouts when the cursors are turned on.
NOTE. Cursors are not available in XY display mode.
1. Push Cursors to display two vertical Time cursors by default.
The color of the cursors indicates the channel on which they are taking
measurements.
Analyzing a waveform
TBS2000B Series Oscilloscopes User Manual 103
