Performance Verification
4-20
TLA5000 Series Service Manual
Power on the test fixture, logic analyzer, and other test equipment. Allow all test
equipment to warm up for 30 minutes before continuing.
Complete the following steps to run the procedures:
1. If you have not already done so, exit the TLA application.
2. Double-click the TLACAL icon on the desktop. An application window
similar to Figure 4--2 on page 4--5 appears.
3. Click the Certification button to start the software. A Certification dialog
box similar to Figure 4 --7 on page 4--20 appears.

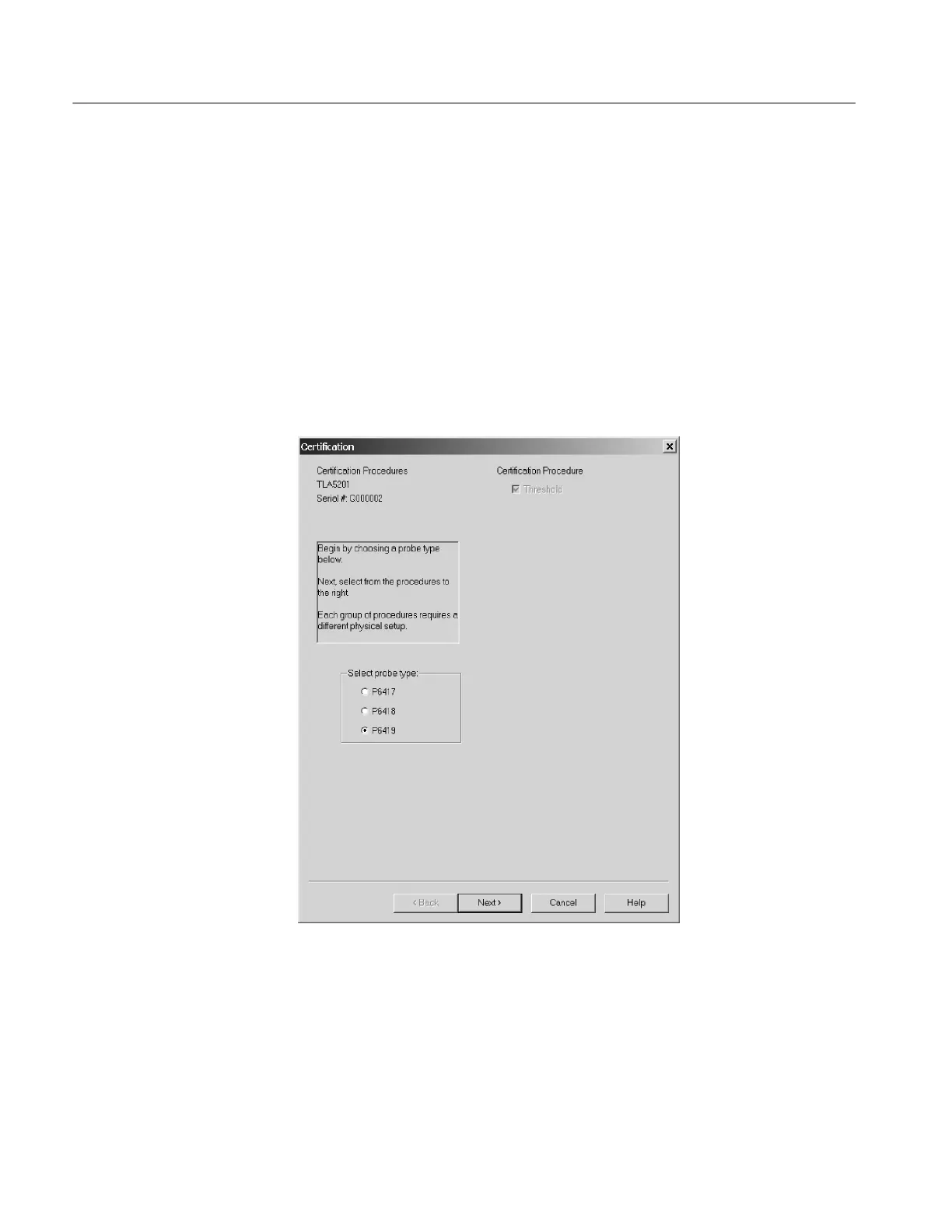

Figure 4- 7: Default Certification procedure dialog box
4. Select the probe type near the bottom of the dialog box.
The Threshold Certification Procedure is selected by default.
5. Click the Next button at the bottom of the dialog box to display the probe
connection instructions. Follow the on-screen instructions to connect the
Start the Software
To Next Page
