Texas Instruments LMK04828 User Manual

LMK04821 , LMK04826 , LMK04828
SNAS605AR –MARCH 2013–REVISED DECEMBER 2015 www.ti.com

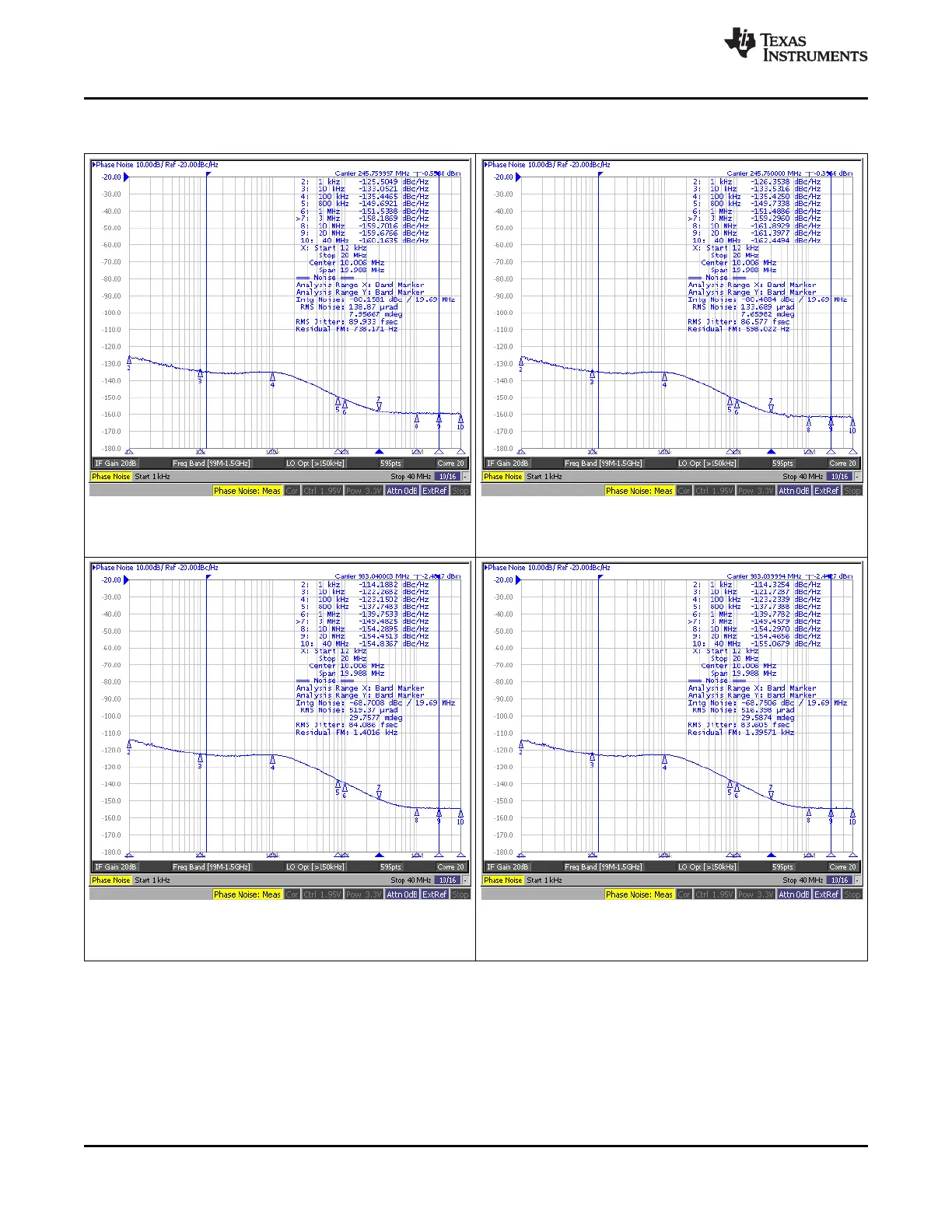

10.2.3.3 Application Curves
Figure 25. DCLKout0, 245.76 MHz Figure 26. DCLKout2, 245.76 MHz
LVPECL20 /w 240 Ω emitter resistors LVPECL20 /w 240 Ω emitter resistors
DCLKout0_1_IDL = 1, DCLKout0_1_ODL = 1 DCLKout2_3_IDL = 1, DCLKout2_3_ODL = 1
Figure 27. DCLKout4, 983.04 MHz Figure 28. DCLKout6, 983.04 MHz
LVPECL16 /w 240 Ω emitter resistors LVPECL16 /w 240 Ω emitter resistors
DCLKout0_1_IDL = 1, DCLKout0_1_ODL = 0 DCLKout0_1_IDL = 1, DCLKout0_1_ODL = 0
100 Submit Documentation Feedback Copyright © 2013–2015, Texas Instruments Incorporated
Product Folder Links: LMK04821 LMK04826 LMK04828
