TG-VI Controller Description

Keypad

This section describes the keypad keys that control the

operating system.

1. S

ELECT Key 4. ENTER Key

2. U

P Key 5. TK LOGO Key

3. D

OWN Key

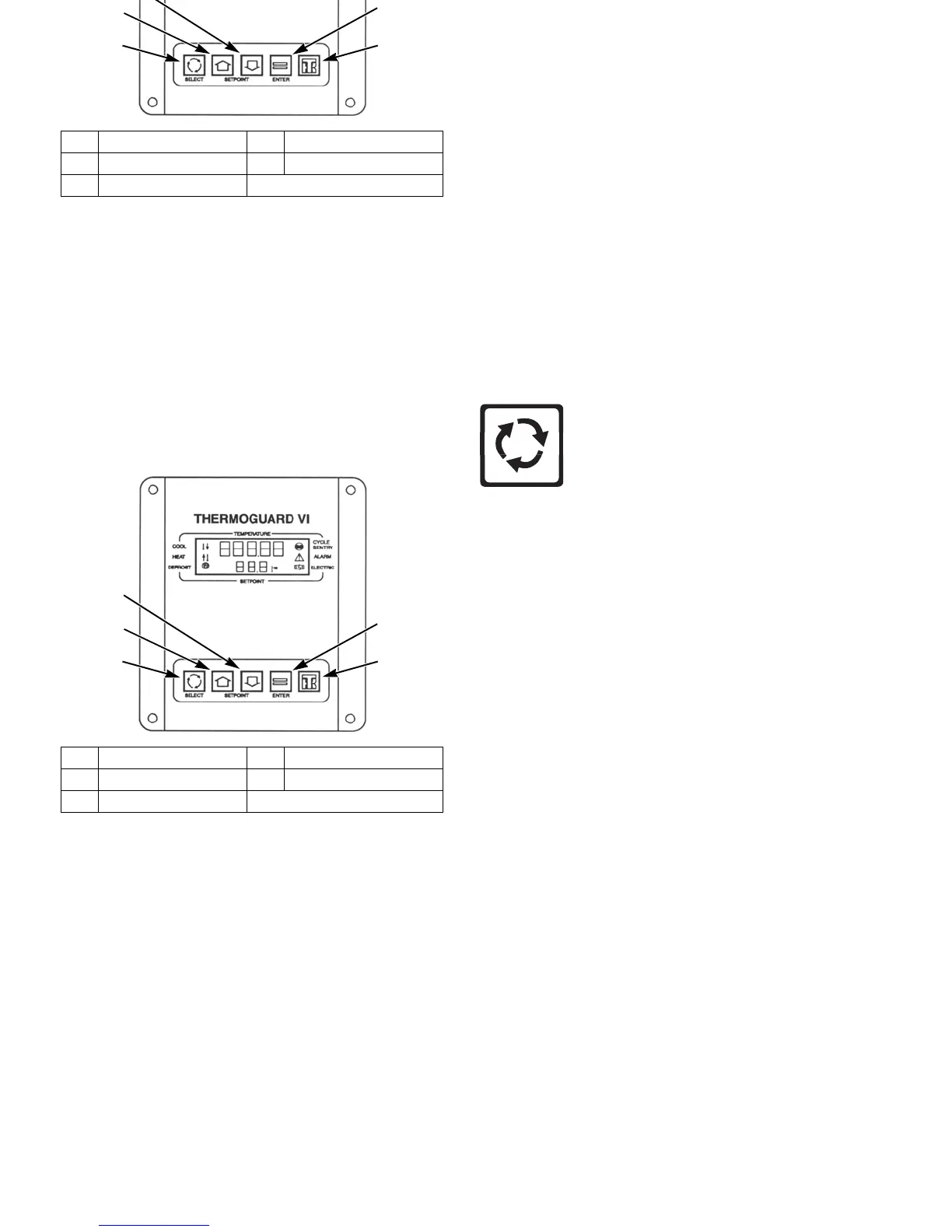

Figure 17: Keypad

ANA03

SELECT Key: Scrolls through the following

screens in the Standard Display mode:

[Pnt]: Print latest trip report. Displays only if

DAS is connected and Print Shortcut is

enabled.

[Alr]: Alarm codes, if any.

[DEF]: Defrost prompt.

[CYCLS]: CYCLE-SENTRY mode. Upper

display shows [CYCLS], lower display shows

[YES] if on, [no] if off.

[dIS]: Discharge air temperature.

[tLH]: Total unit hours.

[EnH]: Diesel engine hours.

Hr4]: : Hourmeter 4 hours. Displays only if

hourmeter 4 is enabled.

Hr5]: : Hourmeter 5 hours. Displays only if

hourmeter 5 is enabled.
