Unit Operation with TG-VI Controller

Control Panel

Two sets of controls are used to operate a unit that has a TG-VI

Microprocessor Controller. The Microprocessor control panel

contains the Display Screen (2) and Keypad (3) used to control

microprocessor operations.

Basic operation of the unit is controlled with the On/Off

switch (6) located on the Switch Panel.

On/Off Switch

The On/Off switch energizes the electrical control system for

the unit. In the On position, the unit will operate under the

control of the microprocessor. In the Off position, the electric

control system is de-energized and the unit will not operate.

WARNING: Do not operate the unit until you are

completely familiar with the location and function of

each control.

WARNING: When the On/Off switch is in the On

position, the unit may start at any time without prior

warning.

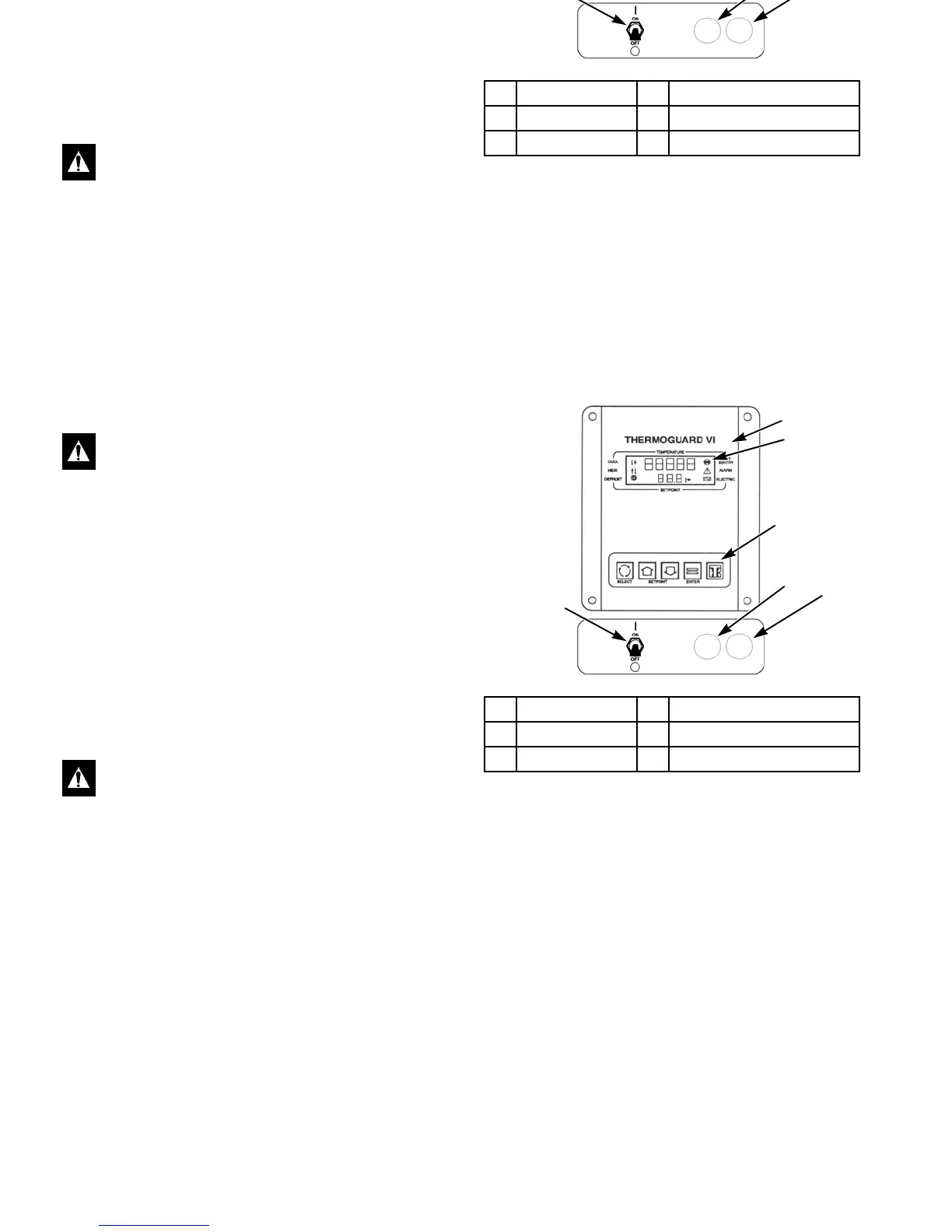

1. Control Panel 4. Computer Port (Optional)

2. Display 5. Printer Port (Optional)

3. Keypad 6. On/Off Switch

Figure 20: Control and Switch Panels

ANA03

AJA1070

COMPUTER PRINTER
