HYDRAULIC SYSTEM
6-52 Rev. 000 TX525 Service Manual

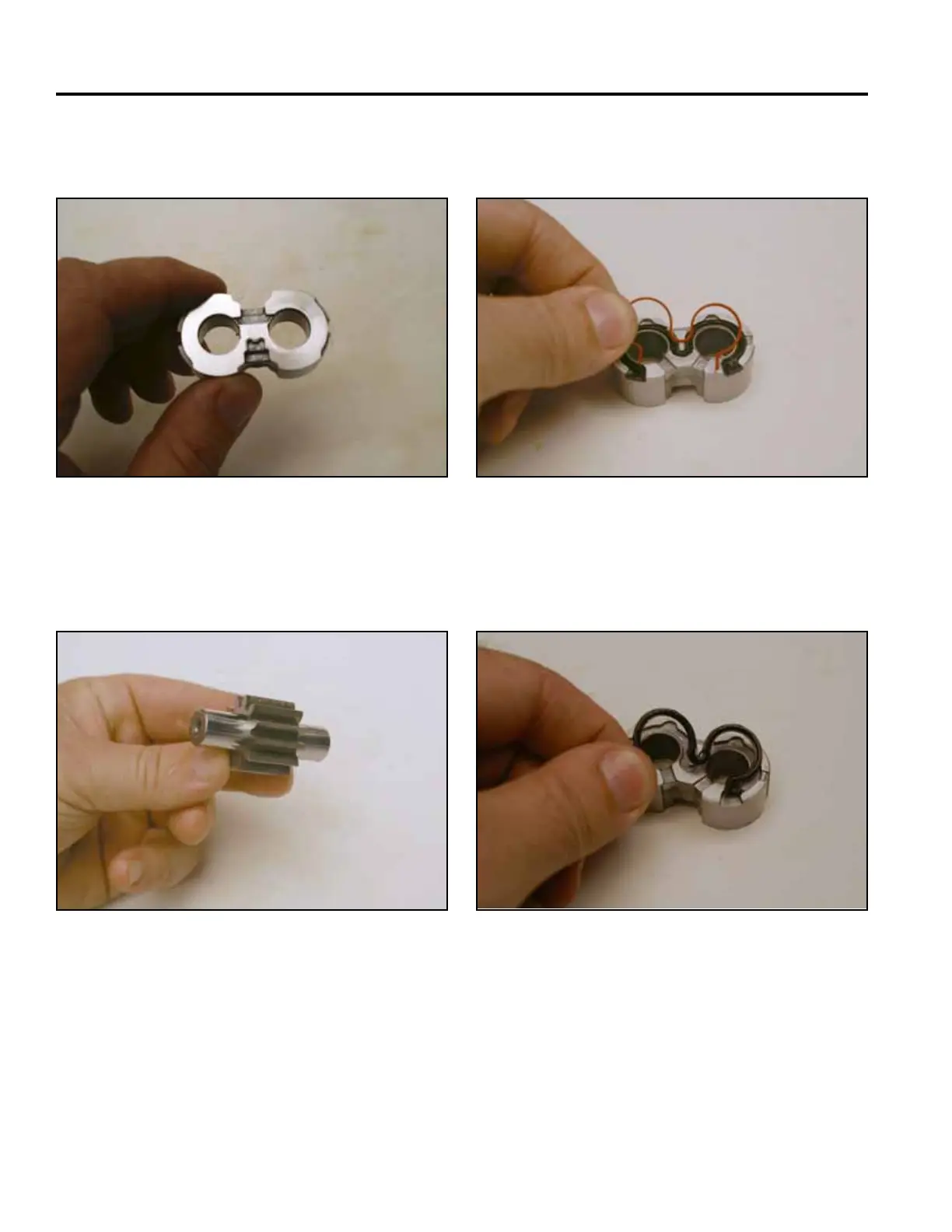

4. Inspect the gear surfaces of both the bushings for
damage (Fig. 1026).
6. Remove the back-up ring from both of the bushings
(Fig. 1028).
Fig 1026 PICT-2870a Fig 1028 PICT-2874a
7. Remove the gear seal from the both of the bushings
(Fig. 1029).
5. Inspect the drive and driven gears for damage (Fig.
1027).
Fig 1029 PICT-2875a Fig 1027 PICT-2876a
