5. TRANSMISSION SEQUENCE
This section describes the outline of the transmission sequence.
5.1 INITIALIZATION
Writable characters, logo, and PC interface commands must be stored before the label issue
operation.
(1) Storing writable characters and logo
NOTES: (1) The storage of PC commands is only performed if it is required.
(2) When the SD card is used, and the SD Card Format Command is not sent before
storing already stored writable characters or logos, memory will be taken up with every
such storing.
(3) When the SD card is used, and another operation (storing PC interface commands or
label issue operation) is performed after storing writable characters or logos, the image
buffer will be cleared automatically.
(4) If another storing operation does not take place after storing writable characters or
logos, the printer automatically enters the online mode (label issue operation) after
about 10 seconds. In this case, when the SD card is used, the image buffer will be
cleared automatically.

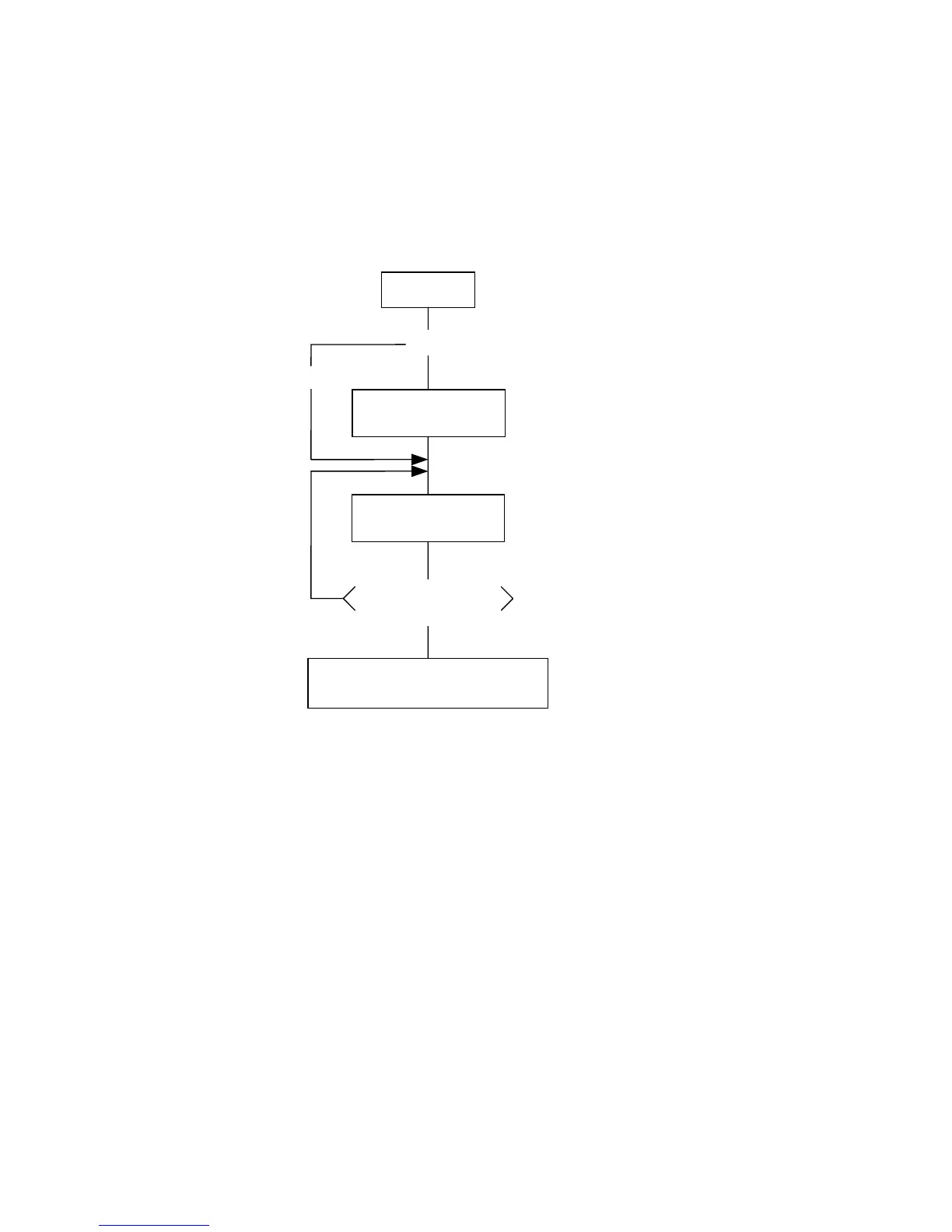

Power ON
<New>
Flash Memory
Format Command
Bit Map Writable
Character Command
Yes
(Add/change)
[ESC] J1: Formats the flash memory on the
memory board.
Completion of storing
all characters
 Storing PC interface commands
 Label issue operation
No
Yes
[ESC] XD: Stores writable characters or a
logo on the flash memory board.
No
To Next Page
