(13) Data string to be printed
Drawing data can be programmed by designating the number of digits after the symbol
“=.” Up to 255 digits can be printed. If the number of digits exceeds 255, the excessive
data will be discarded.
For the character code table, refer to the character code table mentioned later.
(14) Link field No.
The link field No. can be programmed by designating it after the symbol “;”. After the link
field No. is designated using the Format Command, the data strings are linked by the Link
Field Data Command to draw an image.
Up to 20 fields can be linked.
The following shows an example of linked fields on the two continuous labels.
[Format Command]
[ESC] PC01;........................ ; 01 [LF] [NUL] : Link field No. 1 is designated.
[ESC] PC02;........................ ; 03 [LF] [NUL] : Link field No. 3 is designated.
[ESC] PC03;........................ ; 04 [LF] [NUL] : Link field No. 4 is designated.
[ESC] XB01; ........................ ; 03, 04 [LF] [NUL] : Link fields No. 3 and No. 4 are
designated.
[ESC] PC04;........................ ; 02 [LF] [NUL] : Link field No. 2 is designated.
[ESC] PC05;........................ ; 03 [LF] [NUL] : Link field No. 3 is designated.
[ESC] PC06;........................ ; 04 [LF] [NUL] : Link field No. 4 is designated.
[ESC] XB02; ........................ ; 03, 04 [LF] [NUL] : Link fields No. 3 and No. 4 are
designated.

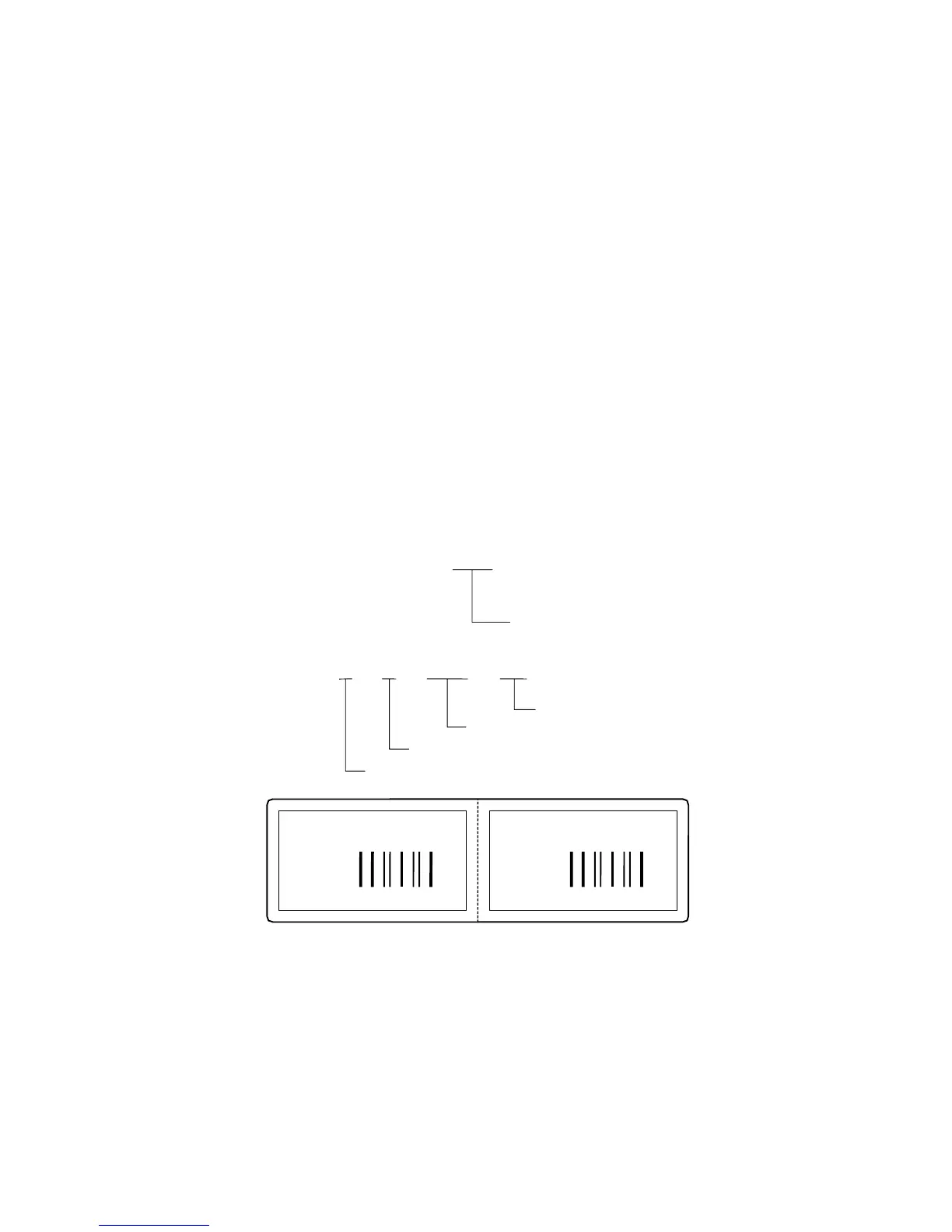

Designating link field No.
[Data Command]
[ESC] RC; A [LF] B [LF] ABCD [LF] 001 [LF] [NUL]
Link field No. 4
Link field No. 3
Link field No. 2
Link field No. 1
A
ABCD
001
*ABCD001*
B
ABCD
001
*ABCD001*
