6.3.6 LINE FORMAT COMMAND [ESC] LC
Function Sets the line format and draws the line.
Format [ESC] LC; aaaa, bbbb, cccc, dddd, e, f (, ggg) [LF] [NUL]
Term aaaa: Start point X-coordinate
Fixed as 4 digits (in 0.1 mm units)
bbbb: Start point Y-coordinate
4 or 5 digits (in 0.1 mm units)
cccc: End point X-coordinate
Fixed as 4 digits (in 0.1 mm units)
dddd: End point Y-coordinate
4 or 5 digits (in 0.1 mm units)
e: Type of line
0: Line (horizontal, vertical, slant)
1: Rectangle
f: No. of line width dots
1 to 9 (in 0.1 mm units)
ggg: Radius of rounded corners of rectangles
(Omissible. If omitted, the chamfering process for rectangle corners is not
performed.)
Fixed as 3 digits (in 0.1 mm units)
Explanation

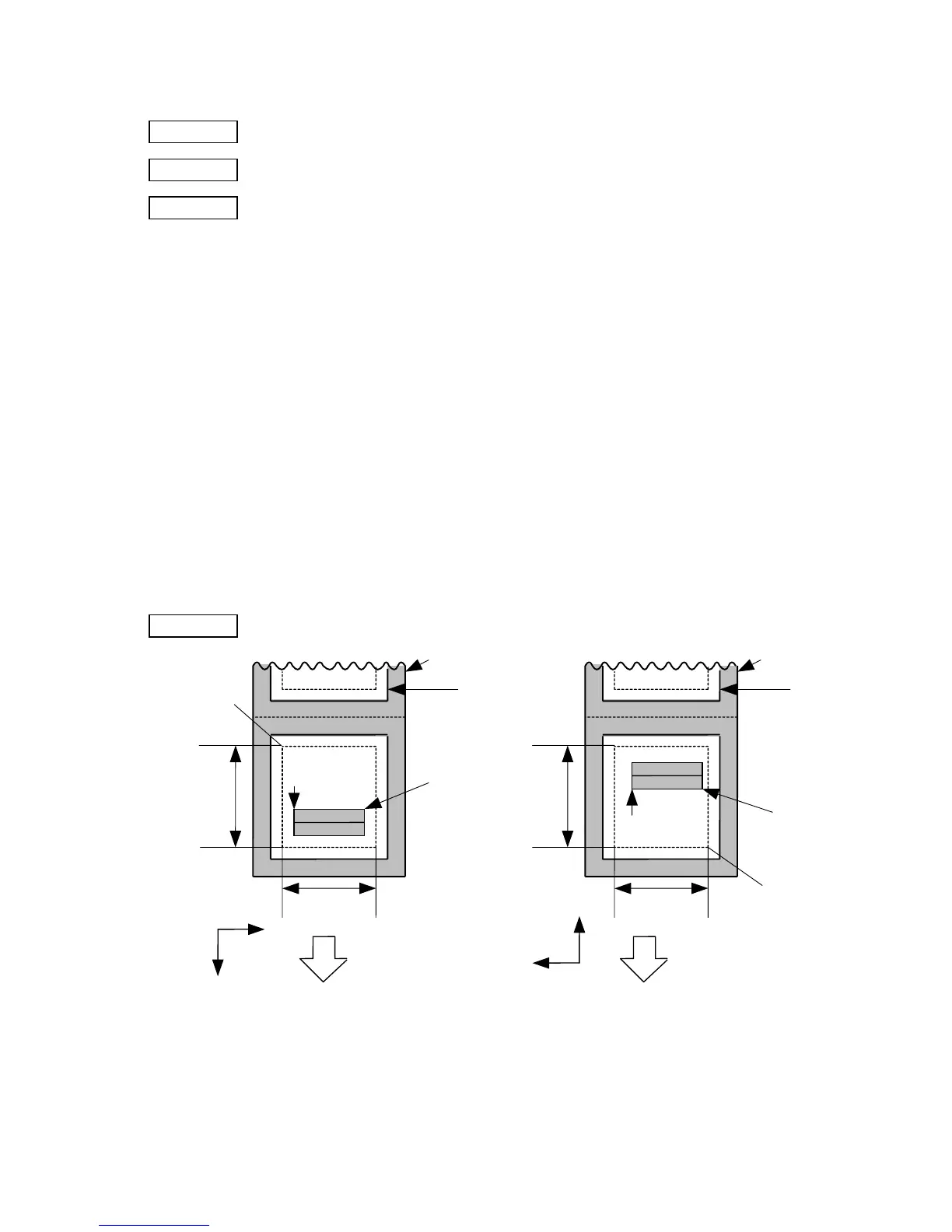

[Print direction: Printing bottom first] [Print direction: Printing top first]
Backing paper
Label
Paper feed direction
0
X
Y
Backing paper
Effective
print length
Origin of
coordinates
(0, 0)
Effective
print width
Start point
End
point
Paper feed direction
Label
Origin of
coordinates
(0, 0)
Effective
print width
End
point
Start
point
Effective
print length
X
0
Y
