Explanation (1) Bar code number
When drawing by the Data Command ([ESC] RB), the format designated by the
bar code is selected.
(2) Print origin of coordinates
The print origin of coordinates must be set so that the result of bar code drawing will
be within the effective print area set by the Label Size Set Command ([ESC] D).
[Effective print area] [mm]
Model 203 dpi 300 dpi
Item Issue mode Batch Strip Cutter Batch Strip Cutter
Min. 13 13
Effective print width
Max. 108± 0.2 105.7± 0.2
Min. 6 21.4 17.4 6 21.4 17.4
Label
Max. 995 148.2 991 453.2 148.2 449.2
Min. 8 --- 25.4 10 --- 25.4
Effective print
length
Tag
Max. 997 --- 997 455.2 --- 455.2
Label
Paper feed direction
0
X
Y

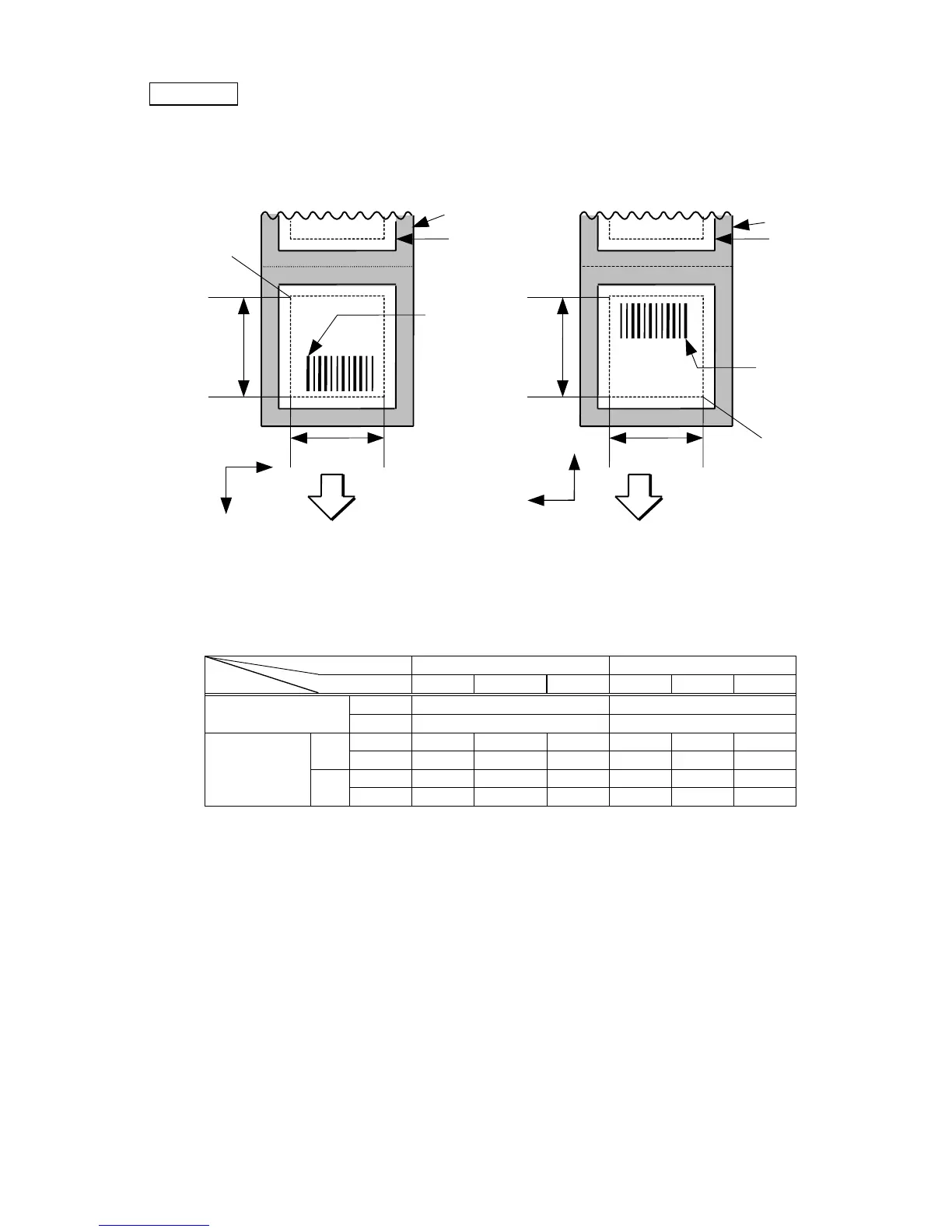

Effective
print
length
Origin of
coordinates
(0, 0)
Effective
print width
[Print direction: Printing bottom first]
Print origin o
f
coordinates
Backing paper
Backing paper
Paper feed direction
0
X
Y
Label
Effective
print
length
Origin of
coordinates
(0, 0)
Effective
print width
[Print direction: Printing top first]
Print origin o
f
coordinates
