- 79 -
(3)

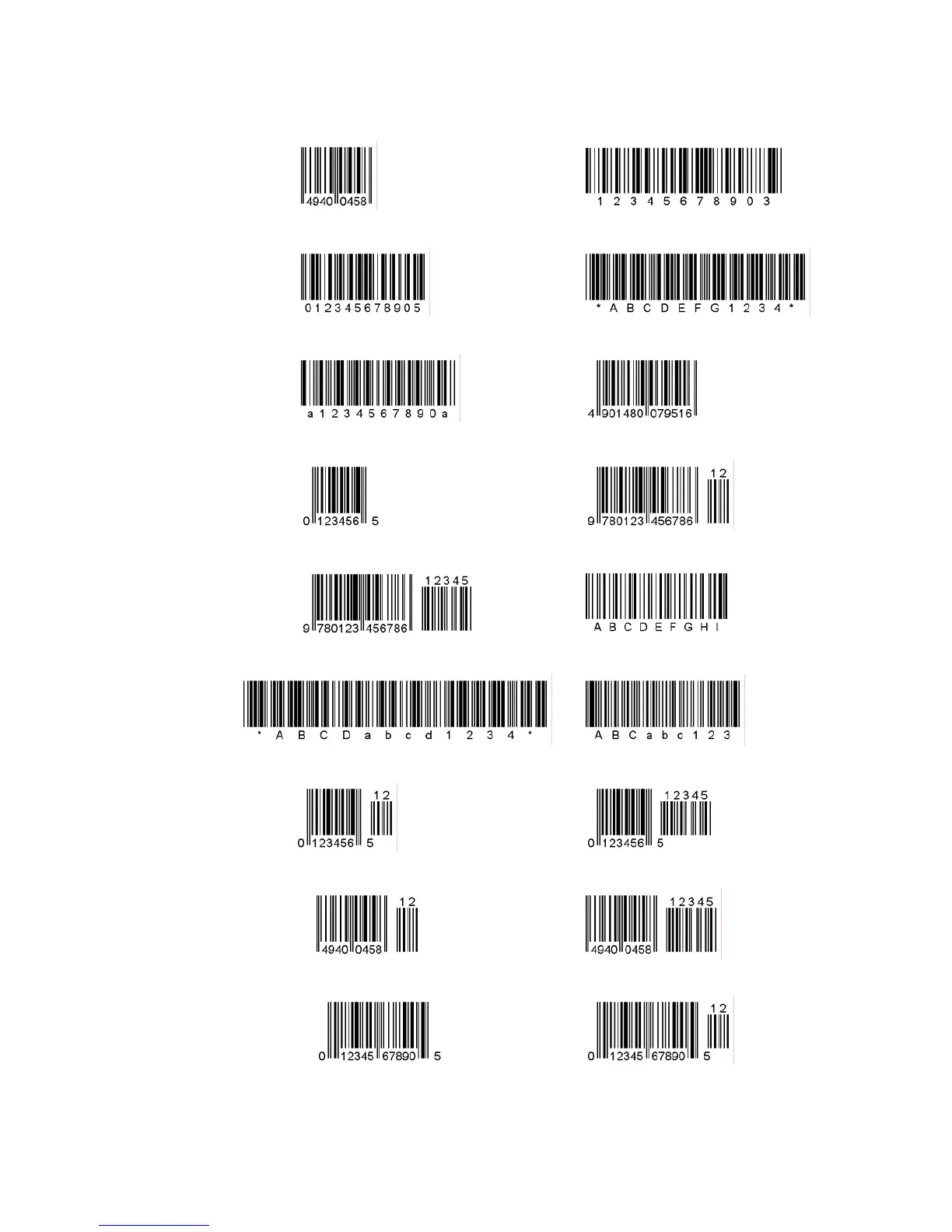

Type of bar code
0:
JAN8,
EAN8
1:
MSI
2:
Interleaved 2 of 5
3:
CODE39 (standard)
4:
NW7
5:
JAN13,
EAN13
6:
UPC-E
7:
EAN13 + 2 digits
8:
EAN13 +5 digits
9:
A: CODE128
B:
CODE39 (Full ASCII)
C:
CODE93
G:
UPC-E + 2 digits
H:
UPC-E + 5 digits
I:
EAN8 + 2 digits
J:
EAN8 + 5 digits
K:
UPC-A
L:
UPC-A + 2 digits
82
84
